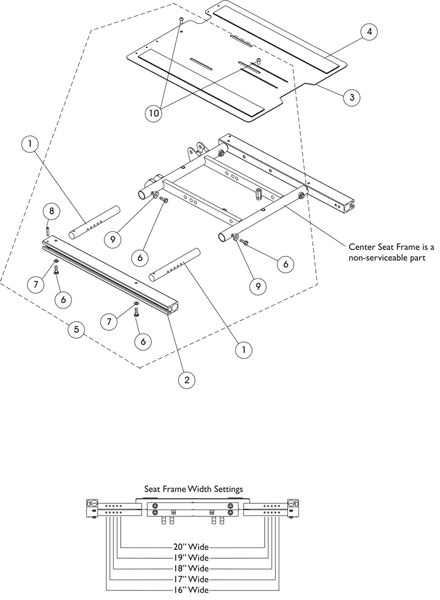

Frame - Seat & Seat Pan w/ Hdwr. (16-20" Wide)

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1122475

Crossbar, Seat Frame (16" - 20" W)

$29.00

Create/add to Wishlist

1142951

Rail, Seat Frame (For 12 - 19" D Conventional)

$119.00

Create/add to Wishlist

1142952

Rail, Seat Frame (For 19 - 22" D Conventional)

$154.00

Create/add to Wishlist

1142953

Rail, Seat Frame (For 16 - 19" D Contoura)

$201.00

Create/add to Wishlist

1142954

Rail, Seat Frame (For 19 - 22" D Contoura)

$201.00

Create/add to Wishlist

1143748

Pan, Seat, with Hook and Loop Fasteners (16 - 20" W x 16 - 19" D)

$229.00

Create/add to Wishlist

1143789

Pan, Seat, with Hook and Loop Fasteners (16 - 20" W x 19 - 22" D)

$229.00

Create/add to Wishlist

1043082

Hook Fastener with Adhesive Back (2" W x 18" L)

$12.00

Create/add to Wishlist

1044580

Loop Fastener with Adhesive Back (2" W x 18" L)

$12.00

Create/add to Wishlist

1043084

Hook Fastener with Adhesive back (2" W x 22" L)

$12.00

Create/add to Wishlist

1044584

Loop Fastener with Adhesive back (2" W x 22" L)

$12.00

Create/add to Wishlist

1144581

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
6	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
7	Washer (1/4 x 1/2 x 1/16")	1	4
8	NLA - Pin, Roll (3/16 x 1")	1	2
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
10	Screw, Socket Button (1/4-20 x 3/4")	1	2
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
8	Washer (1/4 x 1/2 x 1/16")	1	4
9	NLA - Pin, Roll (3/16 x 1")	1	2
10	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
11	Screw, Socket Button (1/4-20 x 3/4")	1	2
11	Screw, Socket Button (1/4-20 x 3/4")	1	2
6	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
7	Washer (1/4 x 1/2 x 1/16")	1	4
8	NLA - Pin, Roll (3/16 x 1")	1	2
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
10	Screw, Socket Button (1/4-20 x 3/4")	1	2
6	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
7	Washer (1/4 x 1/2 x 1/16")	1	4
8	NLA - Pin, Roll (3/16 x 1")	1	2
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
10	Screw, Socket Button (1/4-20 x 3/4")	1	2
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
8	Washer (1/4 x 1/2 x 1/16")	1	4
9	NLA - Pin, Roll (3/16 x 1")	1	2
10	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
6	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
7	Washer (1/4 x 1/2 x 1/16")	1	4
8	NLA - Pin, Roll (3/16 x 1")	1	2
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
10	Screw, Socket Button (1/4-20 x 3/4")	1	2
7	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
8	Washer (1/4 x 1/2 x 1/16")	1	4
9	NLA - Pin, Roll (3/16 x 1")	1	2
10	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
11	Screw, Socket Button (1/4-20 x 3/4")	1	2
6	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
7	Washer (1/4 x 1/2 x 1/16")	1	4
8	NLA - Pin, Roll (3/16 x 1")	1	2
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
10	Screw, Socket Button (1/4-20 x 3/4")	1	2
6	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	8
7	Washer (1/4 x 1/2 x 1/16")	1	4
8	NLA - Pin, Roll (3/16 x 1")	1	2
9	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
10	Screw, Socket Button (1/4-20 x 3/4")	1	2

Kit, Seat Frame Assembly Hardware (12"-24" Wide)

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	For 16-19" deep seat pans
B	For 19-22" deep seat pans
C	Includes items 6-10

Catalog Literature

Parts Books for Formula™CG Tilt (CGT) Powered Seating
