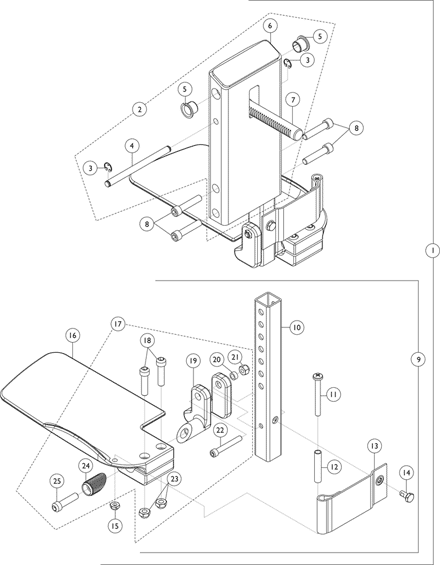

Front Riggings - Center Mount Rigging (CTMT-F) (Before 12/10/08)

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	See Note	See Footnote	1	1		A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1120346	NLA - Legrest Support Assembly, Center Mount, Black	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1113376	NLA - Ring, Retainer (1/4 x 1/2 x 1/64")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1113373	NLA - Pin, Angle, Adjustable, ASBA	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1110669	Bearing, Flange (1/2 x 13/16 x 1/2")	1	2	$13.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1113609	NLA - Support, Center Mount Rigging Legrest, Black	1	1	N/A	E	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1113372	Rack, Center Mount Rigging Angle Adjustable	1	1	$79.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1021344	Screw, Socket Head (5/16-18 x 1-1/2")	1	4	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1123034	NLA - Extension Tube and Footplate Assembly w/ Heel Loop, Short - Right	1	1	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1123035	NLA - Extension Tube and Footplate Assembly w/ Heel Loop, Short - Left	1	1	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1123044	Tube, Footrest Extension, Short (CTMTJ/CTMT-FJ = 9-1/4 - 12") (CTMT/CTMT-F = 12-1/4 - 15") (PCTMT = 10 - 13")	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1021421	NLA - Screw, Phillips Pan Head (1/4-20 x 2-1/4")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1006477	NLA - Spacer (1/4 x 11/32 x 1-3/4")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1121996	NLA - Heel Loop, Center Mount Rigging	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1078214	Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	1025195	Locknut (1/4-20)	1	2	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	1113606	NLA - Footplate, Center Mount Rigging, Black - Right (5-1/4" W x 9-5/8" L)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	1113607	NLA - Footplate, Center Mount Rigging, Black - Left (5-1/4" W x 9-5/8" L)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
17	1120345	NLA - Center Mount Rigging Footplate Mounting Hardware - Right	1	1	N/A	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
17	1121123	NLA - Center Mount Rigging Footplate Mounting Hardware - Left	1	1	N/A	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
18	1021343	Screw, Socket Head (5/16-18 x 1-1/4")	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
19	1113384	NLA - Hinge, Adjustable Angle - Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
19	1113385	NLA - Hinge, Adjustable Angle - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
20	1047449	NLA - Spacer (1/4 x 3/8 x 3/16")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
21	1065362	Locknut (1/4-28)	1	1	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
22	1096810	Screw, Socket Head (1/4-28 x 1-3/4")	1	1	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
23	1108122	NLA - Locknut (5/16-18)	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
24	1113530	Attachment, Hinge	1	1	$15.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
25	1021343	Screw, Socket Head (5/16-18 x 1-1/4")	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	As of 12/10/08, item 1 is no longer available. Individual parts may be ordered seprately.
B	Includes items 3-7
C	Includes items 10-16 & 17
D	Includes items 18-25
E	No Longer Available individually. See part # 1123046 for replacement.

Catalog Literature

Parts Books for Formula™CG Tilt (CGT) Powered Seating
