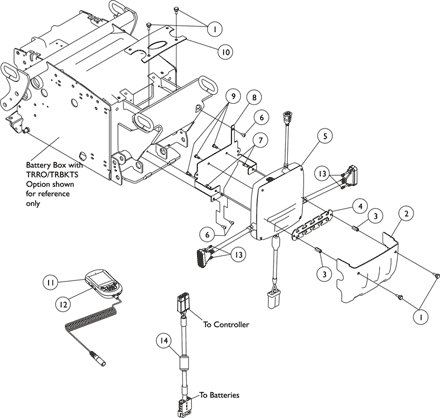

Controller - Programmer - Shroud Cover & Mtg. Hdwr. - TDX 3, 3 SE, 4, & 5 w/ GB TT Motors & TRRO/TRBKTS Option
Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
---|---|---|---|---|---|---|---|
2 | 1137243 | NLA - Cover, Controller Rear Shroud TRRO/TRBKTS | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
3 | 1113342 | NLA - Stand-Off (#10-32 x 3/4") | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
4 | 1117194 | NLA - Strip, Wiring | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
5 | 1134212 | Controller w/ Gasket Connectors, MK6i GB TT CWD | 1 | 1 |
$1,979.00 |
B |
Create/add to WishlistCreate/add to Wishlist |
6 | 1022597 | Screw, Phillips Pan Head Tap (#10-32 x 3/8") | 1 | 3 |
$3.00 |
Create/add to WishlistCreate/add to Wishlist |
|
7 | 1113438 | NLA - 3Screw, Socket Head (#10-32 x 1/2") | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
8 | 1133754 | NLA - Bracket, Controller Mounting, Black | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
9 | 1104259 | Screw, Phillips Pan Head w/ Patch (#10-32 x 1/2") | 1 | 3 |
Create/add to WishlistCreate/add to Wishlist |
||
10 | 1139532 | NLA - Cover, Controller Top Shroud | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
11 | 1139985 | Programmer, MK6i Remote | 1 | 1 |
$882.00 |
D |
Create/add to WishlistCreate/add to Wishlist |
11 | 1142215 | Kit, MK6i Remote Programmer w/ SD Professional Card & Card Holder (1813M6) | 1 | 1 |
$1,011.00 |
D |
Create/add to WishlistCreate/add to Wishlist |
12 | 1139997 | Cover, SD Card Slot | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
13 | 1159217 | Package, Thumb Screw (1-1/2" L) | 10 | 1 |
$16.00 |
Create/add to WishlistCreate/add to Wishlist |
|
1095502 | NLA - Package, Tie Wrap (11-1/2" L) | 10 | 1 | N/A | A |
Create/add to WishlistCreate/add to Wishlist |
|
1134214 | Kit, GB HD Controller Gasket Connector | 1 | 1 |
$27.00 |
A ,C ,C1 |
Create/add to WishlistCreate/add to Wishlist |
|
14 | 60102824 | Kit, Cable, Battery Extension | 1 | 1 |
$107.00 |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
Note Code | Definition |
---|---|
A | Not Shown |
B | Controller will include Gasket Connectors created 10/26/07 that will be attached to the motor cables. Part number on controller will reference 1136899, always order 1134212 as a service parts replacement |
C | Kit was created 10/26/07 and attaches to the controller motor cables. Includes 2 ea. GB HD Controller Gasket Connectors, 2 ea. Silicon Lubricant Packets, 1 ea. Instruction Sheet. Individual components are non-saleable. |
C1 | The kit can retrofit to existing GB HD controllers in the field |
D | The MK6i Programmer Manual (1141471) is not included and is strongly recommeded the guide be ordered or downloaded from Literature Fulfillment. |
