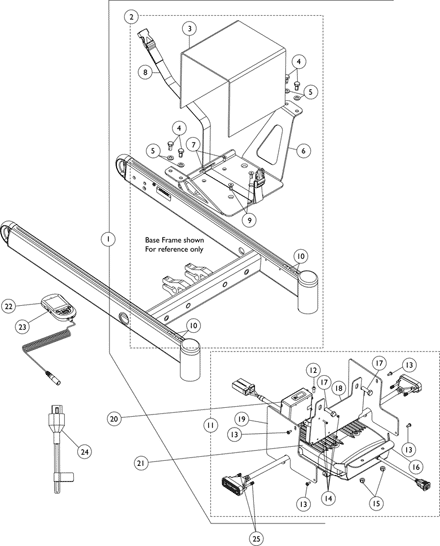

Controller - Programmer - Shrouds - MK6i TRAM w/ Mtg. Hdwr. - 3G Storm w/GB TT Motors & Formula CG w/ Vent
| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
|---|---|---|---|---|---|---|---|
| 1 |
1146625
|
NLA - Kit, Vent Battery Tray MK6i GB TT RWD Controller Mounting Hardware | 1 | 1 | N/A | A |
Create/add to WishlistCreate/add to Wishlist |
| 2 |
1148657
|
NLA - Kit, Vent Battery Tray w/ Hardware - MK6i GB TT RWD | 1 | 1 | N/A | B |
Create/add to WishlistCreate/add to Wishlist |
| 11 |
1148658
|
NLA - Kit, MK6i GB TT RWD Controller/TRAM Mounting Bracket, Shroud Covers and Mounting Hardware | 1 | 1 | N/A | C |
Create/add to WishlistCreate/add to Wishlist |
| 20 | 1140098 | Module, Tilt Recline Actuator (TRAM) - MK6i (36" L) | 1 | 1 |
$845.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 20 | 1140098E | NLA - WARR RPLMT - Module, Tilt Recline Actuator (TRAM) - MK6i | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 21 | 1134213 | Controller w/ Gasket Connectors, MK6i GB TT RWD | 1 | 1 |
$1,979.00 |
D |
Create/add to WishlistCreate/add to Wishlist |
| 22 | 1139985 | Programmer, MK6i Remote | 1 | 1 |
$882.00 |
I |
Create/add to WishlistCreate/add to Wishlist |
| 22 | 1142215 | Kit, MK6i Remote Programmer w/ SD Professional Card & Card Holder (1813M6) | 1 | 1 |
$1,011.00 |
I |
Create/add to WishlistCreate/add to Wishlist |
| 23 | 1139997 | Cover, SD Card Slot | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 24 | 1142223 | NLA - Plug Assembly, Max Angle Shorting | 1 | 1 | N/A | H ,H1 |
Create/add to WishlistCreate/add to Wishlist |
| 25 | 1159217 | Package, Thumb Screw (1-1/2" L) | 10 | 1 |
$16.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 1134214 | Kit, GB HD Controller Gasket Connector | 1 | 1 |
$27.00 |
E ,E1 ,F |
Create/add to WishlistCreate/add to Wishlist |
|
| 1101400 | Harness, ELRPW Power Legrest - Right | 1 | 1 |
$63.00 |
G |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | Includes items 3-10 and 12-19 |
| B | Includes items 3-10 |
| C | Includes items 12-19 |
| D | Controller will include Gasket Connectors created 10/26/07 that will be attached to the motor cables. Part number on controller will reference 1140040, always order 1134213 as a service parts replacement |
| E | Kit was created 10/26/07 and attaches to the controller motor cables. Includes 2 ea. GB HD Controller Gasket Connectors, 2 ea. Silicon Lubricant Packets, 1 ea. Instruction Sheet. Individual components are non-saleable. |
| E1 | The kit can retrofit to existing GB HD controllers in the field |
| F | Not Shown |
| G | Not Shown. ELRPW Power Legrest Harness part #1101400 is used to connect between the TRAM Module and a Conventional Tilt Actuator as well |
| H | Max Angle Shorting Plug Assembly plugs into the Max Angle Connector on the TRAM module to close the circuit. Only the Tilt Sensor Connector is used. This applies to a Conventional Tilt Actuator only. |
| H1 | Max Angle Shorting Plug is not used with the GTAM that replaced the TRAM for (CGT) with GB motors. |
| I | The MK6i Programmer Manual (1141471) is not included and is strongly recommended the guide be ordered or downloaded from Literature Fulfillment. |
