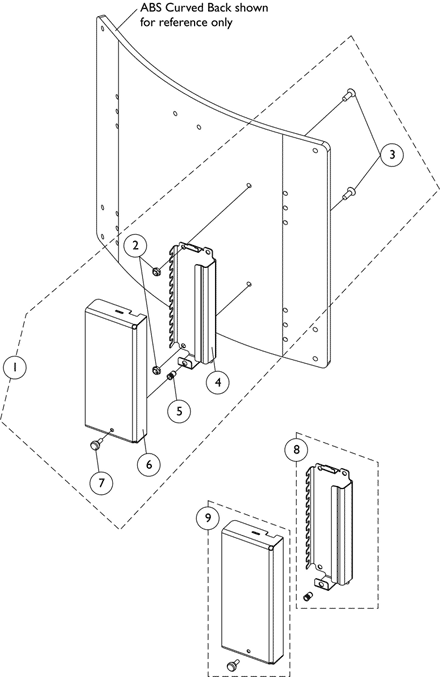

MK6i Connector Bracket & Hardware - Formula (CGT) w/ ABS Curved Back & Multiple Options (After 12/9/07)
Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
---|---|---|---|---|---|---|---|
9 |
1154126
|
Kit, MK6i Connector Bracket Cover and Attaching Screw | 1 | 1 |
$30.00 |
D |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
Note Code | Definition |
---|---|
A | Includes items 2-7 and can only be used on ABS Curved Backs manufactured after 12/9/07 that have the two holes added to accommodate the MK6i Connector Bracket |
B | Item 6 Connector Bracket Cover was introduced 4/28/08 and item 4 Connector Bracket was revised to use the cover |
C | Includes items 4 and 5 |
D | Includes items 6 and 7.When converting in the field for the first time to add the Connector Bracket Cover that was introduced 4/28/08, items 8 and 9 must be ordered together. |
