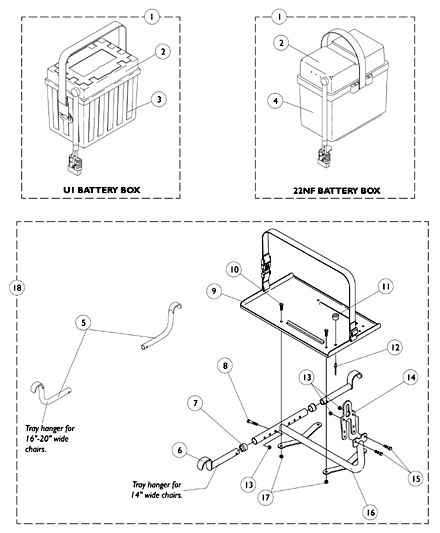

Battery Tray & Hangers
| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes |
|---|
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | As of 11/5/99 the battery harness fuse changed from a Bussman 60 AMP to a MIDI 80 AMP fuse. This battery box top is compatible for chairs manufactured before 11/5/99 and must be ordered when a replacement Bussman 60 AMP fuse is requested. |
| B | It is recommended that new terminal hardware be orered when a new battery box top is ordered. |
| C | Hardware includes small battery terminal caps (gray and orange), 1/4-20 x 7/8" hex flange screws, 1/4-20 hex flange nuts, cable ties, locking tab washers and instruction sheet for two batteries. |
| D | Hardware includes battery clamps, battery clamp caps (red and black), small battery terminal caps (red and black), 1/4-20 x 7/8" hex flange screws, 1/4-20 hex flange nuts, cable ties and locking tab washers for two batteries. |
| E | Not Shown. |
| F | These items included with item number 1009268 or available separately |
| G | These items included with item number 1057944 or available separately |
| H | Before 11/5/99 |
| I | After 11/4/99 |
| J | After 11/9/00 |
