Wheels - Rear & Motor Mounting Hardware

Print this page

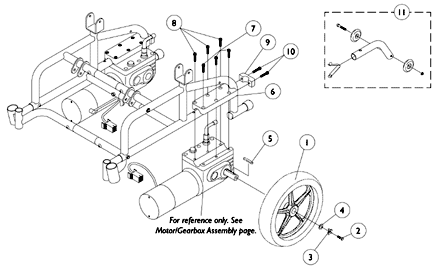

Rear Wheels and Motor Mounting Hardware

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1064178	NLA - Drive Wheel Assembly, 5 Spoke, Pneumatic (12-1/2 x 2-1/4") Includes: Locking Tab Washer with Instruction Sheet	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1064177	Drive Wheel Assembly, 5 Spoke w/ Foam Fill Insert (12-1/2 x 2-1/4") Includes: Locking Tab Washer with Instruction Sheet	1	1	$185.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1011524	Tire, Pneumatic, Grey (12-1/2" x 2-1/4")	1	1	$66.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1011525	Tube, Inner, Black (12-1/2 x 2-1/4")	1	1	$17.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1073936	NLA - Insert, Flat Free	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1064176	NLA - Rim with Locking Tab	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1023260	Screw (M8 x 1.25 x 20mm)	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1064179	Kit, Locking Tab Washer w/ Instruction Sheet (Pair)	2	1	$28.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1079247	Washer, Flat (21/64 x 53/64 x 7/64")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1023264	Key (6mm x 6mm x 40mm)	1	1	$12.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1039400	NLA - Clamp, Motor Half	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1139528	NLA - Clamp, Motor Half	1	1	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1023258	NLA - Screw, Socket Head Cap (M6 x 1 x 40mm)	1	3	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1023257	NLA - Screw, Socket Head (M6 x 25MM)	1	3	N/A	B ,D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1057823	NLA - Screw, Socket Head (M6 x 30mm)	1	3	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1039401	NLA - Cap, Motor Clamp, Black	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1027268	Screw, Allen Head (1/4-20 x 1")	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1038412	NLA - Anti-Tipper, Rear	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	As of 10/20/99 the "solid" flat free insert was replaced by a "foam fill" process. When a Flat Free Insert is requested, a complete wheel must be ordered.
B	Before 6/29/06
C	After 6/28/06
D	No Longer Available.

Catalog Literature

Parts Books for Power Tiger™
