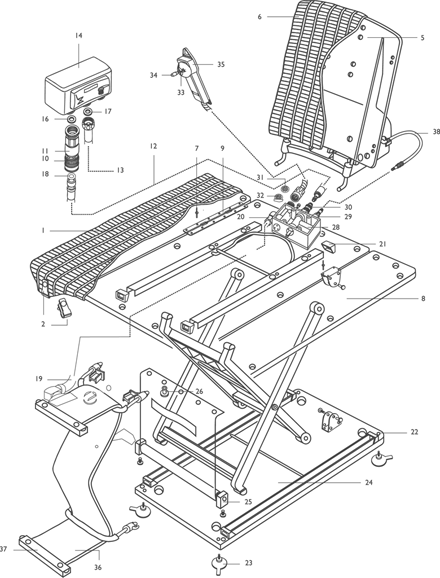

Minor Bathlift

Item	Part/Kit	Part/Kit Description	MSRP	View Parts Notes
1	11142	NLA - Cover, Seat, Blue (5 mm)	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	12423	NLA - Fixation Set for Cover, Blue	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	11517	Backrest, Reclining without Cover			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	11535	Cover, Reclining Backrest, Blue (5 mm)			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	14041	Rivet (3.2 x 9.5L)			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	10929	Flap, Side			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	10176	Hinge			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	11491	Quick Disconnect (3/8")			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	11023	NLA - Insert, Sieve	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	12404	Hose, Supply (2 m)			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	11302	Hose, Shower (1 m)			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	12585	Switch-Over			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	11551	NLA - Adhesive Tape for Switch-Over	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	10860	NLA - Washer	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
17	11385	NLA - Washer, Shower Hose (19mm x 8mm x 1mm)	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
18	11661	O-Ring (18mm x 2mm)			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
19	11020	NLA - Hose, PVC, Blue (1 m)	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
20	10356	NLA - Nut, Aluminum	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
21	10933	Cover, C-Rail			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
22	10701	Screw			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
23	12496	Cups, Suction, Set			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
24	12478	Footguard, Complete			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
25	10171	Mountings, Footguard		B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
26	11034	Clip, Footguard			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
28	14149	Control Unit, Stationary Backrest			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
28	11456	Control Unit, Reclining Backrest			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
29	11003	Coupling, Miniature, Reclining Backrest			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
30	10112DOL	Disconnect, Quick (3/8")			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
31	11376	Washer, Round			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
32	12608	Washer, Flat			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
33	14403	Joystick without Knob Assembly, Stationary Backrest			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
33	12413	Joystick without Knob Assembly, Reclining Backrest			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
34	12331	Knob, Reclining Backrest			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
34	14098	Knob, Stationary Backrest			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
35	14060	Hand Control, Stationary Backrest			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
36	13942	Bladder, Stationary Backrest			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
36	12851	Bladder, Reclining Backrest			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
37	11027	NLA - Cover, Hose, Blue	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
38	12843	Hose, Reclining Backrest			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	13954	Cover, Seat Special, Blue (5 mm)		A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	11172	Cover, Seat Special for Minor M2/M3, Blue (5 mm)		A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	11161	Backrest, Stationary without Cover		A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	11136	NLA - Cover, Backrest, Blue (5 mm)	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	11154	NLA - Cover, Stationary Backrest Special, Blue (5 mm)	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	11148	Cover, Reclining Backrest Special, Blue (5 mm)		A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	11082	Adapters, Height (2 cm)		A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	11081	Adapters, Height (4 cm)		A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	11080	Adapters, Height (6 cm)		A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	10123	Adapters, Height, Special		A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	15317	NLA - Adapters, Special Height (20 mm)	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	15318	NLA - Adapters, Special Height (40 mm)	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	15319	Adapters, Special Height (60 mm)		A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	12404	Hose, Supply (2 m)		A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	12405	Hose, Supply Set (3 m)		A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	11302	Hose, Shower (1 m)		A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	11364	NLA - Hose, Shower (1.5 m)	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	10084	NLA - Holder, Supply Hose	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	12704	Extension, Vaillant Switch (1/2")		A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	11568	Junction, Vaillant		A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	10447	NLA - Fixation Piece, L-Shaped for Vaillant Switch (New Style)	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	14147	Connector, Y-Style		A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	12550	Connector, Vaillant Switch Reduction (3/4" - 1/2" Regular Thread)		A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	10001	Connector, Shower (1/2")		A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	11123	Fixation Set for Switch Cover		A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	10128	Connection, Waterstop		A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	12101	Kit, Installation		A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	11127	Sleeve, Nut for Suction Cup		A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Not Shown.
B	Includes (2) Fixation Screws and (1) Mounting Screw.
