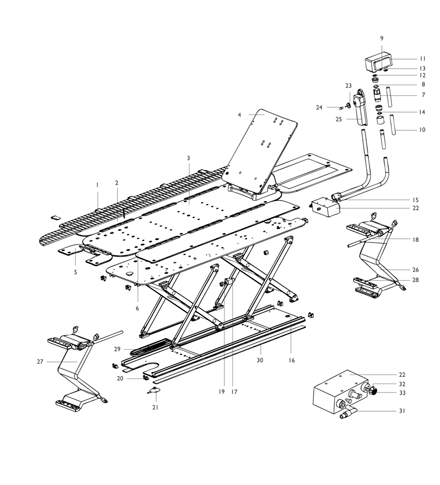

Major Bathlift I
Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
---|---|---|---|---|---|---|---|
1 | 11429 | Clip, Cover, Blue | 0 | 0 |
Create/add to WishlistCreate/add to Wishlist |
||
2 | 01000 | Flap, Side | 0 | 0 | D |
Create/add to WishlistCreate/add to Wishlist |
|
3 | 01001 | Support, Middle | 0 | 0 | D |
Create/add to WishlistCreate/add to Wishlist |
|
4 | 01002 | Support, Head | 0 | 0 | D |
Create/add to WishlistCreate/add to Wishlist |
|
5 | 01003 | Support, Foot | 0 | 0 | D |
Create/add to WishlistCreate/add to Wishlist |
|
6 | 12134 | NLA - Hinge | 0 | 0 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
7 | 11491 | Quick Disconnect (3/8") | 0 | 0 |
Create/add to WishlistCreate/add to Wishlist |
||
8 | 11023 | NLA - Insert, Sieve | 0 | 0 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
9 | 01004 | Hose (Depending on Length) | 0 | 0 | D |
Create/add to WishlistCreate/add to Wishlist |
|
10 | 11302 | Hose, Shower (1 m) | 0 | 0 |
Create/add to WishlistCreate/add to Wishlist |
||
10 | 11364 | NLA - Hose, Shower (1.5 m) | 0 | 0 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
11 | 12585 | Switch-Over | 0 | 0 |
Create/add to WishlistCreate/add to Wishlist |
||
12 | 10860 | NLA - Washer | 0 | 0 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
13 | 11385 | NLA - Washer, Shower Hose (19mm x 8mm x 1mm) | 0 | 0 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
14 | 11661 | O-Ring (18mm x 2mm) | 0 | 0 |
Create/add to WishlistCreate/add to Wishlist |
||
15 | 11559 | Clamp | 0 | 0 |
Create/add to WishlistCreate/add to Wishlist |
||
16 | 11553 | Nut | 0 | 0 |
Create/add to WishlistCreate/add to Wishlist |
||
17 | 10835 | NLA - Distributor Piece | 0 | 0 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
18 | 11020 | NLA - Hose, PVC, Blue (1 m) | 0 | 0 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
19 | 10356 | NLA - Nut, Aluminum | 0 | 0 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
20 | 11507 | Cover, C-Rail | 0 | 0 |
Create/add to WishlistCreate/add to Wishlist |
||
21 | 14204 | Cups, Suction (Pair) | 0 | 0 |
Create/add to WishlistCreate/add to Wishlist |
||
22 | 11838 | Control Unit, Reclining Backrest | 0 | 0 |
Create/add to WishlistCreate/add to Wishlist |
||
22 | 14134 | Control Unit, Stationary Backrest | 0 | 0 |
Create/add to WishlistCreate/add to Wishlist |
||
23 | 12413 | Joystick without Knob Assembly, Reclining Backrest | 0 | 0 |
Create/add to WishlistCreate/add to Wishlist |
||
23 | 14403 | Joystick without Knob Assembly, Stationary Backrest | 0 | 0 |
Create/add to WishlistCreate/add to Wishlist |
||
24 | 12331 | Knob, Reclining Backrest | 0 | 0 |
Create/add to WishlistCreate/add to Wishlist |
||
24 | 14098 | Knob, Stationary Backrest | 0 | 0 |
Create/add to WishlistCreate/add to Wishlist |
||
25 | 12541 | Hand Control, Reclining Backrest | 0 | 0 |
Create/add to WishlistCreate/add to Wishlist |
||
25 | 14060 | Hand Control, Stationary Backrest | 0 | 0 |
Create/add to WishlistCreate/add to Wishlist |
||
26 | 01005 | Bladder, Head | 0 | 0 | D |
Create/add to WishlistCreate/add to Wishlist |
|
27 | 01006 | NLA - Bladder, Foot | 0 | 0 | N/A | D |
Create/add to WishlistCreate/add to Wishlist |
28 | 11027 | NLA - Cover, Hose, Blue | 0 | 0 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
29 | 10845 | Adjustable Blue Plate | 0 | 0 |
Create/add to WishlistCreate/add to Wishlist |
||
30 | 10142 | NLA - Strip, Edge Protection, White | 0 | 0 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
31 | 11003 | Coupling, Miniature, Reclining Backrest | 0 | 0 |
Create/add to WishlistCreate/add to Wishlist |
||
32 | 11376 | Washer, Round | 0 | 0 |
Create/add to WishlistCreate/add to Wishlist |
||
33 | 12608 | Washer, Flat | 0 | 0 |
Create/add to WishlistCreate/add to Wishlist |
||
11167 | Cover, White (5 mm) | 0 | 0 | A ,D |
Create/add to WishlistCreate/add to Wishlist |
||
11166 | Cover, Blue (5 mm) | 0 | 0 | A ,D |
Create/add to WishlistCreate/add to Wishlist |
||
11137 | NLA - Cover, Backrest, White (5 mm) | 0 | 0 | N/A | A |
Create/add to WishlistCreate/add to Wishlist |
|
11136 | NLA - Cover, Backrest, Blue (5 mm) | 0 | 0 | N/A | A |
Create/add to WishlistCreate/add to Wishlist |
|
11537 | Cover, Reclining Backrest, White (5 mm) | 0 | 0 | A |
Create/add to WishlistCreate/add to Wishlist |
||
11535 | Cover, Reclining Backrest, Blue (5 mm) | 0 | 0 | A |
Create/add to WishlistCreate/add to Wishlist |
||
11161 | Backrest, Stationary without Cover | 0 | 0 | A ,B |
Create/add to WishlistCreate/add to Wishlist |
||
12263 | Backrest, Stationary without Cover | 0 | 0 | A ,C |
Create/add to WishlistCreate/add to Wishlist |
||
11517 | Backrest, Reclining without Cover | 0 | 0 | A ,B |
Create/add to WishlistCreate/add to Wishlist |
||
12742 | Backrest, Reclining without Cover | 0 | 0 | A ,C |
Create/add to WishlistCreate/add to Wishlist |
||
11551 | NLA - Adhesive Tape for Switch-Over | 0 | 0 | N/A | A |
Create/add to WishlistCreate/add to Wishlist |
|
11154 | NLA - Cover, Stationary Backrest Special, Blue (5 mm) | 0 | 0 | N/A | A |
Create/add to WishlistCreate/add to Wishlist |
|
11155 | Cover, Stationary Backrest Special, White (5 mm) | 0 | 0 | A |
Create/add to WishlistCreate/add to Wishlist |
||
11148 | Cover, Reclining Backrest Special, Blue (5 mm) | 0 | 0 | A |
Create/add to WishlistCreate/add to Wishlist |
||
11149 | NLA - Cover, Reclining Backrest Special, White (5 mm) | 0 | 0 | N/A | A |
Create/add to WishlistCreate/add to Wishlist |
|
11214 | Cover, Head Support, Blue (5 mm) | 0 | 0 | A |
Create/add to WishlistCreate/add to Wishlist |
||
11215 | Cover, Head Support, White (5 mm) | 0 | 0 | A |
Create/add to WishlistCreate/add to Wishlist |
||
11220 | Cover, Foot Support, Blue (5 mm) | 0 | 0 | A |
Create/add to WishlistCreate/add to Wishlist |
||
11221DOL | Cover, Foot Support, White (5 mm) | 0 | 0 | A |
Create/add to WishlistCreate/add to Wishlist |
||
11202 | Cover, Pillow, Blue (5 mm) | 0 | 0 | A |
Create/add to WishlistCreate/add to Wishlist |
||
11203 | Cover, Pillow, White (5 mm) | 0 | 0 | A |
Create/add to WishlistCreate/add to Wishlist |
||
11208 | Cover, Special Pillow, Blue (5 mm) | 0 | 0 | A |
Create/add to WishlistCreate/add to Wishlist |
||
11209 | NLA - Cover, Special Pillow, White (5 mm) | 0 | 0 | N/A | A |
Create/add to WishlistCreate/add to Wishlist |
|
13975 | Fixation Set for Cover, White | 0 | 0 | A |
Create/add to WishlistCreate/add to Wishlist |
||
13974 | NLA - Fixation Set for Cover, Blue | 0 | 0 | N/A | A |
Create/add to WishlistCreate/add to Wishlist |
|
15317 | NLA - Adapters, Special Height (20 mm) | 0 | 0 | N/A | A |
Create/add to WishlistCreate/add to Wishlist |
|
15318 | NLA - Adapters, Special Height (40 mm) | 0 | 0 | N/A | A |
Create/add to WishlistCreate/add to Wishlist |
|
15319 | Adapters, Special Height (60 mm) | 0 | 0 | A |
Create/add to WishlistCreate/add to Wishlist |
||
10084 | NLA - Holder, Supply Hose | 0 | 0 | N/A | A |
Create/add to WishlistCreate/add to Wishlist |
|
11092 | Quick Disconnect (Hospitals) | 0 | 0 | A |
Create/add to WishlistCreate/add to Wishlist |
||
12704 | Extension, Vaillant Switch (1/2") | 0 | 0 | A |
Create/add to WishlistCreate/add to Wishlist |
||
11568 | Junction, Vaillant | 0 | 0 | A |
Create/add to WishlistCreate/add to Wishlist |
||
10447 | NLA - Fixation Piece, L-Shaped for Vaillant Switch (New Style) | 0 | 0 | N/A | A |
Create/add to WishlistCreate/add to Wishlist |
|
14147 | Connector, Y-Style | 0 | 0 | A |
Create/add to WishlistCreate/add to Wishlist |
||
12550 | Connector, Vaillant Switch Reduction (3/4" - 1/2" Regular Thread) | 0 | 0 | A |
Create/add to WishlistCreate/add to Wishlist |
||
10001 | Connector, Shower (1/2") | 0 | 0 | A |
Create/add to WishlistCreate/add to Wishlist |
||
11123 | Fixation Set for Switch Cover | 0 | 0 | A |
Create/add to WishlistCreate/add to Wishlist |
||
10128 | Connection, Waterstop | 0 | 0 | A |
Create/add to WishlistCreate/add to Wishlist |
||
12101 | Kit, Installation | 0 | 0 | A |
Create/add to WishlistCreate/add to Wishlist |
||
10701 | Screw | 0 | 0 | A |
Create/add to WishlistCreate/add to Wishlist |
||
11127 | Sleeve, Nut for Suction Cup | 0 | 0 | A |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
Note Code | Definition |
---|---|
A | Not Shown. |
B | Distance between holes 20.5 cm. |
C | Distance between holes 25.5 cm. |
D | Parts require article number and are dependent on size. |
