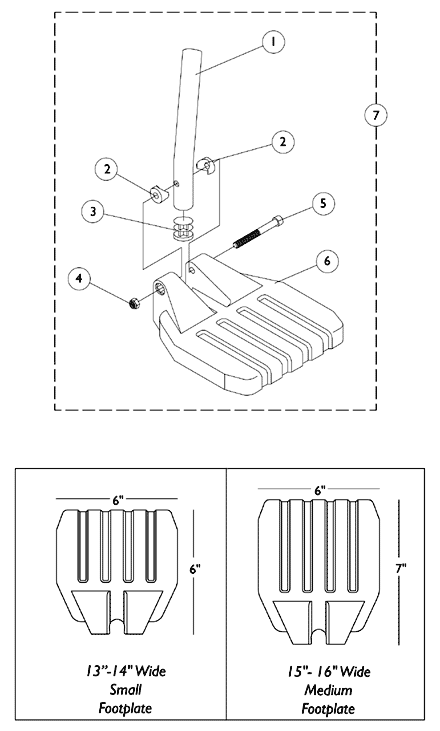

Front Riggings - Pivot/Slide Tube and Composite Footplates

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1120383

Tube, Pivot/Slide, Curved End, Black - Short (8-1/4")

Create/add to Wishlist

1120382

Tube, Pivot/Slide, Curved End, Black - Long (9-7/8")

$31.00

Create/add to Wishlist

1120386

Tube, Pivot/Slide, Curved, 2" Longer, Black (11-7/8")

$25.00

Create/add to Wishlist

1120384

NLA - Tube, Pivot/Slide, Straight - Alum. (9-7/8" L)

N/A

Create/add to Wishlist

1120385

Tube, Pivot/Slide, Straight - Black (11-7/8" L)

$31.00

Create/add to Wishlist

1025457

Spacer, Coved (1/4 x 3/4 x 11/32")

$8.00

Create/add to Wishlist

1027097

Plug Button, Black (3/4")

$7.50

Create/add to Wishlist

7930323

NLA - Package, Locknut (1/4-20)

N/A

Create/add to Wishlist

7930366

Package, Socket Head Screw (1/4-20 x 2-1/4")

$44.00

Create/add to Wishlist

1026879

Footplate, Composite, Small, Black (6" W x 6" L)

$53.00

Create/add to Wishlist

1026880

Footplate, Composite, Medium, Black (7" W x 6" L)

$53.00

Create/add to Wishlist

See Chart

Added to Cart

Front Rigging	Small 13"-14" Wide	Medium 15"-16" Wide
60 Degree (13"-19") -Right	1028391	1028387 MSRP: $104.00
60 Degree (13"-19") -Left	1028392	1028388 MSRP: $104.00
60 Degree (13"-19") 2" Longer -Right	1032627- NLA	1032625- NLA
60 Degree (13"-19") 2" Longer -Left	1032628- NLA	1032626- NLA
60 Degree MFX (9-3/4" - 14") -Right	1028389- NLA	1028385- NLA
60 Degree MFX (9-3/4" - 14") -Left	1028390- NLA	1028386- NLA
70 Degree (14"-19") -Right	1042784- NLA	1042786
70 Degree (14"-19") -Left	1042785- NLA	1042787
70 Degree (14"-19") 2" Longer -Right	1042790	1042792 MSRP: $99.00
70 Degree (14"-19") 2" Longer -Left	1042791	1042793

Create/add to Wishlist

#7 Pivot/Slide Tube w/Composite Footplate Assemblies

N/A

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	13-14" Wide
B	15-16" Wide
C	60 Degree MFX
D	60 Degree
E	70 Degree NTaper

Catalog Literature

Parts Books for Power Tiger™
