Front Riggings - One Piece Adjustable Angle Footboard

Print this page

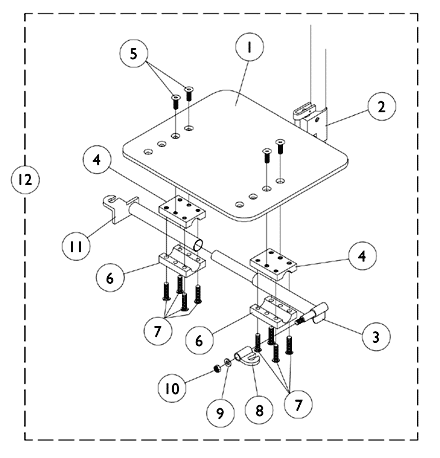

One Piece Adjustable Angle Footboard

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1044076	Footboard	1	1	$102.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1044089	NLA - Footboard	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1027657	NLA - Clamp, Footplate	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1027676	NLA - Footrest Support Assembly, Black	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1030271	NLA - Footrest Support Assembly, Black	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1027626	NLA - Half Clamp, Threaded	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1029545	Screw, Socket Flat Head (1/4-20 x 3/4")	1	4	$9.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1027627	NLA - Half Clamp, Non-Threaded	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1009837	Screw, Socket Button Head (1/4-20 x 1")	1	8	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1027630	NLA - Tab, Weldment, Black	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1026033	Washer, Nylon (1/4 x 1/2 x 1/16")	1	1	$7.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	7930323	NLA - Package, Locknut (1/4-20)	25	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1027638	NLA - Footrest Support Assembly, Black	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1030199	NLA - Footrest Support Assembly, Black	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1027640	NLA - Footboard Assembly, One Piece Adjustable Angle	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1030200	NLA - Footboard Assembly, One Piece Adjustable Angle	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	12-13" Wide Chairs
B	14-16" Wide Chairs
