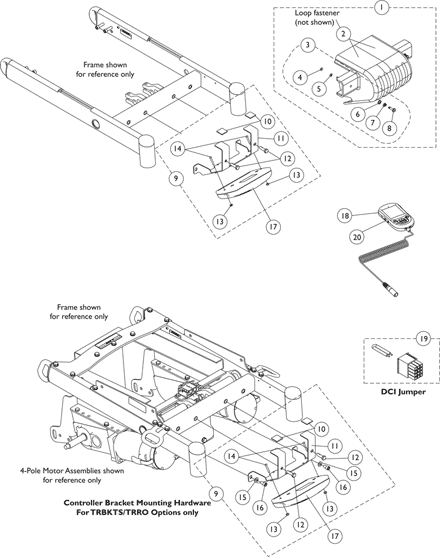

Controller - Programmer - Shroud Cover w/ Mtg. Hdwr. - 3G Storm w/ 4 Pole Motors
| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
|---|---|---|---|---|---|---|---|
| 1 | 1104839 | Kit, Controller Shroud w/ Hardware | 1 | 1 |
$150.00 |
A |
Create/add to WishlistCreate/add to Wishlist |
| 2 | 1079246 | NLA - Fastener, Loop Adhesive Back (1" W x 3" L) | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 3 | 1104706 | NLA - Kit, Controller Shroud Mounting Hardware (Pair) | 1 | 1 | N/A | B |
Create/add to WishlistCreate/add to Wishlist |
| 4 | 1110509 | NLA - Retainer, Stud (1/4" Turn) | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 5 | 1070580 | NLA - Washer, Nylon Retainer (1/4 x 1/2 x 1/32") | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 6 | 1070581 | NLA - Washer, Nylon Cupped (9/32 x 19/32 x 3/32") | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 7 | 1093312 | NLA - Spring, Torsion Ejector | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 8 | 1110508 | NLA - Stud, Phillips Recess (1/4" Dia. x 1" Long, 1/4 Turn) | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 9 |
1145380
|
Kit, Controller Bracket Mounting Hardware | 1 | 1 |
$39.00 |
C |
Create/add to WishlistCreate/add to Wishlist |
| 9 |
1147373
|
Kit, Controller Bracket Mounting Hardware (For TRBKTS/TRRO Option) | 1 | 1 |
$59.00 |
F |
Create/add to WishlistCreate/add to Wishlist |
| 17 | 1136897 | Controller, MK690 | 1 | 1 |
$1,250.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 17 | 1136898 | Controller, MK690 w/ ACC | 1 | 1 |
$1,250.00 |
G ,G1 |
Create/add to WishlistCreate/add to Wishlist |
| 17 | 1148360 | NLA - Controller, MK690 w/ ACC | 1 | 1 | N/A | H |
Create/add to WishlistCreate/add to Wishlist |
| 18 | 1139985 | Programmer, MK6i Remote | 1 | 1 |
$882.00 |
I |
Create/add to WishlistCreate/add to Wishlist |
| 18 | 1142215 | Kit, MK6i Remote Programmer w/ SD Professional Card & Card Holder (1813M6) | 1 | 1 |
$1,011.00 |
I |
Create/add to WishlistCreate/add to Wishlist |
| 19 | 1140125 | NLA - Jumper, DCI | 1 | 1 | N/A | E |
Create/add to WishlistCreate/add to Wishlist |
| 20 | 1139997 | Cover, SD Card Slot | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
| 1095502 | NLA - Package, Tie Wrap (11-1/2" L) | 10 | 1 | N/A | D |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | Includes shroud cover and items 2-3. |
| B | Includes items 4-8. |
| C | Includes items 10-14. |
| D | Not Shown |
| E | DCI Jumper is used when an MPJ+ Joystick is used |
| F | Includes items 10-16 |
| G | Part # 1136898 is used for all Base Only orders. When a customer request part # 1136898 for a Base Only order that shipped before 1/19/07, |
| G1 | part #1148360 is no longer required as a replacement because the software for part #1136898 was revised 9/12/07 to version 2.61a and now accommodates all Base Only orders that shipped before 1/19/07 as well. |
| H | Used for all Base Only orders. Discontinued 9/12/07, see part #1136898 as a direct replacement. |
| I | The MK6i Programmer Manual (1141471) is not included and is strongly recommeded the guide be ordered or downloaded from Literature Fulfillment. |
