Controller - Programmer - & Mtg. Hdwr. - Power Tiger

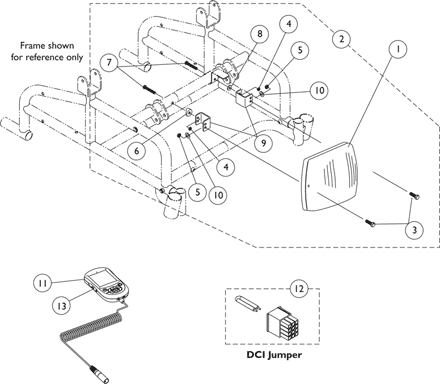

| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
|---|---|---|---|---|---|---|---|
| 1 | 1127270 | Controller, MK5 NX w/ ACC/ MK660 w/ ACC | 1 | 1 |
$1,089.00 |
B ,B1 ,D ,D1 |
Create/add to WishlistCreate/add to Wishlist |
| 1 | 1148361 | NLA - Controller, MK660 w/ ACC | 1 | 1 | N/A | E |
Create/add to WishlistCreate/add to Wishlist |
| 2 |
1146608
|
NLA - Kit, Controller Mounting Hardware | 1 | 1 | N/A | A |
Create/add to WishlistCreate/add to Wishlist |
| 11 | 1139985 | Programmer, MK6i Remote | 1 | 1 |
$882.00 |
F |
Create/add to WishlistCreate/add to Wishlist |
| 11 | 1142215 | Kit, MK6i Remote Programmer w/ SD Professional Card & Card Holder (1813M6) | 1 | 1 |
$1,011.00 |
F |
Create/add to WishlistCreate/add to Wishlist |
| 12 | 1140125 | NLA - Jumper, DCI | 1 | 1 | N/A | C |
Create/add to WishlistCreate/add to Wishlist |
| 13 | 1139997 | Cover, SD Card Slot | 1 | 1 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | Includes items 3-10 |
| B | After 10/8/06 the MK5 NX w/ ACC controller was revised to function as a MK660 w/ ACC or MK5 NX w/ ACC controller. The part # did not change and the label was revised to only show MK660 w/ ACC. |
| B1 | Revised controller is backward compatible with MK5 Driver Controls manufactured Before 10/9/06. Controllers in the field that show the MK5 NX w/ ACC label and serial # dated Before 10/9/06 will not have revised software to work with MK6i Driver Controls. |
| C | DCI Jumper is used when an MPJ+ Joystick is used |
| D | Part #1148361 controller is no longer required as a replacement for a chair ordered with Manual Tilt Option before 1/19/07. |
| D1 | because the software for part #1127270 was revised 8/31/07 to version 2.61a and now accommodates all Manual Tilt optioned chairs shipped before 1/19/07 as well. |
| E | Used for Chairs with Manual Tilt Option only. Discontinued 8/31/07, see part #1127270 as a direct replacement. |
| F | The MK6i Programmer Manual (1141471) is not included and is strongly recommeded the guide be ordered or downloaded from Literature Fulfillment. |
