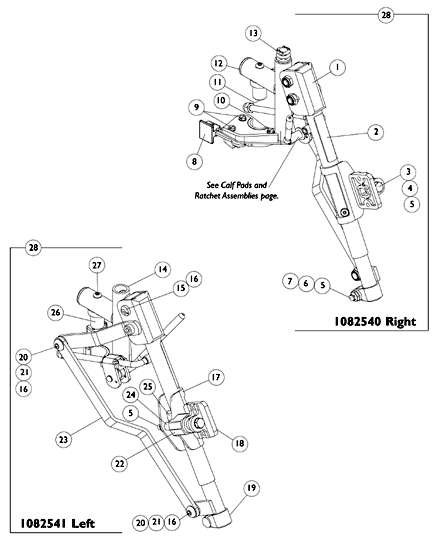

Front Riggings - Legrest Supports - ATL4A

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1022877	NLA - Tube, Support and Drive Link, Chrome - Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1022878	NLA - Tube, Support and Drive Link, Chrome - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1024911	NLA - Decal, Smartleg	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1014807	Screw, Hex Head (5/16-24 x 3-1/4")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	47330X003	Spacer (5/16 x 1/2 x 3/8")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	7930363	NLA - Package, Locknut (5/16"-24)	25	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1027377	Washer (#20)	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	11232X009	Bolt, Lug (5/16-24 x 1-3/8")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1025454	Housing, Latch - Right	1	1	$19.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1025455	Housing, Latch - Left	1	1	$19.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1025451	Screw, Slotted Hex Washer Head (#10-32 x 5/8")	1	2	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	7930314	Package, Screw, Slotted Hex Washer Head (#10-32 x 1/2")	25	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	7930333	Locknut (1/4-20)	1	1	$44.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1029501	Plug Button, Black (1")	1	1	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1027097	Plug Button, Black (3/4")	1	1	$7.50		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1082538	NLA - Tube, Legrest Support, Articulating, Sector, Chrome - Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1082539	NLA - Tube, Legrest Support, Articulating, Sector, Chrome - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	1022854	NLA - Screw, Shoulder Slotted Head (1/2 x 1-1/8", 3/8-16)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	40363X000	Hex Nut (3/8"-16)	1	3	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
17	1025104	Bracket, Legrest, Chrome	1	1	$16.00	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
18	04526X019	Plate, Legrest Pad	1	1	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
19	1022848	Tube, Slide, Articulating, Chrome - Right	1	1	$30.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
19	1022849	Tube, Slide, Articulating, Chrome - Left	1	1	$31.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
20	1022866	NLA - Screw, Socket Button Head (3/8-16 x 3/4")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
21	1049527	Washer, Nylon (3/8 x 3/4 x 1/16")	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
22	1025133	Spacer, Legrest Pad, Black	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
23	1022846	NLA - Bar, Link, Black	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
24	47328X003	Bushing, Pivot (5/16 x 7/16 x 7/8")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
25	48823X008	Spring, Leaf	1	1	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
26	1017148	Pivot, Footrest	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
27	7930301	NLA - Package, Button Head Cap Screw (1/4-20 x 1-3/4")	25	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
28	1082540	Articulating Legrest Support Assembly, Sector, Chrome - Right	1	1	$116.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
28	1082541	Articulating Legrest Support Assembly, Sector, Chrome - Left	1	1	$116.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes items 1-27
B	Right/Left

Catalog Literature

Parts Books for Power Tiger™
