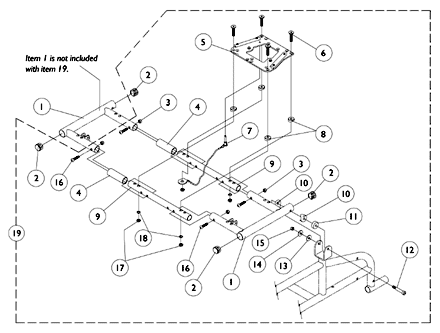

Orbit Seat Option - Seat Rail - Lower Seat Plate Assembly

Print this page

Orbit Seat Option

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	8881083060	NLA - Frame, Seat, Rail, Color	1	2	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1029501	Plug Button, Black (1")	1	4	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	7930323	NLA - Package, Locknut (1/4-20)	25	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1037291	NLA - Tube, Spacer, Black	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1083130	NLA - Plate, Lower Seat	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1055332	NLA - Screw, Socket Flat Head (1/4 -28 x 1-3/4")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1085036	NLA - Pin and Lanyard Assembly	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1026099	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1037285	NLA - Tube, Slide, Seat Frame, Black	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	40157X020	Spacer, Coved (1/4 x 1 x 9/16")	1	4	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1036434	NLA - Spacer (5/16 x 7/8 x 3/16")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1030957	NLA - Screw, Shoulder Hex Socket Head (1/4 x 1-3/4", #10-24)	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1026033	Washer, Nylon (1/4 x 1/2 x 1/16")	1	2	$7.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1026034	NLA - Washer, Nylon (3/16 x 7/16 x 1/8")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	1026035	NLA - Locknut (#10-24)	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	1008432	Screw, Socket Button Head (1/4-20 x 1-1/4")	1	4	$9.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
17	7930345	Locknut (1/4-28)	25	4	$41.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
18	1002104	NLA - Washer, Flat (1/4 x 1/2 x 1/16")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
19	1083064	NLA - Hardware, Seat Mounting	1	1	N/A	B ,C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Specify frame color when ordering
B	When converting to an Orbit seat, item 1 must be ordered as well.
C	Includes items 2-18
