Frames - Seat & Back Cane Hardware

Print this page

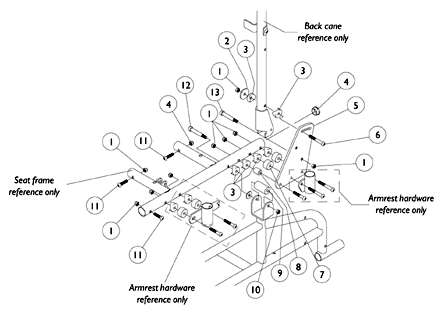

Seat Frame and Back Cane Hardware

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	7930323	NLA - Package, Locknut (1/4-20)	25	20	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1026060	NLA - Washer, Flat (9/32 x 1 x 5/64)	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	40157X019	Coved Spacer	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1027095	Plug Button, Black (7/8")	1	2	$9.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1027142	Plate, Back Mounting, Right	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1027143	NLA - Plate, Back Mounting, Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	7930301	NLA - Package, Button Head Cap Screw (1/4-20 x 1-3/4")	25	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1036040	NLA - Spacer (9/32 x 7/8 x 1/2")	1	4	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1020363	NLA - Spacer (1/4 x 1/2 x 1/2")	1	2	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1036394	NLA - Spacer (1/4 x 3/4 x 1-7/16")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	7930333	Locknut (1/4-20)	25	2	$44.00	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1026035	NLA - Locknut (#10-24)	1	2	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1008432	Screw, Socket Button Head (1/4-20 x 1-1/4")	1	6	$9.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1036041	NLA - Screw, Socket Head (1/4-20 x 3-1/4")	1	2	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1030957	NLA - Screw, Shoulder Hex Socket Head (1/4 x 1-3/4", #10-24)	1	2	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1025351	NLA - Screw, Shoulder Hex Socket Head (5/16" x 1-1/4", 1/4-20)	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	14" Wide
B	12 to 14" Wide
C	15 to 16" Wide

Catalog Literature

Parts Books for Power Tiger™
