Frames - Seat

Print this page

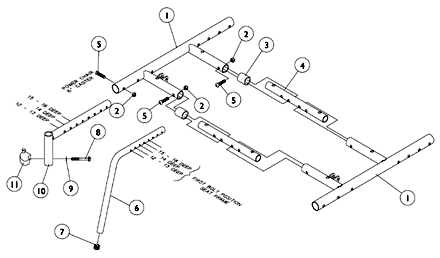

Seat Frame Assembly

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	8881037653	Tube, Seat Rail, Color	1	2		A ,B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	8881037655	Tube, Seat Rail, Color	1	2		A ,C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	7930323	NLA - Package, Locknut (1/4-20)	25	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1037288	Tube, Spacer	1	2		B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1037291	NLA - Tube, Spacer, Black	1	2	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1037276	NLA - Tube, Slide, Seat Frame, Black	1	2	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1037285	NLA - Tube, Slide, Seat Frame, Black	1	2	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1008432	Screw, Socket Button Head (1/4-20 x 1-1/4")	1	2	$9.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	8881038406	NLA - Tube, Fixed Front Frame	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1027095	Plug Button, Black (7/8")	1	2	$9.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1052957	Screw, Hex Head w/ Patch (1/4-20 x 2")	1	2	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1026907	Washer (1/4 x 1/2 x 1/16")	1	2	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	8881038407	NLA - Footrest Mounting Tube w/ Sector Block, Color - Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	8881038408	NLA - Footrest Mounting Tube w/ Sector Block, Color - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1054571	Kit, Sector Block - Right	1	1	$19.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1054572	Kit, Sector Block - Left	1	1	$19.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Specify frame color when ordering.
B	12-14" Wide Chairs
C	15-16" Wide Chairs

Catalog Literature

Parts Books for Power Tiger™
