Packaging - Literature & Decals

Print this page

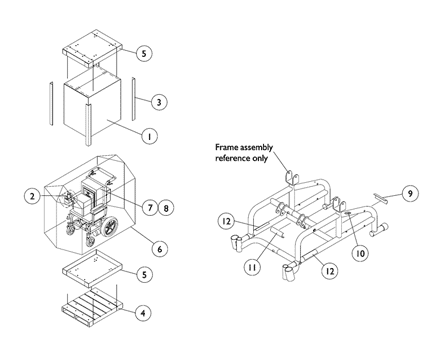

Packaging, Literature and Decals

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1030364	Carton, Cover	1	1	$58.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1023612	NLA - Tube, Paper	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1115174	Carton, Corner Reinforcement	1	4			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	See Note	See Footnote	1	1		E	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1030362	Carton, Tray	1	2	$13.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1015592	Bag, Poly (72" L x 35" W x 19" D)	1	1	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	40131X011	NLA - Carton, Front Riggings	1	1	N/A	F	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	40131X161	Insert, Plain Pad	1	1	$7.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1035900	Decal, Transportation	1	1	$7.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1095497	Decal, Invacare Logo (1.6)	1	2	$7.00	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1119281	NLA - Plate, Name, Patent Numbers	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1095220	NLA - Decal, Model, Black - Power Tiger	1	2	N/A	B ,C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1095221	NLA - Decal, Model, White - Power Tiger	1	2	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1038410	NLA - Package, Decal, Black - Power Tiger	1	1	N/A	A ,D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1038409	NLA - Package, Decal, White - Power Tiger	1	1	N/A	A ,D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1134839	NLA - Owner''s Manual	1	1	N/A	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Decal Package includes Invacare logo, model, transportation and patent number decals.
B	Used for chairs with frame colors 02P, 29P, 30P and 84P only.
C	Invacare logo added and model decals changed 1/11/2000. When replacing side frames before 1/11/2000 order decals in pairs to match.
D	Not Shown.
E	Wood Skid is not supplied.
F	Can also be used for a Joystick Carton.

Catalog Literature

Parts Books for Power Tiger™
