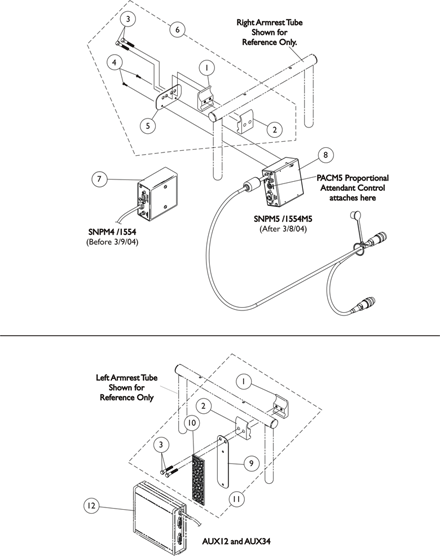

Electronics - Sip-N-Puff / Digital Interface & AUX12 and AUX34

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1049593

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
4	NLA - Half Clamp, Threaded Holes	1	1
5	Half Clamp, Non-Threaded Holes	1	1
6	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
7	Screw, Phillips Pan Head (#4-40 x 3/8")	1	2
8	Plate, Mounting	1	1
2	NLA - Half Clamp, Threaded Holes	1	1
3	Half Clamp, Non-Threaded Holes	1	1
4	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
5	Screw, Phillips Pan Head (#4-40 x 3/8")	1	2
6	Plate, Mounting	1	1
2	NLA - Half Clamp, Threaded Holes	1	1
3	Half Clamp, Non-Threaded Holes	1	1
4	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
5	Screw, Phillips Pan Head (#4-40 x 3/8")	1	2
6	Plate, Mounting	1	1
1	NLA - Half Clamp, Threaded Holes	1	1
2	Half Clamp, Non-Threaded Holes	1	1
3	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
4	Screw, Phillips Pan Head (#4-40 x 3/8")	1	2
5	Plate, Mounting	1	1
2	NLA - Half Clamp, Threaded Holes	1	1
3	Half Clamp, Non-Threaded Holes	1	1
4	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
5	Plate, Mounting	1	1
6	Screw, Phillips Pan Head (#4-40 x 3/8")	1	2
2	NLA - Half Clamp, Threaded Holes	1	1
3	Half Clamp, Non-Threaded Holes	1	1
4	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
5	Plate, Mounting	1	1
6	Screw, Phillips Pan Head (#4-40 x 3/8")	1	2
1	NLA - Half Clamp, Threaded Holes	1	1
2	Half Clamp, Non-Threaded Holes	1	1
3	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
4	Screw, Phillips Pan Head (#4-40 x 3/8")	1	2
5	Plate, Mounting	1	1
1	NLA - Half Clamp, Threaded Holes	1	1
2	Half Clamp, Non-Threaded Holes	1	1
3	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
4	Screw, Phillips Pan Head (#4-40 x 3/8")	1	2
5	Plate, Mounting	1	1
2	NLA - Half Clamp, Threaded Holes	1	1
3	Half Clamp, Non-Threaded Holes	1	1
4	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
5	Screw, Phillips Pan Head (#4-40 x 3/8")	1	2
6	Plate, Mounting	1	1
1	NLA - Half Clamp, Threaded Holes	1	1
2	Half Clamp, Non-Threaded Holes	1	1
3	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
4	Screw, Phillips Pan Head (#4-40 x 3/8")	1	2
5	Plate, Mounting	1	1
2	Half Clamp, Non-Threaded Holes	1	1
3	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
4	Screw, Phillips Pan Head (#4-40 x 3/8")	1	2
5	Plate, Mounting	1	1
6	NLA - Half Clamp, Threaded Holes	1	1
2	NLA - Half Clamp, Threaded Holes	1	1
3	Half Clamp, Non-Threaded Holes	1	1
4	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
5	Plate, Mounting	1	1
6	Screw, Phillips Pan Head (#4-40 x 3/8")	1	2
2	NLA - Half Clamp, Threaded Holes	1	1
3	Half Clamp, Non-Threaded Holes	1	1
4	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
5	Screw, Phillips Pan Head (#4-40 x 3/8")	1	2
2	NLA - Half Clamp, Threaded Holes	1	1
3	Half Clamp, Non-Threaded Holes	1	1
4	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
5	Plate, Mounting	1	1
6	Screw, Phillips Pan Head (#4-40 x 3/8")	1	2
6	Plate, Mounting	1	1
1	NLA - Half Clamp, Threaded Holes	1	1
1	NLA - Half Clamp, Threaded Holes	1	1
2	Half Clamp, Non-Threaded Holes	1	1
3	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
6	Screw, Phillips Pan Head (#4-40 x 3/8")	1	2
7	Plate, Mounting	1	1
1	NLA - Half Clamp, Threaded Holes	1	1
2	Half Clamp, Non-Threaded Holes	1	1
3	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
4	Screw, Phillips Pan Head (#4-40 x 3/8")	1	2
5	Plate, Mounting	1	1
1	NLA - Half Clamp, Threaded Holes	1	1
2	Half Clamp, Non-Threaded Holes	1	1
3	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
6	Screw, Phillips Pan Head (#4-40 x 3/8")	1	2
7	Plate, Mounting	1	1
5	Plate, Mounting	1	1
2	Half Clamp, Non-Threaded Holes	1	1
1	NLA - Half Clamp, Threaded Holes	1	1
2	Half Clamp, Non-Threaded Holes	1	1
3	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
6	Screw, Phillips Pan Head (#4-40 x 3/8")	1	2
7	Plate, Mounting	1	1
1	NLA - Half Clamp, Threaded Holes	1	1
2	Half Clamp, Non-Threaded Holes	1	1
3	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
6	Screw, Phillips Pan Head (#4-40 x 3/8")	1	2
7	Plate, Mounting	1	1
1	NLA - Half Clamp, Threaded Holes	1	1
2	Half Clamp, Non-Threaded Holes	1	1
3	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
6	Screw, Phillips Pan Head (#4-40 x 3/8")	1	2
7	Plate, Mounting	1	1
1	NLA - Half Clamp, Threaded Holes	1	1
2	Half Clamp, Non-Threaded Holes	1	1
3	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
6	Screw, Phillips Pan Head (#4-40 x 3/8")	1	2
7	Plate, Mounting	1	1
4	Screw, Phillips Pan Head (#4-40 x 3/8")	1	2
5	Plate, Mounting	1	1
3	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
1	NLA - Half Clamp, Threaded Holes	1	1
2	Half Clamp, Non-Threaded Holes	1	1
3	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
1	NLA - Half Clamp, Threaded Holes	1	1
2	Half Clamp, Non-Threaded Holes	1	1
3	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
6	Screw, Phillips Pan Head (#4-40 x 3/8")	1	2
7	Plate, Mounting	1	1
4	Screw, Phillips Pan Head (#4-40 x 3/8")	1	2
2	NLA - Half Clamp, Threaded Holes	1	1
3	Half Clamp, Non-Threaded Holes	1	1
4	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
5	Plate, Mounting	1	1
6	Screw, Phillips Pan Head (#4-40 x 3/8")	1	2

Kit, SNP/DI, MK5 SAC, 4WSB, S4WSB, GTAM, AUX12M6, AUX34M6 Mtg. Hdwr.

$52.00

A ,E

Create/add to Wishlist

1038635

NLA - Sip-N-Puff w/ Digital Interface

N/A

Create/add to Wishlist

1122229

NLA - Sip-N-Puff w/ Digital Interface - MK5

N/A

Create/add to Wishlist

1049592

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
1	NLA - Half Clamp, Threaded Holes	1	1
2	Half Clamp, Non-Threaded Holes	1	1
3	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
9	NLA - Fastener, Dual Lock Hook and Loop Adhesive (2" W x 12" L)	1	1
10	NLA - Plate, COM12/AUX12 and COM34/AUX34 Mounting	1	1
1	NLA - Half Clamp, Threaded Holes	1	1
2	Half Clamp, Non-Threaded Holes	1	1
3	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
9	NLA - Fastener, Dual Lock Hook and Loop Adhesive (2" W x 12" L)	1	1
10	NLA - Plate, COM12/AUX12 and COM34/AUX34 Mounting	1	1
1	NLA - Half Clamp, Threaded Holes	1	1
2	Half Clamp, Non-Threaded Holes	1	1
3	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
4	NLA - Fastener, Dual Lock Hook and Loop Adhesive (2" W x 12" L)	1	1
5	NLA - Plate, COM12/AUX12 and COM34/AUX34 Mounting	1	1
1	NLA - Half Clamp, Threaded Holes	1	1
2	Half Clamp, Non-Threaded Holes	1	1
3	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
9	NLA - Fastener, Dual Lock Hook and Loop Adhesive (2" W x 12" L)	1	1
10	NLA - Plate, COM12/AUX12 and COM34/AUX34 Mounting	1	1
9	NLA - Half Clamp, Threaded Holes	1	1
2	Half Clamp, Non-Threaded Holes	1	1
1	NLA - Half Clamp, Threaded Holes	1	1
2	Half Clamp, Non-Threaded Holes	1	1
3	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
4	NLA - Fastener, Dual Lock Hook and Loop Adhesive (2" W x 12" L)	1	1
5	NLA - Plate, COM12/AUX12 and COM34/AUX34 Mounting	1	1
10	Half Clamp, Non-Threaded Holes	1	1
11	NLA - Fastener, Dual Lock Hook and Loop Adhesive (2" W x 12" L)	1	1
12	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
13	NLA - Plate, COM12/AUX12 and COM34/AUX34 Mounting	1	1
1	NLA - Half Clamp, Threaded Holes	1	1
2	Half Clamp, Non-Threaded Holes	1	1
3	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
4	NLA - Fastener, Dual Lock Hook and Loop Adhesive (2" W x 12" L)	1	1
5	NLA - Plate, COM12/AUX12 and COM34/AUX34 Mounting	1	1
1	NLA - Half Clamp, Threaded Holes	1	1
2	Half Clamp, Non-Threaded Holes	1	1
3	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
4	NLA - Fastener, Dual Lock Hook and Loop Adhesive (2" W x 12" L)	1	1
5	NLA - Plate, COM12/AUX12 and COM34/AUX34 Mounting	1	1
10	NLA - Plate, COM12/AUX12 and COM34/AUX34 Mounting	1	1
1	NLA - Half Clamp, Threaded Holes	1	1
2	Half Clamp, Non-Threaded Holes	1	1
3	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
4	NLA - Fastener, Dual Lock Hook and Loop Adhesive (2" W x 12" L)	1	1
5	NLA - Plate, COM12/AUX12 and COM34/AUX34 Mounting	1	1
1	NLA - Half Clamp, Threaded Holes	1	1
1	NLA - Half Clamp, Threaded Holes	1	1
2	Half Clamp, Non-Threaded Holes	1	1
3	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
4	NLA - Fastener, Dual Lock Hook and Loop Adhesive (2" W x 12" L)	1	1
5	NLA - Plate, COM12/AUX12 and COM34/AUX34 Mounting	1	1
1	NLA - Half Clamp, Threaded Holes	1	1
2	Half Clamp, Non-Threaded Holes	1	1
3	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
4	NLA - Fastener, Dual Lock Hook and Loop Adhesive (2" W x 12" L)	1	1
5	NLA - Plate, COM12/AUX12 and COM34/AUX34 Mounting	1	1
4	NLA - Fastener, Dual Lock Hook and Loop Adhesive (2" W x 12" L)	1	1
5	NLA - Plate, COM12/AUX12 and COM34/AUX34 Mounting	1	1
1	NLA - Half Clamp, Threaded Holes	1	1
2	Half Clamp, Non-Threaded Holes	1	1
3	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
1	NLA - Half Clamp, Threaded Holes	1	1
2	Half Clamp, Non-Threaded Holes	1	1
3	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
4	NLA - Fastener, Dual Lock Hook and Loop Adhesive (2" W x 12" L)	1	1
5	NLA - Plate, COM12/AUX12 and COM34/AUX34 Mounting	1	1
9	NLA - Fastener, Dual Lock Hook and Loop Adhesive (2" W x 12" L)	1	1
1	NLA - Half Clamp, Threaded Holes	1	1
2	Half Clamp, Non-Threaded Holes	1	1
3	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2
4	NLA - Fastener, Dual Lock Hook and Loop Adhesive (2" W x 12" L)	1	1
5	NLA - Plate, COM12/AUX12 and COM34/AUX34 Mounting	1	1
3	NLA - Screw, Hex Head (1/4-20 x 1-1/8")	1	2

NLA - Kit, COM12/AUX12 and COM34/AUX34 Mounting Hardware

N/A

Create/add to Wishlist

See Note

See Footnote

N/A

Create/add to Wishlist

1086241

NLA - Module, Communication, COM34/AUX34

N/A

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 1-5
B	Before 3/9/04 - MKIV Electronics
C	After 3/8/04 - MK5 Electronics
D	Includes items 1-3, & 9-10. Item 9 that is packaged with the kit will only be a 4" long "loop" fastener.
E	As of 5/22/07 the Mounting Plate holes and the orientation of the Hardware was revised to attach the electronics closer to the chair. The Mounting Hardware Kit is backward compatible.
F	Part is no longer serviceable in the field.
