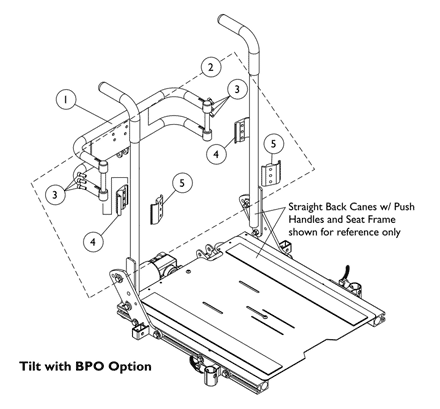

Spreader Bar Assembly - Double For Tilt w/ BPO Option

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

0013602

Bar, Push, Black (16" W)

$249.00

Create/add to Wishlist

0013702

Bar, Push, Black (17" W)

$238.00

Create/add to Wishlist

0013802

Bar, Push, Black (18" W)

$249.00

Create/add to Wishlist

0013902

Bar, Push, Black (19" W)

Create/add to Wishlist

0014002

Bar, Push, Black (20" W)

$249.00

Create/add to Wishlist

1125761

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	Screw, Socket Head (1/4-20 x 5/8")	1	6
4	Half Clamp, Threaded Holes (7/8" Dia. Back Canes)	1	2
5	Half Clamp, Un-Threaded Holes (7/8" Dia. Back Canes)	1	2
3	Screw, Socket Head (1/4-20 x 5/8")	1	6
4	Half Clamp, Threaded Holes (7/8" Dia. Back Canes)	1	2
5	Half Clamp, Un-Threaded Holes (7/8" Dia. Back Canes)	1	2
3	Screw, Socket Head (1/4-20 x 5/8")	1	6
4	Half Clamp, Threaded Holes (7/8" Dia. Back Canes)	1	2
5	Half Clamp, Un-Threaded Holes (7/8" Dia. Back Canes)	1	2
3	Screw, Socket Head (1/4-20 x 5/8")	1	6
4	Half Clamp, Threaded Holes (7/8" Dia. Back Canes)	1	2
5	Half Clamp, Un-Threaded Holes (7/8" Dia. Back Canes)	1	2
5	Half Clamp, Un-Threaded Holes (7/8" Dia. Back Canes)	1	2
3	Screw, Socket Head (1/4-20 x 5/8")	1	6
4	Half Clamp, Threaded Holes (7/8" Dia. Back Canes)	1	2
5	Half Clamp, Un-Threaded Holes (7/8" Dia. Back Canes)	1	2
3	Screw, Socket Head (1/4-20 x 5/8")	1	6
4	Half Clamp, Threaded Holes (7/8" Dia. Back Canes)	1	2

Kit, Double Spreader Bar Mounting Hardware

$102.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 3-5

Catalog Literature

Parts Books for Formula™CG Tilt Only (CGT) Powered Seating
