EQUIPMENT US Site

1

1128353

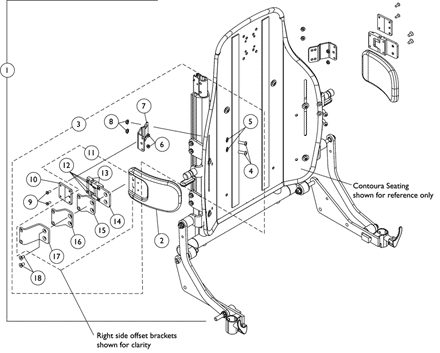

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Pad, Lateral Support - Medium (6" W x 4" H)	1	2
4	Screw, Socket Button (1/4-20 x 3/4")	1	4
5	Washer (1/4 x 1/2 x 1/16")	1	4
6	Locknut (#10-32)	1	4
7	Bracket, Positioning Strap, Black	1	2
8	Locknut (1/4-20)	1	4
9	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	4
10	NLA - Bracket, Mounting, Black	1	2
12	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	4
13	Bracket, Swingaway - Right	1	1
13	NLA - Bracket, Swingaway - Left	1	1
14	Bracket, Flush Mount, Black	1	2
15	NLA - Bracket, Extension Offset, Black (1/2")	1	2
16	NLA - Bracket, Extension Offset, Black (1")	1	2
17	Bracket, Extension Offset, Black (2")	1	2
18	Screw, Socket Flat Head (1/4-20 x 1/2")	1	4
2	Pad, Lateral Support - Medium (6" W x 4" H)	1	2
4	Screw, Socket Button (1/4-20 x 3/4")	1	4
5	Washer (1/4 x 1/2 x 1/16")	1	4
6	Locknut (#10-32)	1	4
7	Bracket, Positioning Strap, Black	1	2
8	Locknut (1/4-20)	1	4
9	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	4
10	NLA - Bracket, Mounting, Black	1	2
12	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	4
13	Bracket, Swingaway - Right	1	1
13	NLA - Bracket, Swingaway - Left	1	1
14	Bracket, Flush Mount, Black	1	2
15	NLA - Bracket, Extension Offset, Black (1/2")	1	2
16	NLA - Bracket, Extension Offset, Black (1")	1	2
17	Bracket, Extension Offset, Black (2")	1	2
18	Screw, Socket Flat Head (1/4-20 x 1/2")	1	4
2	Pad, Lateral Support - Medium (6" W x 4" H)	1	2
4	Screw, Socket Button (1/4-20 x 3/4")	1	4
5	Washer (1/4 x 1/2 x 1/16")	1	4
6	Locknut (#10-32)	1	4
7	Bracket, Positioning Strap, Black	1	2
8	Locknut (1/4-20)	1	4
9	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	4
10	NLA - Bracket, Mounting, Black	1	2
12	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	4
13	Bracket, Swingaway - Right	1	1
13	NLA - Bracket, Swingaway - Left	1	1
14	Bracket, Flush Mount, Black	1	2
15	NLA - Bracket, Extension Offset, Black (1/2")	1	2
16	NLA - Bracket, Extension Offset, Black (1")	1	2
17	Bracket, Extension Offset, Black (2")	1	2
18	Screw, Socket Flat Head (1/4-20 x 1/2")	1	4
2	Pad, Lateral Support - Medium (6" W x 4" H)	1	2
4	Screw, Socket Button (1/4-20 x 3/4")	1	4
5	Washer (1/4 x 1/2 x 1/16")	1	4
6	Locknut (#10-32)	1	4
7	Bracket, Positioning Strap, Black	1	2
8	Locknut (1/4-20)	1	4
9	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	4
10	NLA - Bracket, Mounting, Black	1	2
12	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	4
13	Bracket, Swingaway - Right	1	1
13	NLA - Bracket, Swingaway - Left	1	1
14	Bracket, Flush Mount, Black	1	2
15	NLA - Bracket, Extension Offset, Black (1/2")	1	2
16	NLA - Bracket, Extension Offset, Black (1")	1	2
17	Bracket, Extension Offset, Black (2")	1	2
18	Screw, Socket Flat Head (1/4-20 x 1/2")	1	4
2	Pad, Lateral Support - Medium (6" W x 4" H)	1	2
4	Screw, Socket Button (1/4-20 x 3/4")	1	4
5	Washer (1/4 x 1/2 x 1/16")	1	4
6	Locknut (#10-32)	1	4
7	Bracket, Positioning Strap, Black	1	2
8	Locknut (1/4-20)	1	4
9	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	4
10	NLA - Bracket, Mounting, Black	1	2
12	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	4
13	Bracket, Swingaway - Right	1	1
13	NLA - Bracket, Swingaway - Left	1	1
14	Bracket, Flush Mount, Black	1	2
15	NLA - Bracket, Extension Offset, Black (1/2")	1	2
16	NLA - Bracket, Extension Offset, Black (1")	1	2
17	Bracket, Extension Offset, Black (2")	1	2
18	Screw, Socket Flat Head (1/4-20 x 1/2")	1	4

Kit, Lateral Support Assemblies w/ Medium Pads (Pair)

1

$438.00

A

Create/add to Wishlist

1

1128354

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Pad, Lateral Support - Large (6" W x 5" H)	1	2
4	Screw, Socket Button (1/4-20 x 3/4")	1	4
5	Washer (1/4 x 1/2 x 1/16")	1	4
6	Locknut (#10-32)	1	4
7	Bracket, Positioning Strap, Black	1	2
8	Locknut (1/4-20)	1	4
9	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	4
10	NLA - Bracket, Mounting, Black	1	2
12	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	4
13	Bracket, Swingaway - Right	1	1
13	NLA - Bracket, Swingaway - Left	1	1
14	Bracket, Flush Mount, Black	1	2
15	NLA - Bracket, Extension Offset, Black (1/2")	1	2
16	NLA - Bracket, Extension Offset, Black (1")	1	2
17	Bracket, Extension Offset, Black (2")	1	2
18	Screw, Socket Flat Head (1/4-20 x 1/2")	1	4
2	Pad, Lateral Support - Large (6" W x 5" H)	1	2
4	Screw, Socket Button (1/4-20 x 3/4")	1	4
5	Washer (1/4 x 1/2 x 1/16")	1	4
6	Locknut (#10-32)	1	4
7	Bracket, Positioning Strap, Black	1	2
8	Locknut (1/4-20)	1	4
9	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	4
10	NLA - Bracket, Mounting, Black	1	2
12	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	4
13	Bracket, Swingaway - Right	1	1
13	NLA - Bracket, Swingaway - Left	1	1
14	Bracket, Flush Mount, Black	1	2
15	NLA - Bracket, Extension Offset, Black (1/2")	1	2
16	NLA - Bracket, Extension Offset, Black (1")	1	2
17	Bracket, Extension Offset, Black (2")	1	2
18	Screw, Socket Flat Head (1/4-20 x 1/2")	1	4
2	Pad, Lateral Support - Large (6" W x 5" H)	1	2
4	Screw, Socket Button (1/4-20 x 3/4")	1	4
5	Washer (1/4 x 1/2 x 1/16")	1	4
6	Locknut (#10-32)	1	4
7	Bracket, Positioning Strap, Black	1	2
8	Locknut (1/4-20)	1	4
9	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	4
10	NLA - Bracket, Mounting, Black	1	2
12	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	4
13	Bracket, Swingaway - Right	1	1
13	NLA - Bracket, Swingaway - Left	1	1
14	Bracket, Flush Mount, Black	1	2
15	NLA - Bracket, Extension Offset, Black (1/2")	1	2
16	NLA - Bracket, Extension Offset, Black (1")	1	2
18	Screw, Socket Flat Head (1/4-20 x 1/2")	1	4
17	Bracket, Extension Offset, Black (2")	1	2
2	Pad, Lateral Support - Large (6" W x 5" H)	1	2
4	Screw, Socket Button (1/4-20 x 3/4")	1	4
5	Washer (1/4 x 1/2 x 1/16")	1	4
6	Locknut (#10-32)	1	4
7	Bracket, Positioning Strap, Black	1	2
8	Locknut (1/4-20)	1	4
2	Pad, Lateral Support - Large (6" W x 5" H)	1	2
4	Screw, Socket Button (1/4-20 x 3/4")	1	4
5	Washer (1/4 x 1/2 x 1/16")	1	4
6	Locknut (#10-32)	1	4
9	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	4
10	NLA - Bracket, Mounting, Black	1	2
12	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	4
13	Bracket, Swingaway - Right	1	1
13	NLA - Bracket, Swingaway - Left	1	1
14	Bracket, Flush Mount, Black	1	2
15	NLA - Bracket, Extension Offset, Black (1/2")	1	2
16	NLA - Bracket, Extension Offset, Black (1")	1	2
17	Bracket, Extension Offset, Black (2")	1	2
18	Screw, Socket Flat Head (1/4-20 x 1/2")	1	4
7	Bracket, Positioning Strap, Black	1	2
8	Locknut (1/4-20)	1	4
9	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	4
10	NLA - Bracket, Mounting, Black	1	2
12	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	4
13	Bracket, Swingaway - Right	1	1
13	NLA - Bracket, Swingaway - Left	1	1
14	Bracket, Flush Mount, Black	1	2
15	NLA - Bracket, Extension Offset, Black (1/2")	1	2
16	NLA - Bracket, Extension Offset, Black (1")	1	2
17	Bracket, Extension Offset, Black (2")	1	2
18	Screw, Socket Flat Head (1/4-20 x 1/2")	1	4

Kit, Lateral Support Assemblies w/ Large Pads (Pair)

1

$438.00

A

Create/add to Wishlist

3

1125780

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
4	Screw, Socket Button (1/4-20 x 3/4")	1	4
5	Washer (1/4 x 1/2 x 1/16")	1	4
6	Locknut (#10-32)	1	4
7	Bracket, Positioning Strap, Black	1	2
8	Locknut (1/4-20)	1	4
9	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	4
10	NLA - Bracket, Mounting, Black	1	2
12	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	4
13	Bracket, Swingaway - Right	1	1
13	NLA - Bracket, Swingaway - Left	1	1
14	Bracket, Flush Mount, Black	1	2
15	NLA - Bracket, Extension Offset, Black (1/2")	1	2
16	NLA - Bracket, Extension Offset, Black (1")	1	2
17	Bracket, Extension Offset, Black (2")	1	2
18	Screw, Socket Flat Head (1/4-20 x 1/2")	1	4
4	Screw, Socket Button (1/4-20 x 3/4")	1	4
5	Washer (1/4 x 1/2 x 1/16")	1	4
6	Locknut (#10-32)	1	4
7	Bracket, Positioning Strap, Black	1	2
8	Locknut (1/4-20)	1	4
9	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	4
10	NLA - Bracket, Mounting, Black	1	2
12	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	4
13	Bracket, Swingaway - Right	1	1
13	NLA - Bracket, Swingaway - Left	1	1
14	Bracket, Flush Mount, Black	1	2
15	NLA - Bracket, Extension Offset, Black (1/2")	1	2
16	NLA - Bracket, Extension Offset, Black (1")	1	2
17	Bracket, Extension Offset, Black (2")	1	2
18	Screw, Socket Flat Head (1/4-20 x 1/2")	1	4
4	Screw, Socket Button (1/4-20 x 3/4")	1	4
5	Washer (1/4 x 1/2 x 1/16")	1	4
6	Locknut (#10-32)	1	4
7	Bracket, Positioning Strap, Black	1	2
8	Locknut (1/4-20)	1	4
9	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	4
10	NLA - Bracket, Mounting, Black	1	2
12	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	4
13	Bracket, Swingaway - Right	1	1
13	NLA - Bracket, Swingaway - Left	1	1
14	Bracket, Flush Mount, Black	1	2
15	NLA - Bracket, Extension Offset, Black (1/2")	1	2
16	NLA - Bracket, Extension Offset, Black (1")	1	2
17	Bracket, Extension Offset, Black (2")	1	2
18	Screw, Socket Flat Head (1/4-20 x 1/2")	1	4
13	Bracket, Swingaway - Right	1	1
13	NLA - Bracket, Swingaway - Left	1	1
14	Bracket, Flush Mount, Black	1	2
15	NLA - Bracket, Extension Offset, Black (1/2")	1	2
16	NLA - Bracket, Extension Offset, Black (1")	1	2
17	Bracket, Extension Offset, Black (2")	1	2
18	Screw, Socket Flat Head (1/4-20 x 1/2")	1	4
12	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	4
4	Screw, Socket Button (1/4-20 x 3/4")	1	4
5	Washer (1/4 x 1/2 x 1/16")	1	4
6	Locknut (#10-32)	1	4
7	Bracket, Positioning Strap, Black	1	2
8	Locknut (1/4-20)	1	4
9	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	4
10	NLA - Bracket, Mounting, Black	1	2
4	Screw, Socket Button (1/4-20 x 3/4")	1	4
5	Washer (1/4 x 1/2 x 1/16")	1	4
6	Locknut (#10-32)	1	4
7	Bracket, Positioning Strap, Black	1	2
8	Locknut (1/4-20)	1	4
9	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	4
10	NLA - Bracket, Mounting, Black	1	2
12	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	4
13	Bracket, Swingaway - Right	1	1
13	NLA - Bracket, Swingaway - Left	1	1
14	Bracket, Flush Mount, Black	1	2
15	NLA - Bracket, Extension Offset, Black (1/2")	1	2
16	NLA - Bracket, Extension Offset, Black (1")	1	2
17	Bracket, Extension Offset, Black (2")	1	2
18	Screw, Socket Flat Head (1/4-20 x 1/2")	1	4

Kit, Lateral Support Mounting Hardware (Pair)

1

$336.00

B

Create/add to Wishlist

11

1090198

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
12	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	4
13	Bracket, Swingaway - Right	1	1
14	Bracket, Flush Mount, Black	1	2
15	NLA - Bracket, Extension Offset, Black (1/2")	1	1
16	NLA - Bracket, Extension Offset, Black (1")	1	1
17	Bracket, Extension Offset, Black (2")	1	1
6	NLA - Bracket, Extension Offset, Black (1/2")	1	1
7	NLA - Bracket, Extension Offset, Black (1")	1	1
8	Bracket, Extension Offset, Black (2")	1	1
9	Bracket, Flush Mount, Black	1	2
10	Bracket, Swingaway - Right	1	1
11	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	4
7	NLA - Bracket, Extension Offset, Black (1")	1	1
8	Bracket, Extension Offset, Black (2")	1	1
9	Bracket, Flush Mount, Black	1	2
10	Bracket, Swingaway - Right	1	1
11	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	4
6	NLA - Bracket, Extension Offset, Black (1/2")	1	1
6	NLA - Bracket, Extension Offset, Black (1/2")	1	1
7	NLA - Bracket, Extension Offset, Black (1")	1	1
8	Bracket, Extension Offset, Black (2")	1	1
9	Bracket, Flush Mount, Black	1	2
10	Bracket, Swingaway - Right	1	1
11	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	4
12	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	4
13	Bracket, Swingaway - Right	1	1
14	Bracket, Flush Mount, Black	1	2
15	NLA - Bracket, Extension Offset, Black (1/2")	1	1
16	NLA - Bracket, Extension Offset, Black (1")	1	1
17	Bracket, Extension Offset, Black (2")	1	1
6	NLA - Bracket, Extension Offset, Black (1/2")	1	1
7	NLA - Bracket, Extension Offset, Black (1")	1	1
8	Bracket, Extension Offset, Black (2")	1	1
9	Bracket, Flush Mount, Black	1	2
10	Bracket, Swingaway - Right	1	1
11	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	4
12	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	4
13	Bracket, Swingaway - Right	1	1
14	Bracket, Flush Mount, Black	1	2
15	NLA - Bracket, Extension Offset, Black (1/2")	1	1
16	NLA - Bracket, Extension Offset, Black (1")	1	1
17	Bracket, Extension Offset, Black (2")	1	1
12	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	4
13	Bracket, Swingaway - Right	1	1
14	Bracket, Flush Mount, Black	1	2
15	NLA - Bracket, Extension Offset, Black (1/2")	1	1
16	NLA - Bracket, Extension Offset, Black (1")	1	1
17	Bracket, Extension Offset, Black (2")	1	1
12	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	4
13	Bracket, Swingaway - Right	1	1
14	Bracket, Flush Mount, Black	1	2
15	NLA - Bracket, Extension Offset, Black (1/2")	1	1
16	NLA - Bracket, Extension Offset, Black (1")	1	1
17	Bracket, Extension Offset, Black (2")	1	1
6	NLA - Bracket, Extension Offset, Black (1/2")	1	1
7	NLA - Bracket, Extension Offset, Black (1")	1	1
8	Bracket, Extension Offset, Black (2")	1	1
9	Bracket, Flush Mount, Black	1	2
10	Bracket, Swingaway - Right	1	1
11	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	4

Kit, Swingaway Bracket Assembly w/ Offset Brackets - Right

1

$167.00

C

Create/add to Wishlist

11

1090199

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
12	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	4
13	NLA - Bracket, Swingaway - Left	1	1
14	Bracket, Flush Mount, Black	1	2
15	NLA - Bracket, Extension Offset, Black (1/2")	1	1
16	NLA - Bracket, Extension Offset, Black (1")	1	1
17	Bracket, Extension Offset, Black (2")	1	1
6	NLA - Bracket, Extension Offset, Black (1/2")	1	1
7	NLA - Bracket, Extension Offset, Black (1")	1	1
8	Bracket, Extension Offset, Black (2")	1	1
9	Bracket, Flush Mount, Black	1	2
10	NLA - Bracket, Swingaway - Left	1	1
11	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	4
6	NLA - Bracket, Extension Offset, Black (1/2")	1	1
7	NLA - Bracket, Extension Offset, Black (1")	1	1
8	Bracket, Extension Offset, Black (2")	1	1
9	Bracket, Flush Mount, Black	1	2
10	NLA - Bracket, Swingaway - Left	1	1
11	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	4
7	NLA - Bracket, Extension Offset, Black (1")	1	1
8	Bracket, Extension Offset, Black (2")	1	1
9	Bracket, Flush Mount, Black	1	2
10	NLA - Bracket, Swingaway - Left	1	1
11	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	4
6	NLA - Bracket, Extension Offset, Black (1/2")	1	1
12	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	4
13	NLA - Bracket, Swingaway - Left	1	1
14	Bracket, Flush Mount, Black	1	2
15	NLA - Bracket, Extension Offset, Black (1/2")	1	1
16	NLA - Bracket, Extension Offset, Black (1")	1	1
17	Bracket, Extension Offset, Black (2")	1	1
6	NLA - Bracket, Extension Offset, Black (1/2")	1	1
7	NLA - Bracket, Extension Offset, Black (1")	1	1
8	Bracket, Extension Offset, Black (2")	1	1
9	Bracket, Flush Mount, Black	1	2
10	NLA - Bracket, Swingaway - Left	1	1
11	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	4
12	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	4
13	NLA - Bracket, Swingaway - Left	1	1
14	Bracket, Flush Mount, Black	1	2
15	NLA - Bracket, Extension Offset, Black (1/2")	1	1
16	NLA - Bracket, Extension Offset, Black (1")	1	1
17	Bracket, Extension Offset, Black (2")	1	1
12	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	4
13	NLA - Bracket, Swingaway - Left	1	1
14	Bracket, Flush Mount, Black	1	2
15	NLA - Bracket, Extension Offset, Black (1/2")	1	1
16	NLA - Bracket, Extension Offset, Black (1")	1	1
17	Bracket, Extension Offset, Black (2")	1	1
12	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	4
13	NLA - Bracket, Swingaway - Left	1	1
14	Bracket, Flush Mount, Black	1	2
15	NLA - Bracket, Extension Offset, Black (1/2")	1	1
16	NLA - Bracket, Extension Offset, Black (1")	1	1
17	Bracket, Extension Offset, Black (2")	1	1
6	NLA - Bracket, Extension Offset, Black (1/2")	1	1
7	NLA - Bracket, Extension Offset, Black (1")	1	1
8	Bracket, Extension Offset, Black (2")	1	1
9	Bracket, Flush Mount, Black	1	2
10	NLA - Bracket, Swingaway - Left	1	1
11	NLA - Screw, Socket Flat Head (#10-32 x 1/2")	1	4

Kit, Swingaway Bracket Assembly w/ Offset Brackets - Left

1

$167.00

C

Note Code	Definition
A	Includes items 2, 4-10 and 12-18
B	Includes items 4-10 and 12-18
C	Includes items 12-17

Accessories - Lateral Supports - Tarsys - Contoura Seating CSLM/CSLL

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Assembly Part Notes

Catalog Literature

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Accessories - Lateral Supports - Tarsys - Contoura Seating CSLM/CSLL

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Create/add to Wishlist

Assembly Part Notes

Catalog Literature
