Canes - Back - Solid Straight w/o Push Handle & Mtg. Hdwr., Conventional Tilt

Print this page

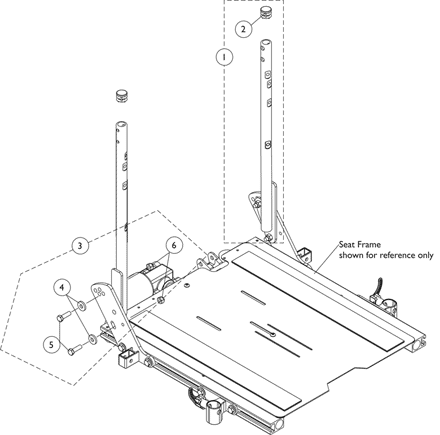

Solid Straight Back Canes w/o Push Handles and Mounting Hardware

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1128394

NLA - Kit, Back Cane w/o Push Handle, Solid Straight w/ Plug Button - Right

N/A

Create/add to Wishlist

1128395

NLA - Kit, Back Cane w/o Push Handle, Solid Straight w/ Plug Button - Left

N/A

Create/add to Wishlist

1128396

NLA - Kit, Back Canes w/o Push Handle, Solid Straight w/ Plug Button (Pair)

N/A

Create/add to Wishlist

1027097

Plug Button, Black (3/4")

$7.50

Create/add to Wishlist

1125733

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
4	Washer, Flat (21/64 x 53/64 x 7/64")	1	2
5	Screw, Hex Head (5/16-18 x 1")	1	2
6	Locknut (5/16-18)	1	2
4	Washer, Flat (21/64 x 53/64 x 7/64")	1	2
5	Screw, Hex Head (5/16-18 x 1")	1	2
6	Locknut (5/16-18)	1	2
30	Screw, Hex Head (5/16-18 x 1")	1	2
31	Locknut (5/16-18)	1	2
32	Washer, Flat (21/64 x 53/64 x 7/64")	1	2
4	Washer, Flat (21/64 x 53/64 x 7/64")	1	2
5	Screw, Hex Head (5/16-18 x 1")	1	2
6	Locknut (5/16-18)	1	2
4	Washer, Flat (21/64 x 53/64 x 7/64")	1	2
5	Screw, Hex Head (5/16-18 x 1")	1	2
6	Locknut (5/16-18)	1	2

Kit, Solid Straight Back Cane w/o Push Handle, Mounting Hardware

Create/add to Wishlist

1079247

Washer, Flat (21/64 x 53/64 x 7/64")

$10.00

Create/add to Wishlist

1028478

NLA - Screw, Hex Head (5/16-18 x 1-1/4")

N/A

Create/add to Wishlist

1026158

Locknut (5/16-18)

$9.20

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Back height from the seat pan to the top of the back cane will measure approximately 20-1/2" high.
B	Includes items 4-6

Catalog Literature

Parts Books for Formula™CG Tilt Only (CGT) Powered Seating
