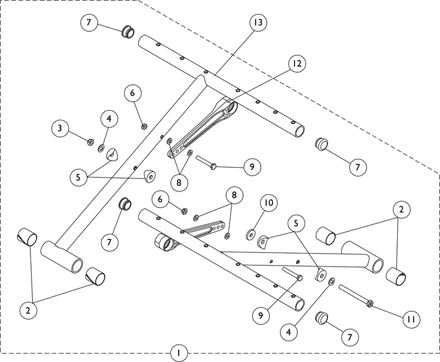

Frames - Crossbraces & Hardware - Non-Heavy Duty

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1130544

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Sleeve, Bearing	1	4
3	Locknut (5/16-24)	1	1
4	Washer, Flat (5/16 x 5/8 x 1/16")	1	2
5	Spacer, Coved (3/4 x 1 x 1/2")	1	4
6	Locknut (1/4-28)	1	2
7	Plug Button, Black (1")	1	4
8	NLA - Washer (1/4 x 5/8 x 1/16")	1	4
9	Screw, Hex Head (1/4-28 x 1-3/4")	1	2
10	Washer, Nylon (5/16 x 7/8 x 1/8")	1	1
11	NLA - Screw, Hex Head (5/16-24 x 3-1/4")	1	1

Kit, Crossbrace Hardware

$73.00

Create/add to Wishlist

1131374

Link, Pivot, Black (14 - 15" W)

$14.00

Create/add to Wishlist

1128054

Link, Pivot, Black (16 - 17" W)

$14.00

Create/add to Wishlist

1128055

Link, Pivot, Black (18 - 20" W)

$9.00

Create/add to Wishlist

See Chart

Added to Cart

Chair Depth	14" Wide	15" Wide	16" Wide	17" Wide	18" Wide	19" Wide	20" Wide
14" - Right	1130413 MSRP: $114.00	1130423	1130433 MSRP: $108.00	1130443	1130453	N/A	N/A
14" - Left	1130414 MSRP: $114.00	1130424	1130434	1130444	1130454	N/A	N/A
15" - Right	1130415	1130425	1130435	1130445 MSRP: $108.00	1130455	N/A	N/A
15" - Left	1130416	1130426	1130436	1130446 MSRP: $108.00	1130456	N/A	N/A
16" - Right	1130417	1130427 MSRP: $108.00	1130437 MSRP: $114.00	1130447 MSRP: $114.00	1130457 MSRP: $114.00	1130467 MSRP: $114.00	1130477 MSRP: $114.00
16" - Left	1130418	1130428	1130438 MSRP: $114.00	1130448 MSRP: $114.00	1130458 MSRP: $114.00	1130468 MSRP: $108.00	1130478 MSRP: $114.00
17" - Right	1130419	1130429	1130439 MSRP: $114.00	1130449 MSRP: $114.00	1130459 MSRP: $114.00	1130469 MSRP: $114.00	1130479 MSRP: $114.00
17" - Left	1130420	1130430	1130440 MSRP: $114.00	1130450 MSRP: $114.00	1130460 MSRP: $114.00	1130470 MSRP: $114.00	1130480 MSRP: $114.00
18" - Right	1130421	1130431	1130441 MSRP: $114.00	1130451 MSRP: $114.00	1130461 MSRP: $114.00	1130471 MSRP: $114.00	1130481
18" - Left	1130422	1130432	1130442 MSRP: $114.00	1130452 MSRP: $114.00	1130462 MSRP: $114.00	1130472 MSRP: $114.00	1130482
19" - Right	N/A	N/A	N/A	N/A	1130463 MSRP: $114.00	1130473 MSRP: $102.00	1130483 MSRP: $112.00
19" - Left	N/A	N/A	N/A	N/A	1130464 MSRP: $114.00	1130474 MSRP: $102.00	1130484
20" - Right	N/A	N/A	N/A	N/A	1130465 MSRP: $114.00	1130475	1130485 MSRP: $114.00
20" - Left	N/A	N/A	N/A	N/A	1130466 MSRP: $114.00	1130476	1130486 MSRP: $114.00

Create/add to Wishlist

#13 Crossbraces - Non Heavy Duty

N/A

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2-11
B	Non Heavy Duty, 14-15" Wide chairs
C	Non Heavy Duty, 16-17" Wide chairs
D	Non Heavy Duty, 18-20" Wide chairs
