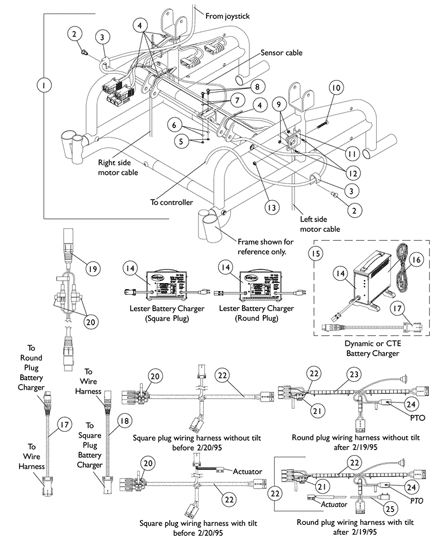

Wiring Harnesses & Chargers - MKIV Electronics
| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes |
|---|
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | On 7/18/01 Lester 8 amp. battery chargers were reinstated. The square plug model was offered on chairs made before 2/20/95. |
| B | On 8/26/02 a (PTO) power take off connector was added to the wire harness. Item 24 sensor cable is included with the tilt wire harness part number 1053833. |
| C | Includes items 2-13 |
| D | Before 2/20/95 |
| E | After 2/19/95 |
| F | The wire harness takes a quantity of 2 fuses |
| G | Before 4/1/03 |
| H | After 3/31/03 |
| I | CTE charger introduced and standard on-chair 4/1/04. Used on Gel Cell or AGM (Absorbed Glass Mat) batteries. For wet cell batteries refer to the Lester charger. |
| I1 | CTE charger looks exactly the same as Dynamic's charger except for the company name that is silk screened on the narrow side panel, where the charger plug is (hard wired) attached. Serial number starts with 04A00000001. |
| J | CTE charger without the square plug adapter cord is for chairs equipped with a round plug charger connector |
| K | No longer available as a service part. |
| L | No longer available as a service part. Please use 1121086 as its replacement. |
| M | Use Battery Charger part number 1123249 as a replacement. |
