Battery Boxes & Tray Assembly - MK6i Electronics

Print this page

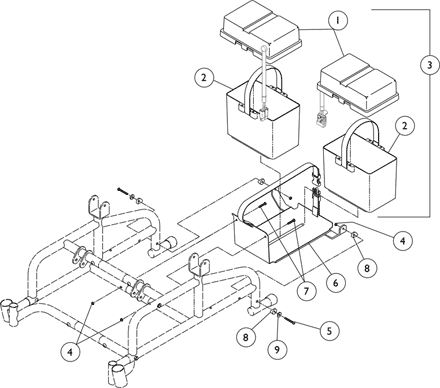

Battery Boxes and Tray Assembly

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1115248	NLA - Top, Battery Box, Front, 22NF	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1097003	Battery Box Top, Rear, 22NF	1	1	$129.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1089385	Fuse, MIDI (Non-G/B & G/B) (80 AMP)	1	1	$29.00	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1057944	Battery Box Bottom with Strap, 22NF	1	1	$80.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1057954	NLA - Strap, Battery	1	1	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1041433	NLA - Pin, Handle	1	2	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1115917	NLA - Battery Box Assembly, Front, 22NF	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1097007	Battery Box Assembly, Rear, 22NF	1	1	$187.00	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1025195	Locknut (1/4-20)	1	4	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1001762	Screw, Socket Button Head (1/4-20 x 1-3/4")	1	2	$9.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1036044	NLA - Tray, Battery with Buckle Strap	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1008432	Screw, Socket Button Head (1/4-20 x 1-1/4")	1	2	$9.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	40157X019	Coved Spacer	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1018739	Washer (1/4 x 5/8 x 3/32")	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1058618	NLA - Hardware, Battery Terminal, 22NF Batteries (Pair)	2	1	N/A	C ,D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	It is recommended that terminal hdwr. part #1058618 for 22NF batteries be ordered when a new battery box top is ordered.
B	Includes Battery Box Top and Bottom (items 1 and 2).
C	Not Shown.
D	Hardware inlcudes battery clamps, battery clamp caps (red and black), small battery terminal caps (red and black), 1/4-20 x 7/8" hex flange screws, 1/4-20 hex flange nuts, cable ties and locking tab washers for two batteries.

Catalog Literature

Parts Books for Power Tiger™
