R.I.M. Head Control Mounting Hardware (RIMHW)

Print this page

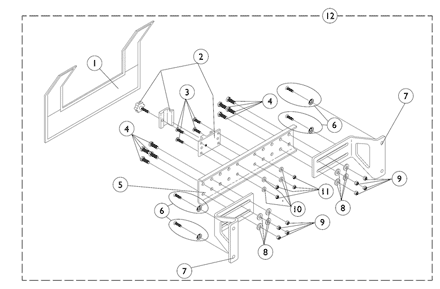

R.I.M. Head Control Mounting Hardware

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1055149	Cover, Nylon	1	1		B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1055151	NLA - Cover, Nylon	1	1	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1055148	NLA - Clamp with Knob, Two-Piece	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1003645	Screw, Socket Button Head (#10-32 x 3/4")	1	4	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	7930326	NLA - Package, Screw, Hex Head (1/4-20 x 3/4")	25	8	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1054931	NLA - Bracket, Attaching, Black (12 - 18" W)	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1054933	NLA - Bracket, Attaching, Black (19 - 24" W)	1	1	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1031095	Screws with Washers (#10-16 x 7/8")	4	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1076284	Screw w/ Washer (#10 x 7/8")	1	4	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1054929	NLA - Bracket, Wing, Black	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1026907	Washer (1/4 x 1/2 x 1/16")	1	8	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	7930333	Locknut (1/4-20)	25	8	$44.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1026034	NLA - Washer, Nylon (3/16 x 7/16 x 1/8")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	7930332	NLA - Locknut, High Profile (#10-32)	25	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1056347	Hardware, Rim Control Mounting (RIMHW) (12-18" W)	1	1		B ,A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1056348	Hardware, Rim Control Mounting (RIMHW) (19-24" W)	1	1	$391.00	C ,A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes items 1-11
B	For 12-18" wide chairs
C	For 19-24" wide chairs

Catalog Literature

Parts Books for Electronics MK6i™
