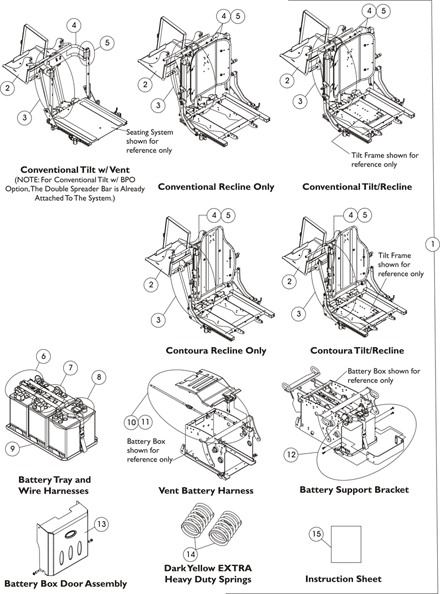

Accessories - Vent Tray Kits

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

See Chart

Added to Cart

Item #	Description	Conv. Tilt w/ Conv. Back 16" Wide	Conv. Tilt w/ Conv. Back 17" Wide	Conv. Tilt w/ Conv. Back 18" Wide	Conv. Tilt w/ Conv. Back 19" Wide	Conv. Tilt w/ Conv. Back 20" Wide	Qty. Per Asbly.
1.	Vent Tray Kit & Service Manual	Note-A 1142994- NLA	Note-A 1142995- NLA	Note-A 1142996- NLA	Note-A 1142997- NLA	Note-A 1142998- NLA	1
2.	Kit, Vent Tray Assembly without Mounting Hardware	1125708	1125708	1125708	1125708	1125708	1
3.	Kit, Vent Tray Mounting Hardware	1125805	1125805	1125805	1125805	1125805	1
4.	Spreader Bar Assembly	0013602 MSRP: $249.00	0013702 MSRP: $238.00	0013802 MSRP: $249.00	0013902	0014002 MSRP: $249.00	1
5.	Spreader Bar Mounting Hardware	1125761 MSRP: $102.00	1125761 MSRP: $102.00	1125761 MSRP: $102.00	1125761 MSRP: $102.00	1125761 MSRP: $102.00	1
6.	Battery Wire Harness with Terminal Hardware, 22NF Rear	1120363 MSRP: $133.00	1120363 MSRP: $133.00	1120363 MSRP: $133.00	1120363 MSRP: $133.00	1120363 MSRP: $133.00	1
7.	Battery Wire Harness with Terminal Hardware, 22NF Front	1120362 MSRP: $73.00	1120362 MSRP: $73.00	1120362 MSRP: $73.00	1120362 MSRP: $73.00	1120362 MSRP: $73.00	1
8.	Battery Wire Harness with Terminal Hardware, 22NF Vent	1121143 MSRP: $72.00	1121143 MSRP: $72.00	1121143 MSRP: $72.00	1121143 MSRP: $72.00	1121143 MSRP: $72.00	1
9.	Battery Tray Assembly, TDX 22NF For Vent	1121142- NLA	1121142- NLA	1121142- NLA	1121142- NLA	1121142- NLA	1
10.	Kit, Vent Battery Harness Assembly with Hardware	1121029- NLA	1121029- NLA	1121029- NLA	1121029- NLA	1121029- NLA	1
11.	Kit, Vent Battery Harness Assembly with Hardware For TRBKTS Option	1139531- NLA	1139531- NLA	1139531- NLA	1139531- NLA	1139531- NLA	1
12.	Kit, Battery Support Bracket Assembly - For Vent "Option" System w/ 22NF Batteries	1139541- NLA	1139541- NLA	1139541- NLA	1139541- NLA	1139541- NLA	1
13.	Kit, Battery Box Door Assembly, 22NF Long (For Vent)	1121072- NLA	1121072- NLA	1121072- NLA	1121072- NLA	1121072- NLA	1
14.	Spring, Dark Yellow; EXTRA Heavy Duty	Note-C 1125645- NLA	Note-C 1125645- NLA	Note-C 1125645- NLA	Note-C 1125645- NLA	Note-C 1125645- NLA	2
15.	Instruction Sheet, Formula TRE Vent Tray Kit	1143185- NLA	1143185- NLA	1143185- NLA	1143185- NLA	1143185- NLA	1

Create/add to Wishlist

See chart-note

Conventional Tilt w/ Conventional Back 16, 17, 18, 19, 20" Wide

N/A

See Chart

Added to Cart

Item #	Description	Contoura Tilt & T/R	Contoura Recline	Qty. Per Asbly.
1.	Vent Tray Kit & Service Manual	Note-A 1143008- NLA	Note-A 1143009- NLA	1
2.	Kit, Vent Tray Assembly without Mounting Hardware	1125708	1125708	1
3.	Kit, Vent Tray Mounting Hardware	1125800- NLA	1125819- NLA	1
4.	Spreader Bar Assembly	1125788- NLA	1125788- NLA	1
5.	Spreader Bar Mounting Hardware	1125765 MSRP: $72.00	1125765 MSRP: $72.00	1
6.	Battery Wire Harness with Terminal Hardware, 22NF Rear	1120363 MSRP: $133.00	1120363 MSRP: $133.00	1
7.	Battery Wire Harness with Terminal Hardware, 22NF Front	1120362 MSRP: $73.00	1120362 MSRP: $73.00	1
8.	Battery Wire Harness with Terminal Hardware, 22NF Vent	1121143 MSRP: $72.00	1121143 MSRP: $72.00	1
9.	Battery Tray Assembly, TDX 22NF For Vent	1121142- NLA	1121142- NLA	1
10.	Kit, Vent Battery Harness Assembly with Hardware	1121029	1121029	1
11.	Kit, Vent Battery Harness Assembly with Hardware For TRBKTS Option	1139531	1139531	1
12.	Kit, Battery Support Bracket Assembly - For Vent "Option" System w/ 22NF Batteries	1139541- NLA	1139541- NLA	1
13.	Kit, Battery Box Door Assembly, 22NF Long (For Vent)	1121072- NLA	1121072- NLA	1
14.	Spring, Dark Yellow; EXTRA Heavy Duty	Note-C 1125645- NLA	Note-C 1125645- NLA	2
15.	Instruction sheet, Formula TRE Vent Tray Kit	1143185- NLA	1143185- NLA	1

Create/add to Wishlist

See chart-note

Contoura Tilt, Tilt/Recline and Recline

N/A

See Chart

Added to Cart

Item #	Description	Conv. Tilt w/ Conv. Back 21" Wide	Conv. Tilt w/ Conv. Back 22" Wide	Conv. Tilt w/ Conv. Back 23" Wide	Conv. Tilt w/ Conv. Back 24" Wide	Conv. Tilt w/ BPO Option	Qty. Per Asbly.
1.	Vent Tray Kit & Service Manual	Note-A 1142999- NLA	Note-A 1143000- NLA	Note-A 1143001- NLA	Note-A 1143002- NLA	Note-A 1143003- NLA	1
2.	Kit, Vent Tray Assembly without Mounting Hardware	1125708	1125708	1125708	1125708	1125708	1
3.	Kit, Vent Tray Mounting Hardware	1125805	1125805	1125805	1125805	1125805	1
4.	Spreader Bar Assembly	0014102	0014202	0284202- NLA	0284302- NLA	N/A	1
5.	Spreader Bar Mounting Hardware	1125761 MSRP: $102.00	1125761 MSRP: $102.00	1125761 MSRP: $102.00	1125761 MSRP: $102.00	N/A	1
6.	Battery Wire Harness with Terminal Hardware, 22NF Rear	1120363 MSRP: $133.00	1120363 MSRP: $133.00	1120363 MSRP: $133.00	1120363 MSRP: $133.00	1120363 MSRP: $133.00	1
7.	Battery Wire Harness with Terminal Hardware, 22NF Front	1120362 MSRP: $73.00	1120362 MSRP: $73.00	1120362 MSRP: $73.00	1120362 MSRP: $73.00	1120362 MSRP: $73.00	1
8.	Battery Wire Harness with Terminal Hardware, 22NF Vent	1121143 MSRP: $72.00	1121143 MSRP: $72.00	1121143 MSRP: $72.00	1121143 MSRP: $72.00	1121143 MSRP: $72.00	1
9.	Battery Tray Assembly, TDX 22NF For Vent	1121142- NLA	1121142- NLA	1121142- NLA	1121142- NLA	1121142- NLA	1
10.	Kit, Vent Battery Harness Assembly with Hardware	1121029	1121029	1121029	1121029	1121029	1
11.	Kit, Vent Battery Harness Assembly with Hardware For TRBKTS Option	1139531	1139531	1139531	1139531	1139531	1
12.	Kit, Battery Support Bracket Assembly - For Vent "Option" System w/ 22NF Batteries	1139541- NLA	1139541- NLA	1139541- NLA	1139541- NLA	1139541- NLA	1
13.	Kit, Battery Box Door Assembly, 22NF Long (For Vent)	1121072- NLA	1121072- NLA	1121072- NLA	1121072- NLA	1121072- NLA	1
14.	Spring, Dark Yellow; EXTRA Heavy Duty	Note-C 1125645- NLA	Note-C 1125645- NLA	Note-C 1125645- NLA	Note-C 1125645- NLA	Note-C 1125645- NLA	2
15.	Instruction Sheet, Formula TRE Vent Tray Kit	1143185- NLA	1143185- NLA	1143185- NLA	1143185- NLA	1143185- NLA	1

Create/add to Wishlist

See chart-note

(Conventional Tilt w/ Conventional Back 21, 22, 23, 24" Wide) & (Conventional Tilt w/ BPO Option)

N/A

See Chart

Added to Cart

Item #	Description	Conv. Recline 16-20" Wide	Conv. Recline 20-24" Wide	Conv. Tilt/Recline 16-20" Wide	Conv. Tilt/Recline 20-24" Wide	Qty. Per Asbly.
1.	Vent Tray Kit & Service Manual	Note-A 1143004- NLA	Note-A 1143005- NLA	Note-A 1143006- NLA	Note-A 1143007- NLA	1
2.	Kit, Vent Tray Assembly without Mounting Hardware	1125708	1125708	1125708	1125708	1
3.	Kit, Vent Tray Mounting Hardware	1125819- NLA	1125819- NLA	1125800	1125800	1
4.	Spreader Bar Assembly	1125767- NLA	1125769- NLA	1125767- NLA	1125769- NLA	1
5.	Spreader Bar Mounting Hardware	1125765 MSRP: $72.00	1125765 MSRP: $72.00	1125765 MSRP: $72.00	1125765 MSRP: $72.00	1
6.	Battery Wire Harness with Terminal Hardware, 22NF Rear	1120363 MSRP: $133.00	1120363 MSRP: $133.00	1120363 MSRP: $133.00	1120363 MSRP: $133.00	1
7.	Battery Wire Harness with Terminal Hardware, 22NF Front	1120362 MSRP: $73.00	1120362 MSRP: $73.00	1120362 MSRP: $73.00	1120362 MSRP: $73.00	1
8.	Battery Wire Harness with Terminal Hardware, 22NF Vent	1121143 MSRP: $72.00	1121143 MSRP: $72.00	1121143 MSRP: $72.00	1121143 MSRP: $72.00	1
9.	Battery Tray Assembly, TDX 22NF For Vent	1121142- NLA	1121142- NLA	1121142- NLA	1121142- NLA	1
10.	Kit, Vent Battery Harness Assembly with Hardware	1121029	1121029	1121029	1121029	1
11.	Kit, Vent Battery Harness Assembly with Hardware For TRBKTS Option	1139531	1139531	1139531	1139531	1
12.	Kit, Battery Support Bracket Assembly - For Vent "Option" System w/ 22NF Batteries	1139541- NLA	1139541- NLA	1139541- NLA	1139541- NLA	1
13.	Kit, Battery Box Door Assembly, 22NF Long (For Vent)	1121072- NLA	1121072- NLA	1121072- NLA	1121072- NLA	1
14.	Spring, Dark Yellow; EXTRA Heavy Duty	Note-C 1125645- NLA	Note-C 1125645- NLA	Note-C 1125645- NLA	Note-C 1125645- NLA	2
15.	Instruction Sheet, Formula TRE Vent Tray Kit	1143185- NLA	1143185- NLA	1143185- NLA	1143185- NLA	1

Create/add to Wishlist

See chart-note

Conventional Recline, Tilt/Recline 16-24" Wide

N/A

Catalog Literature

Parts Books for Formula™ TRE Powered Seating

Part/Kit Description	Qty/Pkg	Qty/Asbly
Nut, Hex with Nylon Cap (1/4-20)	1	2
Spacer, Coved (1/4 x 3/4 x 11/32")	1	4
Screw, Socket Button Head (1/4-20 x 1-1/4")	1	2
NLA - Decal, Warning, Approved Charger and Harness	1	1
Locknut (1/4-20)	1	4
NLA - Vent Tray Hanger Assembly	1	1
NLA - Spacer	1	2
NLA - Tray, Vent	1	1
NLA - Plug, Slide Tube	1	2
NLA - Bracket, Vent Tray, Black	1	1
Lockwasher, Split (1/4")	1	2
NLA - Screw, Socket Button Head (1/4-20 x 1/2")	1	4
NLA - Frame, Vent Tray, Upper Support, Black	1	1
NLA - Screw, Socket Button Head (1/4-20 x 2")	1	2
NLA - Strap and Buckle Assembly	1	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
Nut, Hex with Nylon Cap (1/4-20)	1	2
Spacer, Coved (1/4 x 3/4 x 11/32")	1	4
Screw, Socket Button Head (1/4-20 x 1-1/4")	1	2
NLA - Decal, Warning, Approved Charger and Harness	1	1
Locknut (1/4-20)	1	4
NLA - Vent Tray Hanger Assembly	1	1
NLA - Spacer	1	2
NLA - Tray, Vent	1	1
NLA - Plug, Slide Tube	1	2
NLA - Bracket, Vent Tray, Black	1	1
Lockwasher, Split (1/4")	1	2
NLA - Screw, Socket Button Head (1/4-20 x 1/2")	1	4
NLA - Frame, Vent Tray, Upper Support, Black	1	1
NLA - Screw, Socket Button Head (1/4-20 x 2")	1	2
NLA - Strap and Buckle Assembly	1	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
Nut, Hex with Nylon Cap (1/4-20)	1	2
Spacer, Coved (1/4 x 3/4 x 11/32")	1	4
Screw, Socket Button Head (1/4-20 x 1-1/4")	1	2
NLA - Decal, Warning, Approved Charger and Harness	1	1
Locknut (1/4-20)	1	4
NLA - Vent Tray Hanger Assembly	1	1
NLA - Spacer	1	2
NLA - Tray, Vent	1	1
NLA - Plug, Slide Tube	1	2
NLA - Bracket, Vent Tray, Black	1	1
Lockwasher, Split (1/4")	1	2
NLA - Screw, Socket Button Head (1/4-20 x 1/2")	1	4
NLA - Frame, Vent Tray, Upper Support, Black	1	1
NLA - Screw, Socket Button Head (1/4-20 x 2")	1	2
NLA - Strap and Buckle Assembly	1	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
Nut, Hex with Nylon Cap (1/4-20)	1	2
Spacer, Coved (1/4 x 3/4 x 11/32")	1	4
Screw, Socket Button Head (1/4-20 x 1-1/4")	1	2
NLA - Decal, Warning, Approved Charger and Harness	1	1
Locknut (1/4-20)	1	4
NLA - Vent Tray Hanger Assembly	1	1
NLA - Spacer	1	2
NLA - Tray, Vent	1	1
NLA - Plug, Slide Tube	1	2
NLA - Bracket, Vent Tray, Black	1	1
Lockwasher, Split (1/4")	1	2
NLA - Screw, Socket Button Head (1/4-20 x 1/2")	1	4
NLA - Frame, Vent Tray, Upper Support, Black	1	1
NLA - Screw, Socket Button Head (1/4-20 x 2")	1	2
NLA - Strap and Buckle Assembly	1	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
Nut, Hex with Nylon Cap (1/4-20)	1	2
Spacer, Coved (1/4 x 3/4 x 11/32")	1	4
Screw, Socket Button Head (1/4-20 x 1-1/4")	1	2
NLA - Decal, Warning, Approved Charger and Harness	1	1
Locknut (1/4-20)	1	4
NLA - Vent Tray Hanger Assembly	1	1
NLA - Spacer	1	2
NLA - Tray, Vent	1	1
NLA - Plug, Slide Tube	1	2
NLA - Bracket, Vent Tray, Black	1	1
Lockwasher, Split (1/4")	1	2
NLA - Screw, Socket Button Head (1/4-20 x 1/2")	1	4
NLA - Frame, Vent Tray, Upper Support, Black	1	1
NLA - Screw, Socket Button Head (1/4-20 x 2")	1	2
NLA - Strap and Buckle Assembly	1	1

Accessories - Vent Tray Kits

Create/add to Wishlist

Create/add to Wishlist

Chart Part Notes

Create/add to Wishlist

Create/add to Wishlist

Chart Part Notes

Create/add to Wishlist

Create/add to Wishlist

Chart Part Notes

Create/add to Wishlist

Create/add to Wishlist

Chart Part Notes

Catalog Literature

Part/Kit Description	Qty/Pkg	Qty/Asbly
Washer, Flat (21/64 x 53/64 x 7/64")	1	1
Washer (1/4 x 1/2 x 1/16")	1	6
NLA - Screw, Shoulder Hex Socket Head (1/4 x 1", #10-24)	1	6
NLA - Washer, Steel (7/8 x 3/8 x 1/16")	1	8
NLA - Spacer (1/4 x 1/2 x 5/32")	1	4
NLA - Washer, Nylon (25/64 x 7/8 x 1/32")	1	2
NLA - Screw, Shoulder Hex Socket Head (1/4 x 1-3/4", #10-24)	1	2
Screw, Socket Button (1/4-20 x 3/4")	1	4
Locknut (1/4-20)	1	5
Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
NLA - Vent Pivot Tube Assembly, Lower	1	2
NLA - Bracket, Lower Vent Pivot, Black - Right	1	1
NLA - Bracket, Lower Vent Pivot, Black - Left	1	1
NLA - Bracket, Vent Tray Hanger, Black	1	1
Vent Pivot Tube Assembly, Bent	1	2
Spacer, Nylon (1/4 x 2 x 3/4")	1	2
Screw, Shoulder Hex Socket Head (5/16" x 3", 1/4-20)	1	1
NLA - Spacer	1	4
NLA - Locknut (#10-24)	1	8

Part/Kit Description	Qty/Pkg	Qty/Asbly
Half Clamp, Un-Threaded Holes (7/8" Dia. Back Canes)	1	2
Half Clamp, Threaded Holes (7/8" Dia. Back Canes)	1	2
Screw, Socket Head (1/4-20 x 5/8")	1	6

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Hex Head w/ Patch (1/4-20 x 1/2")	1	8
Washer (1/4 x 1/2 x 1/16")	1	8
T-Nut (1/4-20)	1	8

Part/Kit Description	Qty/Pkg	Qty/Asbly
Harness, Vent Battery	1	1
NLA - Harness, Vent Battery Extension	1	1
Screw, Phillips Pan Head (#8-16 x 5/8")	1	2
Tie Wrap (5-5/8" L)	1	4
NLA - Grommet, Rubber	1	1

Part/Kit Description	Qty/Pkg	Qty/Asbly
Harness, Vent Battery Extension, TRBKTS Option	1	1
NLA - Grommet, Rubber For TRBKTS Option	1	1
Harness, Vent Battery	1	1
Screw, Phillips Pan Head (#8-16 x 5/8")	1	2
Tie Wrap (5-5/8" L)	1	4
