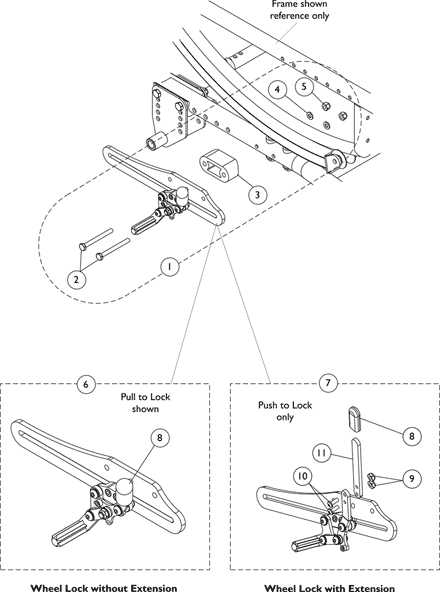

Wheel Locks & Attaching Hardware - Push/Pull to Lock (After 5/21/06)

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1140251

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	NLA - Screw, Hex Head (1/4-28 x 2-1/2")	1	4
3	NLA - Spacer, Bracket	1	2
4	Washer (1/4 x 1/2 x 1/16")	1	4
5	Locknut (1/4-28)	1	4
2	NLA - Screw, Hex Head (1/4-28 x 2-3/4")	1	4
3	Spacer, Bracket	1	2
4	Washer (1/4 x 1/2 x 1/16")	1	4
5	Locknut (1/4-28)	1	4

NLA - Kit, Wheel Lock Mounting Hardware

N/A

Create/add to Wishlist

See Chart

Added to Cart

Wheel Lock Type (Push/Pull)		Part Number
Push to Lock - Right		1140848- NLA
Push to Lock - Left		1140849- NLA
Pull to Lock - Right		1140846- NLA
Pull to Lock - Left		1140847- NLA

Create/add to Wishlist

#6 Wheel Lock Assembly without Extension Handle

N/A

Create/add to Wishlist

See Chart

Added to Cart

Wheel Lock Type (Push Only)		Part Number
Push to Lock - Right		1140850- NLA
Push to Lock - Left		1140851- NLA

Create/add to Wishlist

#7 Wheel Lock Assembly with Bolt-On Extension Handle (EXTLOCK)

N/A

Create/add to Wishlist

1127688

Package, Plastic Tip, Black

$18.00

Create/add to Wishlist

1025731

Locknut (#10-32)

$8.00

Create/add to Wishlist

1026114

Screw, Phillips Pan Head (#10-32 x 1/2")

$8.00

Create/add to Wishlist

1127851

Extension, Wheel Lock

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2-5. Contains enough hardware for pair of wheel locks.

Catalog Literature

Parts Books for Solara® 2G Spree GT™
