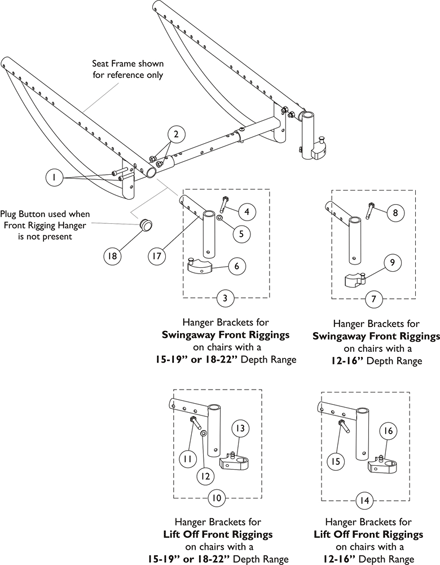

Front Riggings - Hanger Assembly (After 5/21/06)

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1074640

Screw, Allen Head (1/4-28 x 1-1/4")

$8.00

Create/add to Wishlist

1085111

Nut, Hex (1/4-28)

$10.00

Create/add to Wishlist

1054866

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
5	Screw, Socket Head w/ Patch (1/4-20 x 2")	1	2
6	NLA - Washer, Steel (1/4 x 1/2 x 3/64")	1	2
7	NLA - Block, Sector - Right	1	1
7	NLA - Block, Sector - Left	1	1
4	Screw, Hex Head w/ Patch (1/4-20 x 2")	1	2
5	Washer (1/4 x 1/2 x 1/16")	1	2
6	NLA - Block, Sector - Right	1	1
6	NLA - Block, Sector - Left	1	1
4	Screw, Hex Head w/ Patch (1/4-20 x 2")	1	2
5	Washer (1/4 x 1/2 x 1/16")	1	2
6	NLA - Block, Sector - Right	1	1
6	NLA - Block, Sector - Left	1	1
5	Screw, Socket Head w/ Patch (1/4-20 x 2")	1	2
6	NLA - Washer, Steel (1/4 x 1/2 x 3/64")	1	2
7	NLA - Block, Sector - Right	1	1
N/S	NLA - Block, Sector - Left	1	1

Kit, Sector Block Hardware (Pair)

$55.00

Create/add to Wishlist

1137404

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
27	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
28	Block, Sector - Right	1	1
28	Block, Sector - Left	1	1
8	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
9	Block, Sector - Right	1	1
9	Block, Sector - Left	1	1

Kit, Sector Block Hardware

$77.00

Create/add to Wishlist

1142975

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
	Washer (1/4 x 1/2 x 1/16")	1	2
	Block, Sector - Right	1	1
	Block, Sector - Left	1	1
	Screw, Socket Head (1/4-20 x 1-3/4")	1	2
	NLA - Washer, Steel (1/4 x 1/2 x 3/64")	1	2
	Block, Sector - Right	1	1
	Block, Sector - Left	1	1
10	Screw, Socket Head (1/4-20 x 1-3/4")	1	2
11	NLA - Washer, Steel (1/4 x 1/2 x 3/64")	1	2
12	Block, Sector - Right	1	1
12	Block, Sector - Left	1	1
11	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
12	Washer (1/4 x 1/2 x 1/16")	1	2
13	Block, Sector - Right	1	1
13	Block, Sector - Left	1	1
10	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
11	Washer (1/4 x 1/2 x 1/16")	1	2
12	Block, Sector - Right	1	1
12	Block, Sector - Left	1	1

Kit, Sector Block Hardware, Lift Off (Pair)

$123.00

Create/add to Wishlist

1142950

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
15	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	2
16	NLA - Block, Sector - Right	1	1
16	NLA - Block, Sector - Left	1	1

NLA - Kit, Sector Block Hardware

N/A

Create/add to Wishlist

1086389

Tube, Support, Front Rigging Hanger, Black - Right

$40.00

Create/add to Wishlist

1086390

Tube, Support, Front Rigging Hanger, Black - Left

$40.00

Create/add to Wishlist

1127676

Package, Plug Button, Black (1")

$28.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Chairs with Swingaway Front Riggings that have a depth range of 15-19" or 18-22". Includes items 4-6.
B	Chairs with Swingaway Front Riggings that have a depth range of 12-16". Includes items 8-9.
C	Chairs with Lift Off Front Riggings that have a depth range of 15-19" or 18-22". Includes items 11-13.
D	Chairs with Lift Off Front Riggings that have a depth range of 12-16". Includes items 15-16.
