Electronics - Quad Link Assembly (QL) (After 4/06/06)

Assembly Part Notes

Note Code Definition
A Latch Kit includes 4 ea. Button Head Cap Screws (10-32 x 3/8"), 2 ea. Latch Spring Assembly, 4 ea. Phillips Flat C'Sunk Head Screws, 2 ea. Spring Catch Plates, 2 ea. Socket Head Set Screws (10-32 x 3/8")
B Screw Fastener Kit includes 4 ea. Socket Head Shoulder Screws (3/8 x 3/8"), 2 ea. Socket Head Cap Screws (1/4-20 x 3/8"), 2 ea. Socket Head Set Screws (1/4-20 x 1/2"), 4 ea. Socket Head Set Screws (10-32 x 1/8")

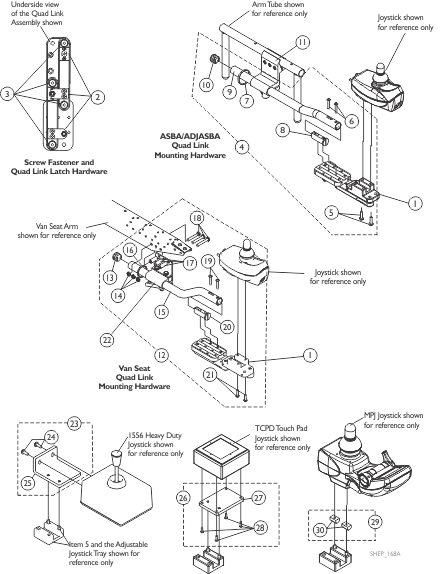

C Includes items 5-10. The Quad Link Mounting Hardware accommodates MK5, MKIV RII, and PSF/PSR joysticks.
C1 When ordering the Quad Link for the first time, Additional hardware is required for 1556 Heavy Duty and TCPD Touch Pad joysticks. See pictorial for reference.
D Includes items 24 and 25
E Includes items 27 and 28
F Not Shown
G Includes items 13-21. The Quad Link Mounting Hardware accommodates MK5, MKIV RII, and PSF/PSR joysticks.
H Includes item 30
I If Quad Link is to be mounted on chairs w/ van seats built Before 4/07/06, then a new Upper Arm Asbly. (adj. height) or complete Fixed Height Arm Asbly. must be ordered as well. See van seat arms category.
I1 The new Arm Pads have 3 additional holes drilled in the armrest plate so that the quad link can be properly mounted.
