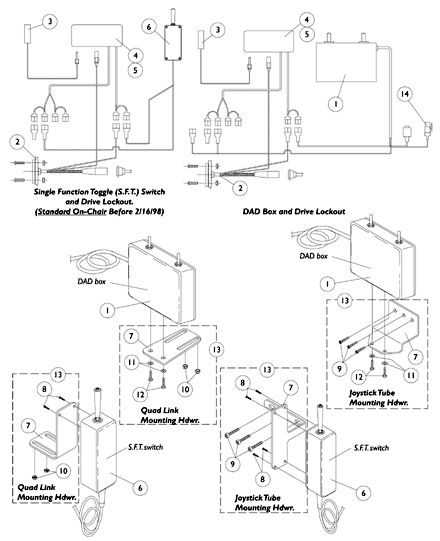

Electronics - Single Function Toggle Switch Before 2/16/98 and DAD Box
| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
|---|---|---|---|---|---|---|---|
| 1 | 0012700 | NLA - D.A.D. Box with Tilt Harness | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 2 | 0227700 | NLA - Harness, Power, Storm | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 3 | 0018500 | NLA - Switch, Limit | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 4 | See Note | See Footnote | 1 | 1 | J |
Create/add to WishlistCreate/add to Wishlist |
|
| 5 | 1077304 | Dual Lock, Male/ Female Adhesive Back (1" x 3") | 1 | 1 |
Create/add to WishlistCreate/add to Wishlist |
||
| 6 | 0037400 | NLA - Switch, S.F.T. | 1 | 1 | N/A | A |
Create/add to WishlistCreate/add to Wishlist |
| 7 | 0224202 | NLA - Plate, S.F.T. Switch, Joystick Tube Mounting | 1 | 1 | N/A | I |
Create/add to WishlistCreate/add to Wishlist |
| 7 | 0224702 | Plate, S.F.T. Switch, Quad Link Mounting | 1 | 1 | H |
Create/add to WishlistCreate/add to Wishlist |
|
| 7 | 0225402 | NLA - Plate, D.A.D. Box, Joystick Tube Mounting | 1 | 1 | N/A | I |
Create/add to WishlistCreate/add to Wishlist |
| 7 | 0225602 | Plate, D.A.D. Box, Quad Link Mounting | 1 | 1 | H |
Create/add to WishlistCreate/add to Wishlist |
|
| 8 | 313329 | NLA - Screw, Phillips Pan Head (#6-32 x 1/2") | 1 | 4 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 9 | 7930304 | NLA - Screw, Socket Head (1/4-20 x 1-1/4") | 25 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 10 | 317601 | NLA - Locknut, Low Profile (#10-32) | 1 | 3 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 11 | 0224806 | NLA - Washer (#10) | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 12 | 0067106 | NLA - Screw, Phillips Pan Head (#10-32 x 1/2") | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 13 | 1077270 | NLA - Mounting Plate Assembly, S.F.T. Switch, Joystick Tube | 1 | 2 | N/A | I |
Create/add to WishlistCreate/add to Wishlist |
| 13 | 1077271 | NLA - Mounting Plate Assembly, S.F.T. Switch, Quad Link | 1 | 1 | N/A | H |
Create/add to WishlistCreate/add to Wishlist |
| 13 | 1077268 | Mounting Plate Assembly, D.A.D. Box, Joystick Tube | 1 | 1 | I |
Create/add to WishlistCreate/add to Wishlist |
|
| 13 | 1077269 | Mounting Plate Assembly, D.A.D. Box, Quad Link | 1 | 1 | H |
Create/add to WishlistCreate/add to Wishlist |
|
| 14 | 0238800 | NLA - Switch, Limit Override (DAD Box) | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
| 0014800 | Cable, Interface, Invacare R.I.M. Control | 1 | 1 | C |
Create/add to WishlistCreate/add to Wishlist |
||
| 0200300 | NLA - Cable, Interface, Power Legs Combined | 1 | 1 | N/A | C |
Create/add to WishlistCreate/add to Wishlist |
|
| 1082365 | NLA - Controller, Up-Gr W.S.T.- D.A.D.Relay | 1 | 1 | N/A | C ,D ,F |
Create/add to WishlistCreate/add to Wishlist |
|
| 1084174 | Controller, Up-Gr W.S.T.-D.A.D. Relay | 1 | 1 | C ,E ,G |
Create/add to WishlistCreate/add to Wishlist |
||
| 1084706 | Package, Decals, D.A.D. Relay Controller Upgrade | 5 | 1 | B ,C |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | Old style S.F.T switch doesn't have the drive lockout feature built in. |
| B | Decal Package is supplied in all upgrade kits and covers all systems. Decals not sold separately. Decals are labeled "Tilt," "Recline," "Drive Lockout," "PLeg" and "Caution While Propelling." |
| C | Not shown. |
| D | Includes Items 1, 7, 9 -12 and 14 |
| E | Includes Items 1-5, 7, 9-12 and 14 |
| F | Before 2/16/98 |
| G | After 2/15/98 |
| H | Use with Quad Link before 4/07/06 |
| I | Use with Joystick Tube and Quad Link (QLA) after 4/06/06 |
| J | Part is no longer serviceable in the field. |
