Accessories - Vent Tray Mounting Hardware - Conventional Tilt & BPO Option

Print this page

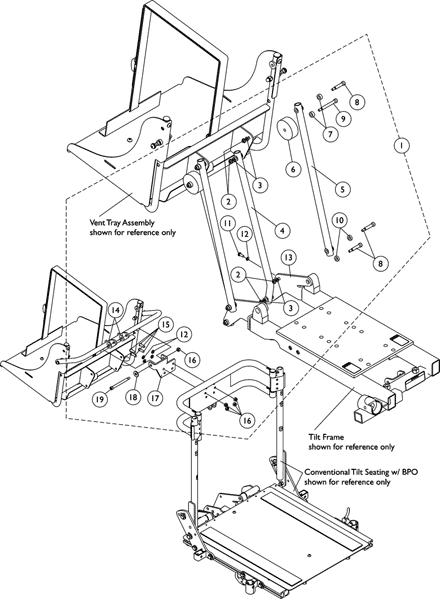

Vent Tray Mounting Hardware

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1

1125805

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	NLA - Locknut (#10-24)	1	8
3	NLA - Washer, Steel (7/8 x 3/8 x 1/16")	1	8
4	Vent Pivot Tube Assembly, Bent	1	2
5	NLA - Vent Pivot Tube Assembly, Lower	1	2
6	Spacer, Nylon (1/4 x 2 x 3/4")	1	2
7	NLA - Spacer	1	4
8	NLA - Screw, Shoulder Hex Socket Head (1/4 x 1", #10-24)	1	6
9	NLA - Screw, Shoulder Hex Socket Head (1/4 x 1-3/4", #10-24)	1	2
10	NLA - Spacer (1/4 x 1/2 x 5/32")	1	4
11	Screw, Hex Head w/ Patch (1/4-20 x 3/4")	1	2
12	Washer (1/4 x 1/2 x 1/16")	1	6
13	NLA - Bracket, Lower Vent Pivot, Black - Right	1	1
13	NLA - Bracket, Lower Vent Pivot, Black - Left	1	1
14	NLA - Washer, Nylon (25/64 x 7/8 x 1/32")	1	2
15	Screw, Socket Button (1/4-20 x 3/4")	1	4
16	Locknut (1/4-20)	1	5
17	NLA - Bracket, Vent Tray Hanger, Black	1	1
18	Washer, Flat (21/64 x 53/64 x 7/64")	1	1
19	Screw, Shoulder Hex Socket Head (5/16" x 3", 1/4-20)	1	1

Kit, Vent Tray Mounting Hardware For Conventional Tilt & Conventional Tilt w/ BPO Option

1

1

N/A

A ,A1

Create/add to Wishlist

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2-19. Vent Tray Mounting Hardware was revised after 4/2/06 and replaces all hardware used before 4/3/06 also. Sold as a hardware kit only.
A1	To know when the hardware kit has been replaced, one of the hardware components (item 4) was revised from a Straight Pivot Tube to a Bent Pivot Tube assembly.
