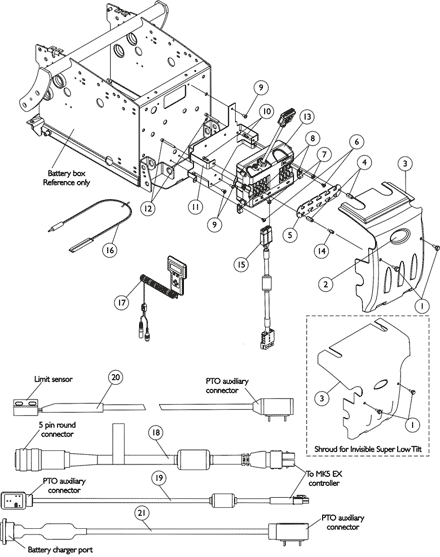

Electronics - MK5 EX Controller - Programmer - Shroud Cover & Hardware
| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes |
|---|
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | The 5 pin connector attaches to MKIV options, MK5 T.A.C. or MK5 T.R.C.M. controllers. |
| B | Used with MK5 EX controllers for Powered Seating Systems. |
| C | Used on Super Low Tilt system |
| D | Sensor cable used when a manual recliner is present |
| E | Item 14 is increased to a quantity of 4 when an Invisible Super Low Tilt is present |
| F | Not Shown |
| G | The MK5 EX controller WILL NOT operate a chair with TrueTrack GB motors. For GB motors, you must use the MK5 TT (TrueTrack) EX controller. |
| H | Item 19 Auxiliary Power Cable must be used to operate any powered seating system. |
| I | Cable Option with Charger Connector is present when a combination MKIV controller and joystick have been ordered as a "special" on-chair configuration. |
| I1 | When a MKIV joystick is ordered "special" on-chair to adapt to a MK5 EX controller, a (6 pin to 15 pin adapter cable) will be present. A replacement (6 pin to 15 pin adapter cable) must be ordered from ASL (Adaptive Switch Labs) at 1-800-626-8698 |
| J | Before 5/24/04 |
| K | After 5/23/04 the Egg Reset Switch replaced the Red Flex Ribbon (Tape) Reset Switch |
