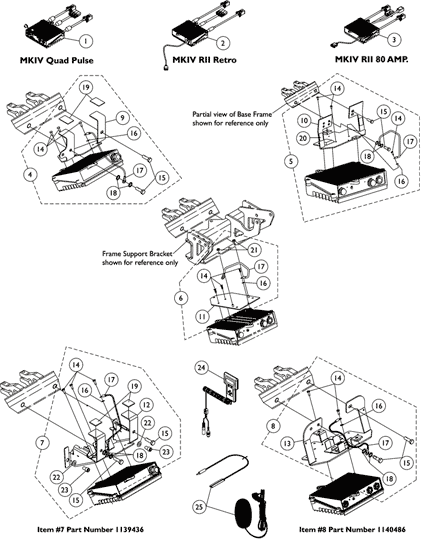

Electronics - MKIV Controllers, Programmer and Hardware - MKIV Quad Pulse, RII Retro and RII 80 Amp

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1105707

NLA - Controller, MKIV Quad Pulse

N/A

Create/add to Wishlist

1095269

NLA - Controller, MKIV RII, Retro

N/A

A ,C ,F

Create/add to Wishlist

1106819

NLA - Controller, MKIV RII (80 AMP)

N/A

B ,D ,G

Create/add to Wishlist

4-8

See Chart

Added to Cart

Seating System	Item #4 Controller Mounting Bracket with Hardware	Item #5 Controller Mounting Bracket with Hardware	Item #6 Controller Mounting Bracket with Hardware	Item #7 and #8 Controller Mounting Bracket with Hardware For TRRO/TRBKTS Option
Van Seat with one controller	Note-A 1070401- NLA	N/A	N/A	N/A
ASBA/ADJASBA w/ one controller	Note-A 1070401- NLA	N/A	N/A	Note-D ,F 1139436- NLA
ASBA/ADJASBA with two controllers	N/A	Note-B 1092650- NLA	N/A	Note-E ,F 1140486- NLA
ASBA/ADJASBA with two controllers, shock forks and short base together as of 5/20/02	N/A	Note-B 1092650- NLA	N/A	Note-E ,G 1140486- NLA
ESS6-STM (Elevating Seat) with one controller	Note-A 1070401- NLA	N/A	N/A	N/A
ESS6-STM (Elevating Seat) with two controllers	N/A	Note-B 1092650- NLA	N/A	N/A
ESS-PTO with two controllers	N/A	Note-B 1092650- NLA	N/A	N/A
ESS-PTO with two controllers, shock forks and short base together as of 5/20/02	N/A	Note-B 1092650- NLA	N/A	N/A
Power Tilt Only (PTO) with one controller	N/A	N/A	Note-C 1107312- NLA	N/A
2GT with one controller	N/A	Note-B 1092650- NLA	N/A	Note-D ,G 1139436- NLA
2GT with one controller, shock forks and short base together as of 5/20/02	Note-A 1070401- NLA	N/A	N/A	Note-D ,G 1139436- NLA
2GT/2GR/2GTR with two controllers	N/A	Note-B 1092650- NLA	N/A	Note-E ,G 1140486- NLA
2GT/2GR/2GTR with two controllers, shock forks and short base together as of 5/20/02	N/A	Note-B 1092650- NLA	N/A	Note-E ,G 1140486- NLA

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
B	Includes items 10, 14-18 and 20
C	Includes items 11, 14, 16, 17 and 21
D	Includes items 12, 14-19, 22 and 23
E	Includes items 13 and 14-18
F	Used when TRRO or TRBKTS option is ordered
G	Used only when TRBKTS option is ordered. TRRO option is not offered
A	Includes items 9 and 14-19

Controller Mounting Bracket with Hardware

N/A

Create/add to Wishlist

1092661

NLA - Bracket w/ Fastener Strips, Controller Mounting

N/A

Create/add to Wishlist

1092659

NLA - Kit, Controller Mounting Bracket with Fastener Strips, Black

N/A

Create/add to Wishlist

1087790

NLA - Bracket, Controller Mounting, Black

N/A

Create/add to Wishlist

1140265

Bracket with Fastener Strips, Controller Mounting

Create/add to Wishlist

1140484

NLA - Bracket, Controller Mounting, Black

N/A

Create/add to Wishlist

1040223

NLA - Screw (#8-32 x 1/2")

N/A

Create/add to Wishlist

1104258

Screw, Hex Head w/ Patch (5/16-18 x 1")

$12.00

Create/add to Wishlist

1027263

NLA - Washer, Lock Internal Tooth (#10)

N/A

Create/add to Wishlist

1104260

NLA - Wire, Grounding Jumper Strap E.S.D.

N/A

Create/add to Wishlist

1023263

NLA - Washer, Internal Tooth (M8)

N/A

Create/add to Wishlist

1070504

NLA - Fastener, Hook with Adhesive Back (1" W x 1" L)

N/A

Create/add to Wishlist

1092662

NLA - Package, Fastener, Dual Lock 250 (1/2" W x 7/8" L)

N/A

Create/add to Wishlist

1025735

Locknut (#10-32)

$3.00

Create/add to Wishlist

1025704

Washer, Flat (5/16 x 5/8 x 1/16")

$7.20

Create/add to Wishlist

1091541

NLA - Screw, Socket Head Cap (5/16-18 x 1/2")

N/A

Create/add to Wishlist

1109091

NLA - Programmer, Remote

N/A

Create/add to Wishlist

1020818

Switch, Red Flex Ribbon (Tape) Reset

$177.00

Create/add to Wishlist

1123276

Kit, Switch, Black Egg Reset w/ Hook/Loop Adhesive Back Fastener & Attaching Screws (EGSBLK)

$96.00

Create/add to Wishlist

1107296

NLA - Harness, Battery (22NF)

N/A

L ,N

Create/add to Wishlist

1109509

NLA - Harness, Battery (GP24)

N/A

L ,N

Create/add to Wishlist

1108692

NLA - Decal, RII 80 Amp

N/A

L ,N

Create/add to Wishlist

1105912

NLA - Kit, Electro Static Discharge Ground Strap - MKIV

N/A

M ,N

Create/add to Wishlist

1105913

NLA - Instruction Sheet, E.S.D. Strap Kit MKIV

N/A

N ,P

Create/add to Wishlist

1095204

NLA - Cable, Virtual Service, Charger/Modem

N/A

Create/add to Wishlist

1064404

NLA - Virtual Service Modem Kit

N/A

Create/add to Wishlist

1091631

NLA - Virtual Service Software Kit

N/A

Create/add to Wishlist

1103051

NLA - MKIV One 2 One Software Kit

N/A

Create/add to Wishlist

1046117

NLA - Printer and Interface

N/A

Create/add to Wishlist

1091980

NLA - Disk, 3.5 H.D. Floppy with V.S. Software

N/A

Create/add to Wishlist

1091637

NLA - Adaptor, Null Modem

N/A

Create/add to Wishlist

1091636

NLA - Service Manual - V.S. Software Kit

N/A

Create/add to Wishlist

1026572

NLA - Paper, Printer

N/A

Create/add to Wishlist

1027280

NLA - Harness, Printer Wiring

N/A

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	It is recommended that an E.S.D. ground strap kit part number 1105912 be ordered when a new controller is needed for chairs built before 4/12/01. MKIV Quad Pulse Controller is also used for 3GTQ-TS models also
B	Battery harness (part number 1107296 for 22NF batteries) or (part number 1109509 for GP 24 batteries) must be present when the RII 80 AMP controller is used. RII 80 Amp. joystick decal part number 1108692 is also used.
C	Used for Torque SP before 11/01/01
D	Used on Torque SP after 10/31/01
E	Comes packaged in item 4 Controller Mounting Bracket with Hardware. See chart for Bracket application
F	Comes packaged in item 5 Controller Mounting Bracket with Hardware. See chart for Bracket application
G	Comes packaged in item 6 Controller Mounting Bracket with Hardware. See chart for Bracket application
H	Comes packaged in item 7 Controller Mounting Bracket with Hardware. See chart for Bracket application
I	Comes packaged in item 8 Controller Mounting Bracket with Hardware. See chart for Bracket application
J	Before 5/24/04
K	After 5/23/04. The Egg Reset Switch replaced the Red Flex Ribbon (Tape) Reset Switch
L	Required when a MKIV RII 80 Amp. Controller is used
M	Includes items 14-17 and Instruction Sheet
N	Not Shown
O	Part #1023263 is no longer available as a service part individually. Must order a complete Controller Mounting Bracket w/ Hardware Kit as a replacement.
P	Item is no longer available from the Invacare Service Parts Department. Refer to the Invacare Website under "Product Literature Search". Enter the part number in the "Keywords" field and download a free PDF version copy.
