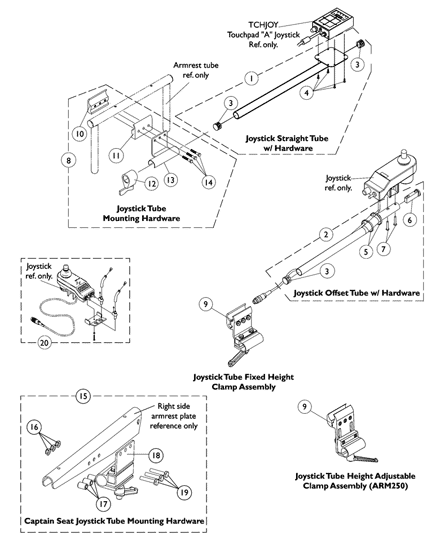

Electronics - MKIV Joystick Mounting Hardware and Joystick Accessories
| Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes |
|---|
Assembly Part Notes
| Note Code | Definition |
|---|---|
| A | Includes items 3 and 4 |
| B | Includes items 3, 5, 6 and 7. Used for MKIV RII. A, A+, PSF/PSR joysticks (Captain Seats also) |
| C | Includes items 10-14. Used for TCHJOY Touchpad "A" Joystick before 10/4/00 |
| D | For MKIV RII. A, A+, PSF/PSR joystick and (TCHJOY Touchpad "A" Joystick after 10/3/00). Joystick Tube Clamp can be used as a direct replacement for item 8 part # 1049591 in the field. Individual components are non-saleable. |
| E | Includes items 16-19. Due to product improvement, the joystick mounting bracket with a separate adjustment lock were replaced with the clamp assembly shown as of 2/20/03 and is backward compatible. |
| F | Introduced 10/31/05 as option (ARM250) and can be used to replace a Fixed Height Joystick Tube Clamp in the field. Individual components are non-saleable. |
| G | Not Shown |
