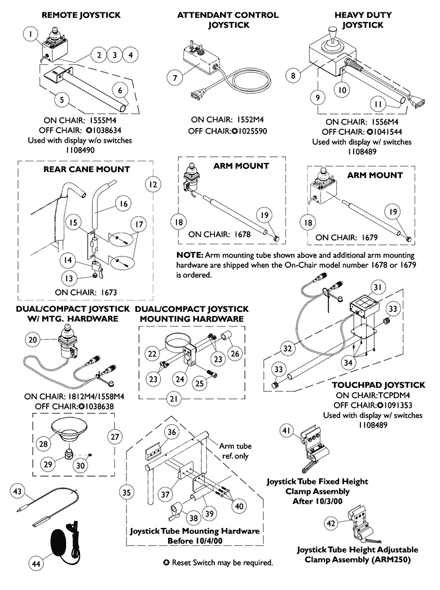

Electronics - MKIV Joystick Options

Assembly Part Notes

Note Code Definition
A Includes the joystick tube and items 10 and 11
B Includes items 13-17
C For On-Chair model numbers 1678 and 1679. Includes the joystick tube and item 19
D Includes items 22-26
E Includes items 28-30
F Includes the joystick tube, items 33 and 34
G Before 10/4/00 and includes items 36-40
H After 10/3/00. Individual components are non-saleable. Can be used as a direct replacement in the field for the Joystick Tube Mounting Hardware part number 1049591.
I Introduced 10/31/05 as option (ARM250) and can be used to replace a Fixed Height Joystick Tube Clamp in the field. Individual components are non-saleable
J Before 5/24/04
K After 5/23/04. The Egg Reset Switch replaced the Red Flex Ribbon (Tape) Reset Switch
L Not Shown and used with the Heavy Duty and Touch Pad Joystick
M Not Shown and used with the Remote Joystick
N No longer available as a service part in the field.
O Part #1017612 is no longer available as a service part individually. Order item #27 as a replacement.
