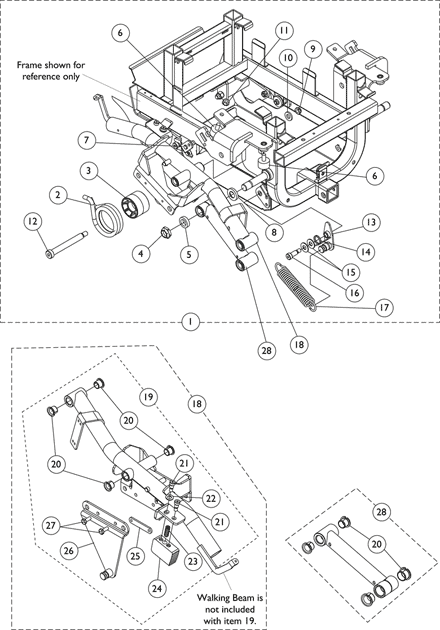

Walking Beams & Hardware - 300 Lb. limit chairs (After 10/03/05)

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1133199

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
7	Plate, Lock	1	1
2	Spring, Torsion - Right	1	1
3	Spacer, Spring, Black	1	1
4	Locknut (5/8-18)	1	1
5	NLA - Spacer, Bushing	1	1
6	NLA - Bumper, Rubber (1" Diameter x 5/8")	1	2
8	Spacer, Stem (5/8 x 1-1/8 x 3/16")	1	1
9	Locknut, Low Profile (3/8-16)	1	1
10	NLA - Washer, Steel (7/16 x 13/16 x 1/8")	1	1
11	NLA - Nut, Keps (5/16-18)	1	1
12	NLA - Screw, Socket Head Shoulder (1/2 x 3-3/4", 3/8-16)	1	1
13	Plate, Pivot	1	1
14	Spring, Torsion - Right	1	1
15	NLA - Washer, Steel (3/8 x 7/8 x 1/16")	1	2
16	NLA - Screw, Shoulder Hex Socket Head (3/8 x 3/4", 5/16-18)	1	1
17	Spring, Extension (1 x 4-1/2" L)	1	1

NLA - Kit, Walking Beam Mounting Hardware, SureStep - Right

Create/add to Wishlist

1133200

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
2	Spring, Torsion - Left	1	1
3	Spacer, Spring, Black	1	1
4	Locknut (5/8-18)	1	1
5	NLA - Spacer, Bushing	1	1
6	NLA - Bumper, Rubber (1" Diameter x 5/8")	1	2
7	Plate, Lock	1	1
8	Spacer, Stem (5/8 x 1-1/8 x 3/16")	1	1
9	Locknut, Low Profile (3/8-16)	1	1
10	NLA - Washer, Steel (7/16 x 13/16 x 1/8")	1	1
11	NLA - Nut, Keps (5/16-18)	1	1
12	NLA - Screw, Socket Head Shoulder (1/2 x 3-3/4", 3/8-16)	1	1
13	Plate, Pivot	1	1
14	Spring, Torsion - Left	1	1
15	NLA - Washer, Steel (3/8 x 7/8 x 1/16")	1	2
16	NLA - Screw, Shoulder Hex Socket Head (3/8 x 3/4", 5/16-18)	1	1
17	Spring, Extension (1 x 4-1/2" L)	1	1

NLA - Kit, Walking Beam Mounting Hardware, SureStep - Left

Create/add to Wishlist

1123354

Beam, Walking with Hardware - Right

$226.00

Create/add to Wishlist

1123355

Beam, Walking with Hardware - Left

$226.00

Create/add to Wishlist

1133690

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
20	Bearing, Flange (1/2 x 13/16 x 1/2")	1	4
21	NLA - Screw, Shoulder Hex Socket Head (5/16" x 3/8", 1/4-20)	1	2
22	Washer, Flat (5/16 x 5/8 x 1/16")	1	1
23	Spring, Compression (11/32 x 1 x 1/32")	1	1
24	Rack, Motor	1	1
25	Nut, Weld Spacing (1/4-20 x 2")	1	1
26	Bracket, Spring - Right	1	1
26	Bracket, Spring - Left	1	1
27	Screw, Hex Head (1/4-20 x 5/8")	1	2
25	Spring, Compression (11/32 x 1 x 1/32")	1	1
26	Rack, Motor	1	1
27	Nut, Weld Spacing (1/4-20 x 2")	1	1
22	Bearing, Flange (1/2 x 13/16 x 1/2")	1	4
23	NLA - Screw, Shoulder Hex Socket Head (5/16" x 3/8", 1/4-20)	1	2
24	Washer, Flat (5/16 x 5/8 x 1/16")	1	1
23	Bracket, Spring - Right	1	1
23	Bracket, Spring - Left	1	1
24	Rack, Motor	1	1
25	Nut, Weld Spacing (1/4-20 x 2")	1	1
26	Bearing, Flange (1/2 x 13/16 x 1/2")	1	4
27	NLA - Screw, Shoulder Hex Socket Head (5/16" x 3/8", 1/4-20)	1	2
28	Washer, Flat (5/16 x 5/8 x 1/16")	1	1
29	Screw, Hex Head (1/4-20 x 5/8")	1	2
30	Spring, Compression (11/32 x 1 x 1/32")	1	1
28	Bracket, Spring - Right	1	1
28	Bracket, Spring - Left	1	1
29	Screw, Hex Head (1/4-20 x 5/8")	1	2

Kit, Walking Beam Hardware - Right/Left

$177.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2-17
B	Includes Walking Beam plus item 19
C	Kit can be used for either right or left side. Includes items 20-27
D	Includes Pivot Tube and item 20

Catalog Literature

Parts Books for Pronto® M91™ with SureStep® (Non-VA Chairs)
