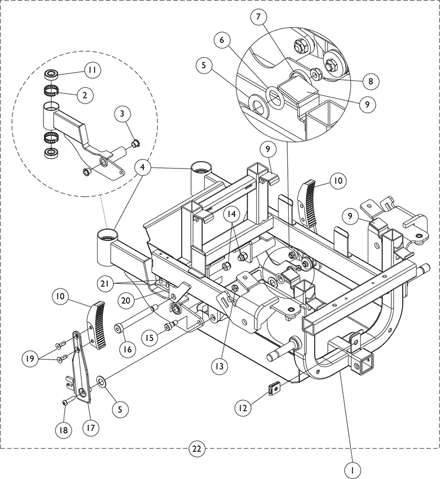

Frame - Base Assembly, Swing Arms & Stability Lock Hardware (After 10/03/05)

Base Frame, Swing Arms and Stability Lock Hardware

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1123357	NLA - Frame w/o Hardware, Black	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1119281	NLA - Plate, Name, Patent Numbers	1	1	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1110717	Ring, Tolerance	1	4	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1110669	Bearing, Flange (1/2 x 13/16 x 1/2")	1	4	$13.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1123350	Swing Arm Assembly, Rear, Black - Right	1	1	$70.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1123351	Swing Arm Assembly, Rear, Black - Left	1	1	$70.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1031673	NLA - Washer, Nylon (35/64 x 1 x 1/16")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1124379	NLA - O-Ring (19/32" I.D. x 9/64")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1123361	NLA - Washer, Cupped (1/4 x 1 x 5/32")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1025195	Locknut (1/4-20)	1	2	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1070504	NLA - Fastener, Hook with Adhesive Back (1" W x 1" L)	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1123322	Rack, Pivot	1	2	$16.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	40117X006	Bearing (5/8")	1	4	$11.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1013497	NLA - Fastener, Turn, Clip-On (1/4")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1028769	Locknut (5/16-18)	1	2	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	0054106	NLA - Locknut, High Profile (3/8-16)	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	1126998	Screw, Shoulder Hex Socket Head w/ Patch (3/8" x 3/8", 5/16-18)	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	1117192	NLA - Screw, Shoulder Hex Socket Head (1/2 x 3-1/2", 3/8-16)	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
17	1123328	Link, Pivot, Black - Right	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
17	1123329	Link, Pivot, Black - Left	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
18	0051606	NLA - Screw, Cap, Button Head, Socket (1/4-20 x 1")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
19	1091869	NLA - Screw, Socket Flat Head w/ Patch (1/4-20 x 3/4")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
20	1123346	NLA - Bumper, Rear Swing Arm	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
21	1099921	NLA - Screw, Phillips Pan Head (#10-16 x 5/8")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
22	1123362	NLA - Hardware, Stability Lock	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes Swing Arm plus items 2,3, & 11
B	Includes items 2-21
C	Not Shown

Catalog Literature

Parts Books for Pronto® M91™ with SureStep® (Non-VA Chairs)
