1

See Chart

Added to Cart

Description	Footplate Size	Chair Width	Right	Left
All Front Riggings Except Tapered Footrests	Extra Small	12-13"	1120333	1120334
All Front Riggings Except Tapered Footrests	Small	14-15"	1120335 MSRP: $101.00	1120336 MSRP: $101.00
All Front Riggings Except Tapered Footrests	Medium	16-18"	1120337 MSRP: $101.00	1120338 MSRP: $101.00
70 Degree Tapered Footrests	Small	16-17"	1120335 MSRP: $101.00	1120336 MSRP: $101.00
70 Degree Tapered Footrests	Medium	18"	1120337 MSRP: $101.00	1120338 MSRP: $101.00

Create/add to Wishlist

#1 Aluminum Footplate w/ Pivot Tube Assembly

N/A

A

Create/add to Wishlist

2

1120330

Pivot/Slide Tube w/ Plug, Black

1

$31.00

Create/add to Wishlist

3

1025729

Screw, Phillips Pan Head Tap (#8-32 x 3/8")

1

2

$10.00

Create/add to Wishlist

4

44200X032

NLA - Footplate, Aluminum, Extra Small, Black (5-3/4" W x 6" L)

1

N/A

Create/add to Wishlist

4

44200X059

Footplate, Aluminum, Small, Black (6-3/4" W x 6" L)

1

$51.00

Create/add to Wishlist

4

44200X027

Footplate, Aluminum, Medium, Black (7-3/4" W x 6" L)

1

$51.00

Create/add to Wishlist

5

1130582

Package, Plug Button, Black (7/8")

10

1

$30.00

Create/add to Wishlist

6

1006981

Spring, Tension

1

$10.00

Create/add to Wishlist

7

1134426

Package, Plug Button, Black (3/4")

10

1

$20.00

Create/add to Wishlist

1074568

Package, Push Plug, Footplate

2

1

B

Create/add to Wishlist

8

See Chart

Added to Cart

Footplate Size		Chair Width		Right		Left
Small		14-15"		1132113		1132114
Medium		16-18"		1132073 MSRP: $101.00		1132074 MSRP: $101.00

Create/add to Wishlist

#8 Aluminum Footplate w/ Pivot Tube Assembly

N/A

C

Create/add to Wishlist

9

1134427

Package, Plug Button, Black, "D" Shaped (3/4")

10

1

$30.00

Create/add to Wishlist

10

1134431

Pivot/Slide Tube w/ Plug Buttons, Black

10

1

$31.00

Create/add to Wishlist

11

1025729

Screw, Phillips Pan Head Tap (#8-32 x 3/8")

1

2

$10.00

Create/add to Wishlist

12

44200X059

Footplate, Aluminum, Small, Black (6-3/4" W x 6" L)

1

$51.00

Create/add to Wishlist

12

44200X027

Footplate, Aluminum, Medium, Black (7-3/4" W x 6" L)

1

$51.00

Create/add to Wishlist

13

1130582

Package, Plug Button, Black (7/8")

10

1

$30.00

Create/add to Wishlist

14

1006981

Spring, Tension

1

$10.00

Note Code	Definition
A	Includes items 2-7
B	Not Shown
C	Includes items 9-14

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

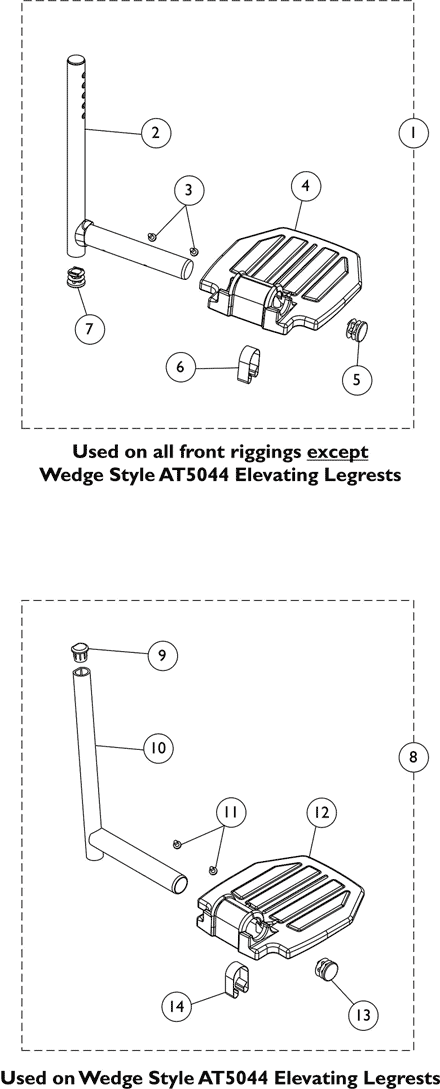

Front Riggings - Pivot/Slide Tube & A1562 Aluminum Footplates
