EQUIPMENT US Site

1

See Chart

Added to Cart

Right/Left		Small Long 14" wide		Medium Long 15-16" wide
Right		1028391		1028387 MSRP: $104.00
Left		1028392		1028388 MSRP: $104.00

Create/add to Wishlist

#1 60° Footrest (13-19")

N/A

E

Create/add to Wishlist

1

See Chart

Added to Cart

Right/Left		Small Short 14" wide		Medium Short 15-16" wide
Right		1028389- NLA		1028385- NLA
Left		1028390- NLA		1028386- NLA

Create/add to Wishlist

#1 60° MFX Footrest (9-3/4-14")

N/A

E

Create/add to Wishlist

1

See Chart

Added to Cart

Right/Left		Small Short 13-14" wide		Medium Short 15-16" wide
Right		1042784- NLA		1042786
Left		1042785- NLA		1042787

Create/add to Wishlist

#1 70° Non Tapered Footrest (14-19")

N/A

E

Create/add to Wishlist

1

See Chart

Added to Cart

Right/Left		Small Long 14" wide		Small 2" Longer 14" wide		Medium Long 15-16" wide		Medium 2" Longer 15-16" wide		Large Long 17-22" wide		Large 2" Longer 17-22" wide
Right		1028391		1120416		1028387 MSRP: $104.00		1120418		1028383 MSRP: $99.00		1120420
Left		1028392		1120417		1028388 MSRP: $104.00		1120419		1028384 MSRP: $104.00		1120421

Create/add to Wishlist

#1 AT5044 Elevating Legrest - Ratchet Style (16-20")

N/A

E

Create/add to Wishlist

2

1120383

Tube, Pivot/Slide, Curved End, Black - Short (8-1/4")

1

A

Create/add to Wishlist

2

1120382

Tube, Pivot/Slide, Curved End, Black - Long (9-7/8")

1

$31.00

B

Create/add to Wishlist

2

1120384

NLA - Tube, Pivot/Slide, Straight - Alum. (9-7/8" L)

1

N/A

C

Create/add to Wishlist

3

1134426

Package, Plug Button, Black (3/4")

10

1

$20.00

Create/add to Wishlist

4

1026879

Footplate, Composite, Small, Black (6" W x 6" L)

1

$53.00

Create/add to Wishlist

4

1026880

Footplate, Composite, Medium, Black (7" W x 6" L)

1

$53.00

Create/add to Wishlist

4

1026881

Footplate, Composite, Large, Black (8" W x 6" L)

1

$80.00

Create/add to Wishlist

5

1025195

Locknut (1/4-20)

1

$9.00

Create/add to Wishlist

6

60285X006

Screw, Socket Head (1/4-20 x 2-1/4")

1

$9.00

Create/add to Wishlist

7

1025457

Spacer, Coved (1/4 x 3/4 x 11/32")

1

2

$8.00

Create/add to Wishlist

8

See Chart

Added to Cart

Right/Left		Small Long 14" wide		Medium Long 15-16" wide
Right		1132078		1132080 MSRP: $99.00
Left		1132079		1132081 MSRP: $99.00

Create/add to Wishlist

#8 AT5044 Elevating Legrest - Wedge Style (16-20")

N/A

F

Create/add to Wishlist

9

1134427

Package, Plug Button, Black, "D" Shaped (3/4")

10

1

$30.00

Create/add to Wishlist

10

1134428

Pivot/Slide Tube w/ D Insert, Black

1

$30.00

D

Create/add to Wishlist

10

1134429

Pivot/Slide Tube w/ D Insert, Black (2" Longer)

1

$31.00

D

Create/add to Wishlist

11

1026879

Footplate, Composite, Small, Black (6" W x 6" L)

1

$53.00

Create/add to Wishlist

11

1026880

Footplate, Composite, Medium, Black (7" W x 6" L)

1

$53.00

Create/add to Wishlist

11

1026881

Footplate, Composite, Large, Black (8" W x 6" L)

1

$80.00

Create/add to Wishlist

12

1025195

Locknut (1/4-20)

1

$9.00

Create/add to Wishlist

13

60285X006

Screw, Socket Head (1/4-20 x 2-1/4")

1

$9.00

Create/add to Wishlist

14

1025457

Spacer, Coved (1/4 x 3/4 x 11/32")

1

2

$8.00

Note Code	Definition
A	60° MFX Footrests
B	60° Footrests, and AT5044 Ratchet Style Legrests
C	70° Footrests
D	AT5044 Wedge Style Legrests
E	Includes items 2-7
F	Includes items 9-14

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

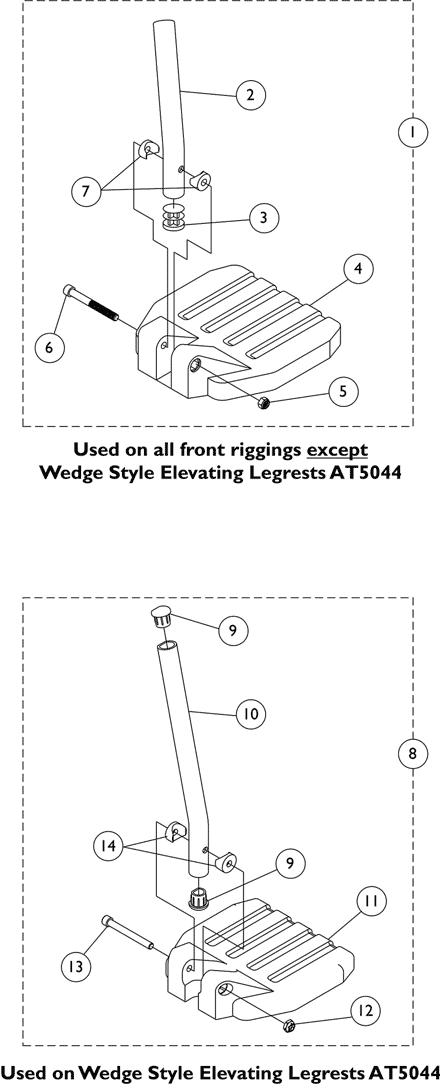

Front Riggings - Pivot Tube Assemblies w/ Footplates - 1651 Composite
