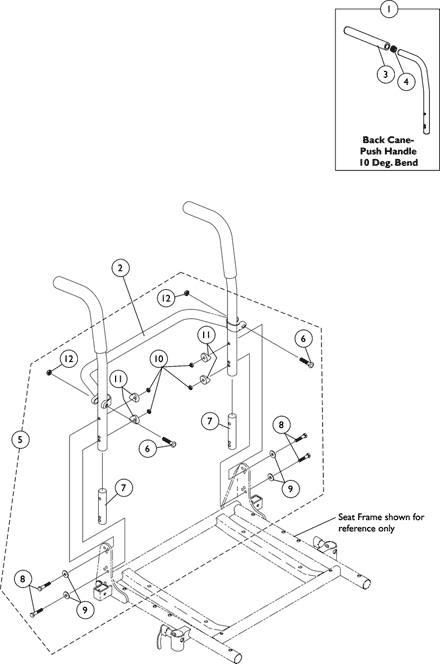

Canes - Back - Spreader Bar & Attatching Hardware - ASBA (Before 8/08/05)

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

See Chart

Added to Cart

16" High		17" High		18" High		19" High		20" High
1045575 MSRP: $80.00		1045576		1045577 MSRP: $80.00		1045578 MSRP: $80.00		1045579- NLA

Create/add to Wishlist

#1 10° Back Cane with Grip (16-20" Back Height)

N/A

Create/add to Wishlist

See Chart

Added to Cart

16" Wide		17" Wide		18" Wide		19" Wide		20" Wide
1043873		1043874		1043875 MSRP: $42.00		1043876		1043877

Create/add to Wishlist

#2 Spreader Bar (16-20" Wide)

N/A

Create/add to Wishlist

1135506

Package, Foam Hand Grip (9" L)

$40.00

Create/add to Wishlist

1130582

Package, Plug Button, Black (7/8")

$30.00

Create/add to Wishlist

1070457

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
6	Locknut (5/16-24)	1	2
7	Screw w/ Lug (5/16-24 x 1-3/8")	1	2
8	Insert, Non-Threaded Back Cane (For Back Heights 20" and Lower)	1	2
9	Screw, Hex Head (1/4-20 x 1-5/8")	1	4
10	Washer (1/4 x 23/32 x 1/16")	1	4
11	Locknut (1/4-20)	1	4
12	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
6	Locknut (5/16-24)	1	2
7	Screw w/ Lug (5/16-24 x 1-3/8")	1	2
8	Insert, Non-Threaded Back Cane (For Back Heights 20" and Lower)	1	2
9	Screw, Hex Head (1/4-20 x 1-5/8")	1	4
10	Washer (1/4 x 23/32 x 1/16")	1	4
11	Locknut (1/4-20)	1	4
12	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
6	Screw w/ Lug (5/16-24 x 1-3/8")	1	2
7	Insert, Non-Threaded Back Cane (For Back Heights 20" and Lower)	1	2
8	Screw, Hex Head (1/4-20 x 1-5/8")	1	4
9	Washer (1/4 x 23/32 x 1/16")	1	4
10	Locknut (1/4-20)	1	4
11	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
12	Locknut (5/16-24)	1	2
6	Locknut (5/16-24)	1	2
7	Screw w/ Lug (5/16-24 x 1-3/8")	1	2
8	Insert, Non-Threaded Back Cane (For Back Heights 20" and Lower)	1	2
9	Screw, Hex Head (1/4-20 x 1-5/8")	1	4
10	Washer (1/4 x 23/32 x 1/16")	1	4
11	Locknut (1/4-20)	1	4
12	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
6	Screw w/ Lug (5/16-24 x 1-3/8")	1	2
7	Insert, Non-Threaded Back Cane (For Back Heights 20" and Lower)	1	2
8	Screw, Hex Head (1/4-20 x 1-5/8")	1	4
9	Washer (1/4 x 23/32 x 1/16")	1	4
10	Locknut (1/4-20)	1	4
11	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
12	Locknut (5/16-24)	1	2
6	Screw w/ Lug (5/16-24 x 1-3/8")	1	2
7	Insert, Non-Threaded Back Cane (For Back Heights 20" and Lower)	1	2
8	Screw, Hex Head (1/4-20 x 1-5/8")	1	4
9	Washer (1/4 x 23/32 x 1/16")	1	4
10	Locknut (1/4-20)	1	4
11	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
12	Locknut (5/16-24)	1	2
12	Locknut (5/16-24)	1	2
6	Screw w/ Lug (5/16-24 x 1-3/8")	1	2
7	Insert, Non-Threaded Back Cane (For Back Heights 20" and Lower)	1	2
8	Screw, Hex Head (1/4-20 x 1-5/8")	1	4
9	Washer (1/4 x 23/32 x 1/16")	1	4
10	Locknut (1/4-20)	1	4
11	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
6	Locknut (5/16-24)	1	2
7	Screw w/ Lug (5/16-24 x 1-3/8")	1	2
12	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
8	Insert, Non-Threaded Back Cane (For Back Heights 20" and Lower)	1	2
9	Screw, Hex Head (1/4-20 x 1-5/8")	1	4
10	Washer (1/4 x 23/32 x 1/16")	1	4
11	Locknut (1/4-20)	1	4
6	Screw w/ Lug (5/16-24 x 1-3/8")	1	2
7	Insert, Non-Threaded Back Cane (For Back Heights 20" and Lower)	1	2
8	Screw, Hex Head (1/4-20 x 1-5/8")	1	4
9	Washer (1/4 x 23/32 x 1/16")	1	4
10	Locknut (1/4-20)	1	4
11	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
12	Locknut (5/16-24)	1	2
6	Locknut (5/16-24)	1	2
7	Screw w/ Lug (5/16-24 x 1-3/8")	1	2
8	Insert, Non-Threaded Back Cane (For Back Heights 20" and Lower)	1	2
9	Screw, Hex Head (1/4-20 x 1-5/8")	1	4
10	Washer (1/4 x 23/32 x 1/16")	1	4
11	Locknut (1/4-20)	1	4
12	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4
6	Locknut (5/16-24)	1	2
7	Screw w/ Lug (5/16-24 x 1-3/8")	1	2
8	Insert, Non-Threaded Back Cane (For Back Heights 20" and Lower)	1	2
9	Screw, Hex Head (1/4-20 x 1-5/8")	1	4
10	Washer (1/4 x 23/32 x 1/16")	1	4
11	Locknut (1/4-20)	1	4
12	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4

NLA - Kit, Back Cane Attaching Hardware

N/A

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes Items 6-12
