Chair Depth	16" Wide	17" Wide	18" Wide	19" Wide	20" Wide
16-17" Deep	1070672- NLA	1070673- NLA	1070674- NLA	1070675- NLA	1070676- NLA
18-19" Deep	1070681- NLA	1070682- NLA	1070683- NLA	1070684- NLA	1070685- NLA
20" Deep	1070690- NLA	1070691- NLA	1070692- NLA	1070693- NLA	1070694- NLA

Create/add to Wishlist

#1 Seat Frames

N/A

A

Create/add to Wishlist

2

1043628

NLA - Screw, Hex Head w/ Patch (5/16-18 x 2-1/2")

1

4

N/A

Create/add to Wishlist

3

1026158

Locknut (5/16-18)

1

4

$9.20

Create/add to Wishlist

4

1106480

Adapter, Seat Frame

1

$135.00

Create/add to Wishlist

5

1028594

Pin, Arm Lock, Black

1

2

$8.00

Create/add to Wishlist

6

47471X074

Spring, Arm Lock

1

2

$8.00

Create/add to Wishlist

7

1090768

Kit, Lock Handle w/Rivets (Pair)

2

1

$16.00

Create/add to Wishlist

8

1029501

Plug Button, Black (1")

1

2

$7.20

Create/add to Wishlist

9

1070459

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
5	Locknut (1/4-20)	1	6
2	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
3	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
4	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
5	Locknut (1/4-20)	1	6
2	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
3	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
4	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
5	Locknut (1/4-20)	1	6
2	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
3	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
4	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
5	Locknut (1/4-20)	1	6
2	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
3	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
4	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
2	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
3	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
4	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
5	Locknut (1/4-20)	1	6
10	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
11	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
12	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
13	Locknut (1/4-20)	1	6
1	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
2	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
3	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
4	Locknut (1/4-20)	1	6
2	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
3	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
4	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
5	Locknut (1/4-20)	1	6
10	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
11	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
12	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
13	Locknut (1/4-20)	1	6
2	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
3	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
4	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
5	Locknut (1/4-20)	1	6
5	Locknut (1/4-20)	1	6
2	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
3	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
4	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
	Locknut (1/4-20)	1	6
2	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
3	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
4	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
5	Locknut (1/4-20)	1	6
2	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
3	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
4	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
5	Locknut (1/4-20)	1	6
	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
2	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
3	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
4	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
5	Locknut (1/4-20)	1	6
2	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
3	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
4	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
5	Locknut (1/4-20)	1	6
1	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
2	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
3	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
4	Locknut (1/4-20)	1	6

NLA - Kit, Seat Pan Mounting Hardware

1

N/A

B

Create/add to Wishlist

14

1039949

NLA - Fastener, Hook Adhesive Back (2" W x 16" L)

1

2

N/A

Create/add to Wishlist

14

1044578

NLA - Fastener, Loop Adhesive Back (2" W x 16" L)

1

2

N/A

Create/add to Wishlist

15

See Chart

Added to Cart

Chair Depth	16" Wide	17" Wide	18" Wide	19" Wide	20" Wide
16" Deep	1066013- NLA	1066014- NLA	1066015- NLA	1066016- NLA	1066017- NLA
17" Deep	1066024	1066025- NLA	1066026	1066027- NLA	1066028- NLA
18" Deep	1066035- NLA	1066036- NLA	1066037- NLA	1066038- NLA	1066039- NLA
19" Deep	1066046- NLA	1066047- NLA	1066048- NLA	1066049- NLA	1066050- NLA
20" Deep	1066057- NLA	1066058- NLA	1066059- NLA	1066060	1066061- NLA

Create/add to Wishlist

#15 Seat Pans

N/A

Note Code	Definition
A	Includes items 5-8
B	Not Shown. Includes items 10-13

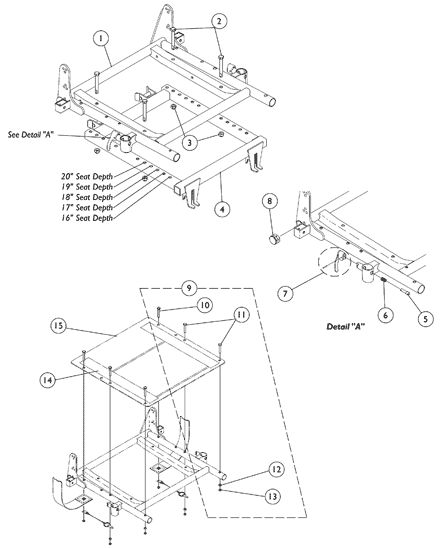

Frames - Seat ASBA - Seat Pan - Adapter & Arm Socket Hardware (Before 8/08/05)
