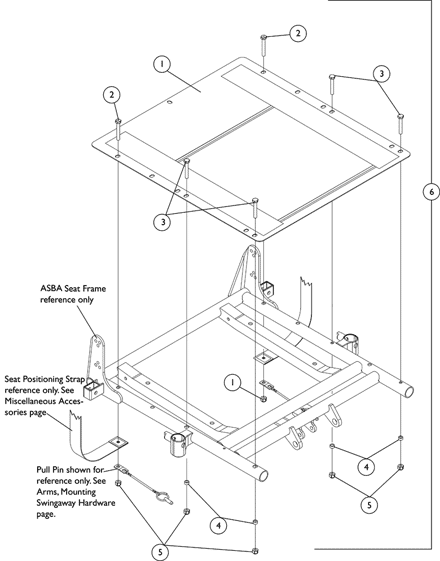

Seat Pan & Mounting Hardware For ASBA Seats (Before 7/5/05)

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

See Chart

Added to Cart

Chair Width	16" Deep	17" Deep	18" Deep
16" Wide	1066013- NLA	1066024	1066035- NLA
17" Wide	1066014- NLA	1066025- NLA	1066036- NLA
18" Wide	1066015- NLA	1066026	1066037- NLA
19" Wide	1066016- NLA	1066027- NLA	1066038- NLA
20" Wide	1066017- NLA	1066028- NLA	1066039- NLA
21" Wide	1066018- NLA	1066029- NLA	1066040- NLA
22" Wide	1066019- NLA	1066030- NLA	1066041- NLA

Create/add to Wishlist

#1 Seat Pan and Mounting Hardware - 16"-18" Depth

N/A

Create/add to Wishlist

See Chart

Added to Cart

Chair Width	19" Deep	20" Deep	21" Deep	22" Deep
16" Wide	1066046- NLA	1066057- NLA	1066068- NLA	1066079- NLA
17" Wide	1066047- NLA	1066058- NLA	1066069- NLA	1066080- NLA
18" Wide	1066048- NLA	1066059- NLA	1066070- NLA	1066081- NLA
19" Wide	1066049- NLA	1066060	1066071- NLA	1066082- NLA
20" Wide	1066050- NLA	1066061- NLA	1066072- NLA	1066083- NLA
21" Wide	1066051- NLA	1066062- NLA	1066073- NLA	1066084- NLA
22" Wide	1066052- NLA	1066063- NLA	1066074- NLA	1066085- NLA

Create/add to Wishlist

#1 Seat Pan and Mounting Hardware - 19"-22" Depth

N/A

Create/add to Wishlist

1070459

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
5	Locknut (1/4-20)	1	6
2	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
3	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
4	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
5	Locknut (1/4-20)	1	6
2	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
3	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
4	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
5	Locknut (1/4-20)	1	6
2	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
3	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
4	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
5	Locknut (1/4-20)	1	6
2	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
3	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
4	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
2	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
3	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
4	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
5	Locknut (1/4-20)	1	6
10	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
11	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
12	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
13	Locknut (1/4-20)	1	6
1	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
2	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
3	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
4	Locknut (1/4-20)	1	6
2	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
3	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
4	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
5	Locknut (1/4-20)	1	6
10	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
11	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
12	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
13	Locknut (1/4-20)	1	6
2	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
3	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
4	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
5	Locknut (1/4-20)	1	6
5	Locknut (1/4-20)	1	6
2	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
3	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
4	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
	Locknut (1/4-20)	1	6
2	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
3	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
4	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
5	Locknut (1/4-20)	1	6
2	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
3	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
4	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
5	Locknut (1/4-20)	1	6
	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
2	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
3	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
4	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
5	Locknut (1/4-20)	1	6
2	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
3	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
4	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
5	Locknut (1/4-20)	1	6
1	Screw, Hex Head (1/4-20 x 1-5/8")	1	2
2	Screw, Hex Head (1/4-20 x 1-1/2")	1	4
3	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4
4	Locknut (1/4-20)	1	6

NLA - Kit, Seat Pan Mounting Hardware

N/A

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2-5

Catalog Literature

Parts Books for Formula™ Invisible Super Low™ Tilt
