Arms - Adj. Height - ASBA Seats (12-13" W x 12-15" D) (14-15" W x 12-22" D) & ADJASBA Seats (12-16" W x 12-18" D)

Print this page

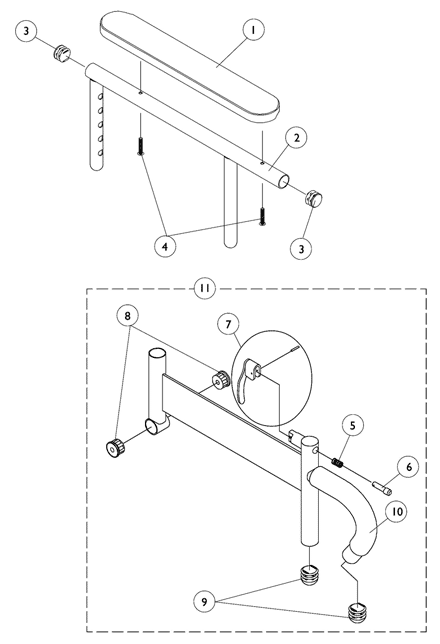

Arms, Adjustable Height

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	8881015932	NLA - Pad, Arm, Vinyl, Full Length - Right (14" L x 2" W)	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	8881015933	NLA - Pad, Arm, Vinyl, Full Length - Left (14" L x 2" W)	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	8881053577	Kit, Arm Pad w/ Screws, Full Length (14" L x 2" W) (Pair)	2	1	$53.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	8881011811	NLA - Pad, Arm, Vinyl, Desk Length (9" L x 2" W)	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	8881053578	Kit, Arm Pad w/ Screws, Desk Length (9" L x 2" W) (Pair)	2	1	$53.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1071263	Arm Tube Assembly w/ Plug Buttons, Full Length, Black - Right/Left	1	1	$53.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1071259	Arm Tube Assembly w/ Plug Buttons, Desk Length, Black - Right/Left	1	1	$53.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1027095	Plug Button, Black (7/8")	1	2	$9.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1055949	Package, Screw, Phillips Pan Head (#10-32 x 1-3/8")	2	1	$13.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	47471X074	Spring, Arm Lock	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1028594	Pin, Arm Lock, Black	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1090768	Kit, Lock Handle w/Rivets (Pair)	2	1	$16.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1065936	Plug, Pivot	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1067734	Plug Button, Black (5/8")	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1016298	Grip, Push Handle	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1068585	Arm Base Assembly, Adjustable Height, Black - Right	1	1	$94.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1068586	Arm Base Assembly, Adjustable Height, Black - Left	1	1	$94.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Specify upholstery color when ordering. See page titled Frame Finishes, Touch-Up Paints and Upholstery Options
