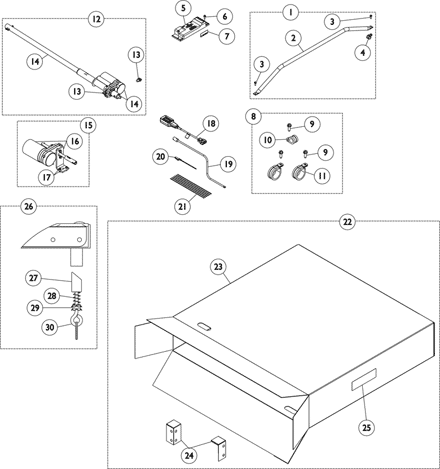

16. Foot Spring - Full Electric (BAR5490IVC)

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1132527

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
3	Screw, Slotted Hex Head Tap (1/4-20 x 3/4")	1	2
4	Clamp, Cable, Steel (9/16")	1	1
2	Guard, Motor	1	1

Kit, Motor Guard Replacement - Foot End

$33.00

Create/add to Wishlist

1106398

NLA - Control/Junction Box, Full Electric, (6 Function)

N/A

Create/add to Wishlist

1104343

Kit, Control/Junction Box, Full Electric, (6 Function) - US / Canadian Models, Low Voltage Square Plug

$403.00

Create/add to Wishlist

54000M515

Screw, Slotted Hex Head Tap (1/4-20 x 3/4")

$9.00

Create/add to Wishlist

1108103

Label, Warning, Control/Junction Box

$10.00

Create/add to Wishlist

1132529

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
9	Screw, Slotted Hex Head Tap (1/4-20 x 3/4")	1	5
11	Clamp, Cable, Steel (9/16")	1	3
9	Screw, Slotted Hex Head Tap (1/4-20 x 3/4")	1	6
10	Clamp, Cable, Steel (9/16")	1	2
10	Clamp, Cable, Steel (9/16")	1	6

Kit, Cable Clamp w/ Hardware, Both Head and Foot Ends

$30.00

Create/add to Wishlist

1132532

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
14	Motor, Foot with Pull Tube and Hardware	1	1
13	Mount, Motor	1	2

NLA - Kit, Foot Motor Assembly

N/A

Create/add to Wishlist

5300M054

Mount, Motor

$14.00

Create/add to Wishlist

5600M008

Motor, Foot with Pull Tube and Hardware

$875.00

Create/add to Wishlist

1132750

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
16	Motor, Hi/Lo with Bracket	1	1
	Screw, Slotted Hex Head Tap (1/4-20 x 3/4")	1	1
	Motor, Hi/Lo with Bracket	1	1
17	Screw, Slotted Hex Head Tap (1/4-20 x 3/4")	1	1

Kit, Hi/Lo Motor Assembly

$477.00

Create/add to Wishlist

51000M533

Bracket, Hi-Lo Motor

$8.00

Create/add to Wishlist

7001M297

Pendant, Full Electric, 6 Channel

$154.00

Create/add to Wishlist

5880M004

Crank, Emergency, Dark Brown

$20.00

Create/add to Wishlist

54000M441

Clip, Pendant

$9.00

Create/add to Wishlist

52000M316

NLA - Kit, Pendant Clip w/ Instruction Sheet

N/A

Create/add to Wishlist

51000M562

NLA - Tie Wrap

N/A

Create/add to Wishlist

1132540

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
24	Pad, Corner	1	2
23	Carton, Footspring	1	1
25	Label, Blank Carton	1	1

Kit, Packaging - Foot End

$117.00

Create/add to Wishlist

1132530

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
29	Clip, Retaining	1	2
27	Pin, Locking	1	2
30	Eyebolt with Split Ring (#10-24 x 2")	1	2
28	Spring, Compression (31/64 x 7/8 x 1/8")	1	2

Kit, Locking Mechanism - Foot End

$51.00

Create/add to Wishlist

1125306

Connector, Crossover

$76.00

Create/add to Wishlist

026874

Cord, Power

$35.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes: Items 2-4
B	Includes: Items 9-11
C	Includes: Items 13-14. Kit Part Number NLA. Order items 13 and 14 individually.
D	Includes: Items 16-17
E	Includes: Items 23-25
F	Includes: Items 27-30
G	Not shown
H	An instruction sheet for the Pendant Clips (Part. No. 54000M181) is available to download at invacare.com under "Product Literature Search" link.
I	No longer available. See part #1104343 as its replacement. Includes the Control/Junction Box and Installation Instruictions.

Catalog Literature

Parts Books for Homecare Beds (Manual, Semi-Electric, Full Electric)
