Arms - Arm Attaching Hardware (After 6/23/99)

Print this page

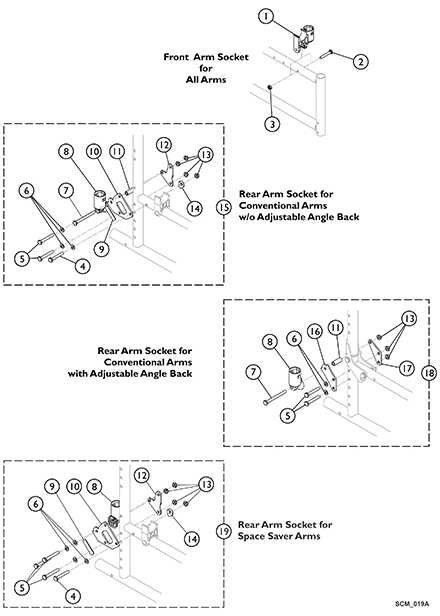

Arms - Arm Attaching Hardware - After 6/23/99

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1056405	NLA - H-Block with Socket Cup	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1055347	NLA - Screw, Hex Head (1/4-28 x 1-1/2")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1025765	Locknut (1/4-28)	1	2	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1055347	NLA - Screw, Hex Head (1/4-28 x 1-1/2")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1055298	Screw, Hex Head (1/4-28 x 1-5/8")	1	6	$8.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1026907	Washer (1/4 x 1/2 x 1/16")	1	8	$7.20	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1087220	NLA - Screw, Hex Head (1/4-28 x 2-5/8")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1056406	Cup, Socket Pivot	1	2	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1089569	NLA - Label, Bracket Warning	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1086663	NLA - Bracket, Armrest, Outside Mounting	1	1	N/A	G ,H	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1087219	Spacer (1/4 x 3/8 x 1")	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1092642	Bracket, Armrest, Inside Mounting	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1025765	Locknut (1/4-28)	1	8	$7.20	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1026099	Spacer, Coved (1/4 x 11/16 x 1/2")	1	2	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	1087094	NLA - Kit, Arm Mounting Hardware, Conventional (Pair)	2	1	N/A	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	1127074	NLA - Bracket, Armrest, Outside Mounting, Black	1	2	N/A	I	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
17	1127073	NLA - Bracket, Armrest Mounting (Inside)	1	2	N/A	I	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
18	1127079	NLA - Kit, Arm Mounting Hardware - Conventional Arm	2	1	N/A	E	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
19	1087095	NLA - Kit, Arm Mounting Hardware - Space Saver Arm	2	1	N/A	F	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	4 ea. are required for Conventional Arms.
B	6 ea. are required for Conventional Arms w/o adj. angle back. 4 ea. are required for Conventional Arms with adj. angle back.
C	6 ea. are required for Conventional Arms with adj. angle back.
D	Chairs without adjustable angle back. Includes items 4-14.
E	Chairs with adjustable angle back. Includes items 5-8, 11,13,16, & 17.
F	Includes items 4-6, 8-10, 12-14.
G	When ordering this bracket, item 9 (Warning Label) must also be ordered.
H	No Longer Available.
I	No Longer Available individually. See Kit # 1127079 for replacement.
