Arms - Arm Attaching Hardware (Before 6/24/99)

Print this page

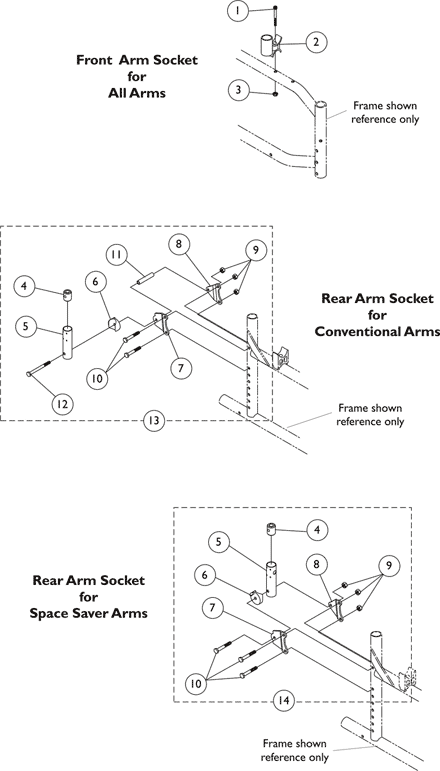

Arms - Arm Attaching Hardware - Before 6/24/99

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1059251	NLA - Screw, Socket Head (1/4-28 x 1-1/2")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1038129	NLA - Socket, Arm, Front	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1025765	Locknut (1/4-28)	1	2	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1068015	NLA - Support, Post, Arm	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1015856	Socket, Armrest	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1015426	Spacer, Coved Cam - Right	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1015427	Spacer, Coved Cam - Left	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1038131	NLA - Bracket, Armrest, Outside Mounting, Black	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1038132	NLA - Bracket, Armrest, Inside Mounting, Black	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1065362	Locknut (1/4-28)	1	6	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1055298	Screw, Hex Head (1/4-28 x 1-5/8")	1	6	$8.00	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1028553	NLA - Spacer (1/4 x 3/8 x 3/4")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1055351	NLA - Screw, Hex Head (1/4-28 x 2-1/2")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1038197	NLA - Kit, Arm Mounting Hardware, Conventional (Pair)	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1038196	NLA - Kit, Arm Mounting Hardware, Space Saver (Pair)	1	1	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	4 ea. required for Conventional Arms.
B	Includes items 4-12
C	Includes items 4-10
