Back Canes & Adjustable Angle Back Hardware

Print this page

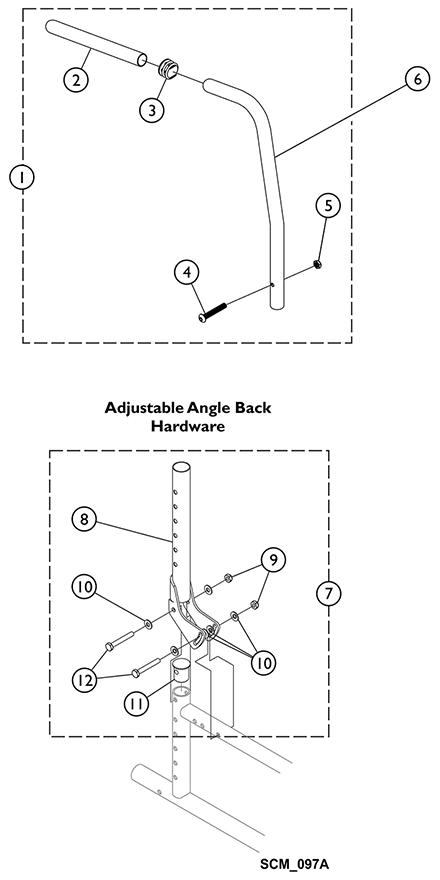

Back Canes and Adjustable Angle Back Hardware

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1052784

NLA - Back Cane w/ Hardware, 10 Degree Bend - Right/Left (16" H)

N/A

Create/add to Wishlist

1052785

NLA - Back Cane w/ Hardware, 10 Degree Bend - Right/Left (18" H)

N/A

Create/add to Wishlist

1052786

NLA - Back Cane w/ Hardware, 10 Degree Bend - Right/Left (20" H)

N/A

Create/add to Wishlist

1044924

NLA - Back Cane w/ Hardware, 10 Degree Bend - Right/Left (20" H)

N/A

Create/add to Wishlist

1027848

Back Cane w/ Hardware, 10 Degree Bend - Right/Left (14-18" H)

$72.00

Create/add to Wishlist

1044031

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
	NLA - Back Cane, Straight w/ Push Handle	1	1
	Grip, Foam (8")	1	1
	Screw, Socket Button Head (1/4-20 x 1-1/4")	1	1
	Locknut (1/4-20)	1	1
	Screw, Socket Button Head (1/4-20 x 1-1/4")	1	1
	Locknut (1/4-20)	1	1
21	Grip, Foam (8")	1	1
22	NLA - Back Cane, Straight w/ Push Handle	1	1
24	Screw, Socket Button Head (1/4-20 x 1-1/4")	1	1
25	Locknut (1/4-20)	1	1
	NLA - Back Cane, Straight w/ Push Handle	1	1
	Grip, Foam (8")	1	1
	NLA - Back Cane, Straight w/ Push Handle	1	1
	Grip, Foam (8")	1	1
	Screw, Socket Button Head (1/4-20 x 1-1/4")	1	1
	Locknut (1/4-20)	1	1

NLA - Back Cane w/ Hardware, Straight w/ Push Handle (14-18" and 16-20" H)

N/A

Create/add to Wishlist

1006229

Grip, Foam (8")

$8.00

Create/add to Wishlist

1027097

Plug Button, Black (3/4")

$7.50

Create/add to Wishlist

1008432

Screw, Socket Button Head (1/4-20 x 1-1/4")

$9.20

Create/add to Wishlist

1025195

Locknut (1/4-20)

$9.00

Create/add to Wishlist

1042975

NLA - Cane, Back, 10 Degree Bend (20" High)

N/A

Create/add to Wishlist

1042370

NLA - Back Cane, Straight w/ Push Handle

N/A

Create/add to Wishlist

1026295

Kit, Back Cane Hardware (Pair)

F ,G

Create/add to Wishlist

1127078

NLA - Kit, Adjustable Angle Back Tubes with Hardware

N/A

H ,I

Create/add to Wishlist

8881063914

NLA - Bracket, Adjustable Angle Back Tube, Color

N/A

Create/add to Wishlist

60275X000

Locknut (1/4-20)

$10.00

Create/add to Wishlist

16348X009

NLA - Washer, Steel (3/16 x 9/16 x 1/16")

N/A

Create/add to Wishlist

1127072

NLA - Plug Button (1")

N/A

Create/add to Wishlist

1013046

NLA - Screw, Hex Head (1/4-20 x 1-3/4")

N/A

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Non-Adjustable Back (Before 6/95)
B	Non-Adjustable Back (After 5/95)
C	Adjustable Back Height 14 - 18".
D	Adjustable Back Height 14 - 18" and 16" - 20".
E	No Longer Available as a service part. For Chairs manufactured before 10/6/95, order 1044031 (2) Back Cane.
F	Kit includes items 1 - 4 (Pair).
G	Not Shown in the illustration.
H	Kit Includes items 8 - 12, enough for both sides.
I	Specify frame finish when ordering, please use Configurator Button to select this item.

Catalog Literature

Parts Books for Patriot®
