Frames & Hardware (After 6/23/99)

Print this page

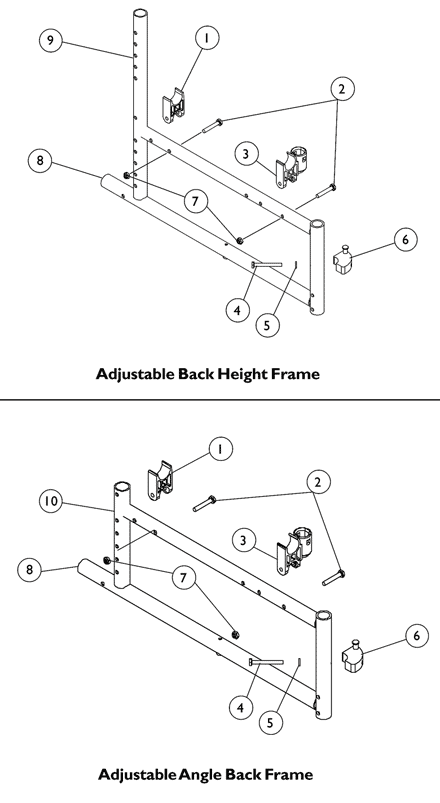

Frames and Hardware - After 6/23/99

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1056948	Guide, Seat	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1055347	NLA - Screw, Hex Head (1/4-28 x 1-1/2")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1056405	NLA - H-Block with Socket Cup	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1052957	Screw, Hex Head w/ Patch (1/4-20 x 2")	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1026907	Washer (1/4 x 1/2 x 1/16")	1	1	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1054571	Kit, Sector Block - Right	1	1	$19.00	A ,B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1054572	Kit, Sector Block - Left	1	1	$19.00	A ,B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1025765	Locknut (1/4-28)	1	2	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1013869	Cap, End, Tube, Black (1")	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	8881086832	Frame w/o Hardware, Color - Right (16" D)	1	1	$175.00	B ,C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	8881086833	Frame w/o Hardware, Color - Left (16" D)	1	1	$175.00	B ,C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	8881086834	Frame w/o Hardware, Color - Right (18" D)	1	1		B ,C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	8881086835	Frame w/o Hardware, Color - Left (18" D)	1	1	$175.00	B ,C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	8881127076	Frame w/o Hardware, Color - Right (16" D)	1	1		B ,D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	8881127077	Frame w/o Hardware, Color - Left (16" D)	1	1		B ,D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	8881127080	NLA - Frame w/o Hardware, Color - Right (18" D)	1	1	N/A	B ,D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	8881127081	NLA - Frame w/o Hardware, Color - Left (18" D)	1	1		B ,D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes items 4 and 5
B	Specify frame finish, see page titled "Frame Finishes and Touch-up Paint"
C	Adjustable Back Height Frame
D	Adjustable Angle Back Frame

Catalog Literature

Parts Books for Patriot®
