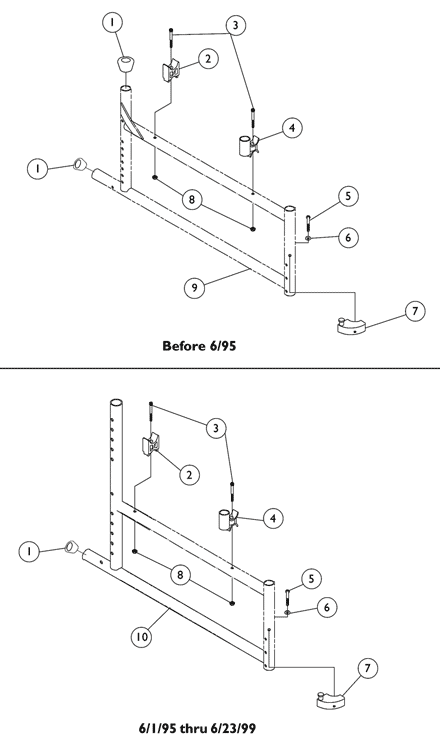

Frames and Hardware - Before 6/24/99

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	15680X013	Anti-Rattle (1")	1	2	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1037351	NLA - Guide, Seat	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1059251	NLA - Screw, Socket Head (1/4-28 x 1-1/2")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1038129	NLA - Socket, Arm, Front	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1052957	Screw, Hex Head w/ Patch (1/4-20 x 2")	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1026907	Washer (1/4 x 1/2 x 1/16")	1	1	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1054571	Kit, Sector Block - Right	1	1	$19.00	B ,A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1054572	Kit, Sector Block - Left	1	1	$19.00	B ,A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1025765	Locknut (1/4-28)	1	2	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	8881038582	NLA - Frame w/o Hardware, Color - Right (16" D)	1	1	N/A	B ,C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	8881038583	NLA - Frame w/o Hardware, Color - Left (16" D)	1	1	N/A	B ,C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	8881053371	NLA - Frame w/o Hardware, Color - Right (16" D)	1	1	N/A	B ,D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	8881053372	NLA - Frame w/o Hardware, Color - Left (16" D)	1	1	N/A	B ,D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	8881053336	NLA - Frame w/o Hardware, Color - Right (18" D)	1	1	N/A	B ,D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	8881053337	NLA - Frame w/o Hardware, Color - Left (18" D)	1	1	N/A	B ,D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes items 5 and 6
B	Specify frame finish, see page titled "Frame Finishes and Touch-up Paint"
C	Before 6/95
D	6/1/95 thru 6/23/99
